TekBox TBTC3

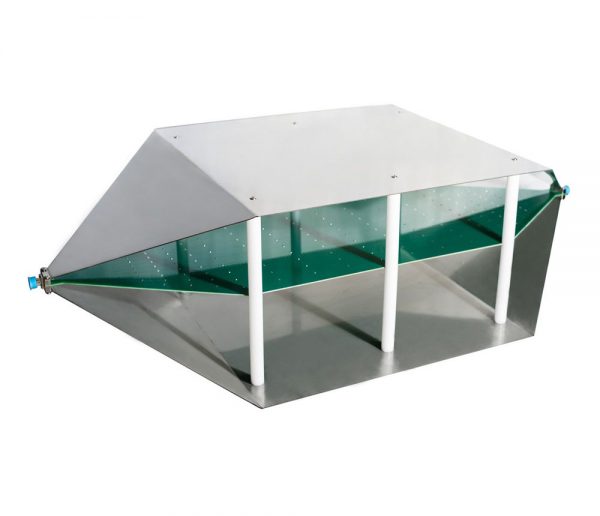

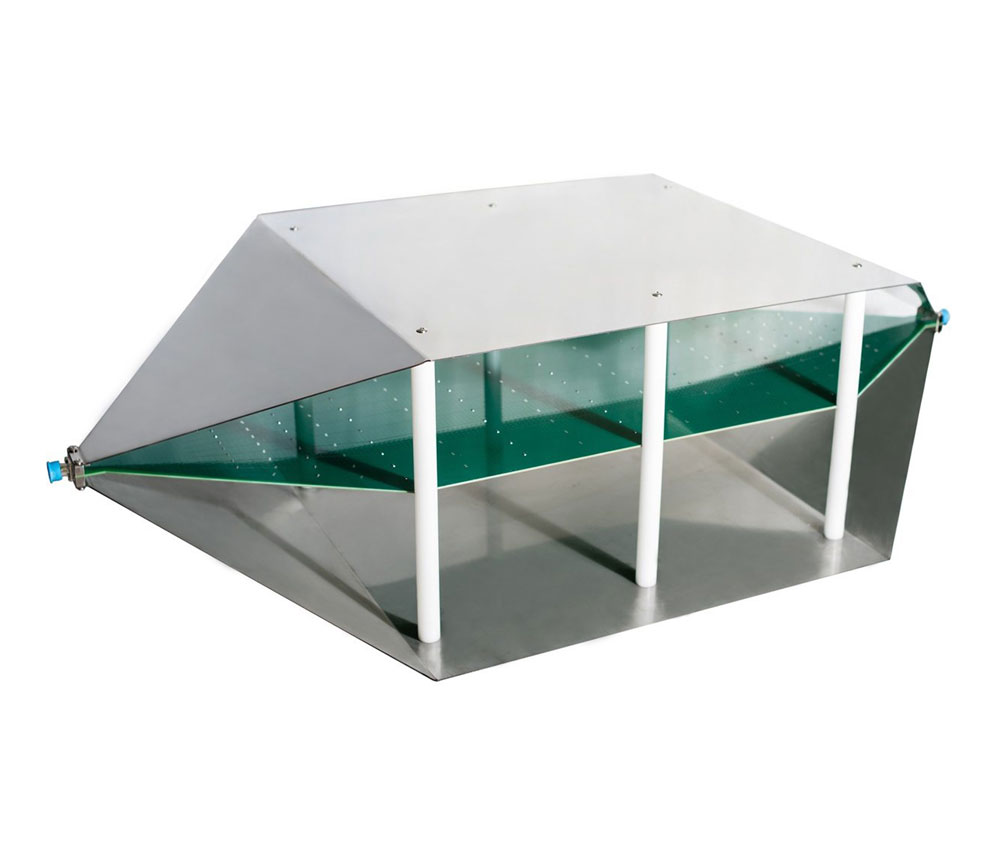

The L-version of the Tekbox TEM-cell, recommended for DUTs up to 300 x 300 x 100 mm and frequencies up to 700 MHz.

2 years warranty

129,690.00 117,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

Specifications TBTC3
dimension (L x B x H) 1038 x 501 x 305 mm
Rectangular area under the septum 360 x 480 mm
Septum height 150 mm
Maximum volume of the test piece (L x B x H) 300 x 300 x 100 mm
Interfaces of TEM-Cell N-socket
Nominal cell impedance 50 Ω
Impedance 377 Ω
Maximum RF input power 25 W
Input reflection factor* S11 up to 700 MHz < -16 dB
Forward transmission factor* S21 (Insertion) up to 730 MHz: < 3 dB
