Description
| Specification | TBGTC1 |
|---|---|
| Outer dimensions (L x W x H) | 1452 x 780 x 520 mm |
| Septum Height: | 250 mm at the location of the EUT-board |
| Maximum EUT size (L x W x H) | 200 x 200 x 150 mm |
| GTEM cell connectors | N-Type |
| Nominal cell impedance | 50 Ω |
| Wave impedance | 377 Ω |
| Frequency range | 0.009 MHz – 6 GHz |
| Maximum continuous RF input power | 600 W |
| VSWR | 1:1,3 typical, 1:1,9 max |
| Field uniformity on maximum test volume | upto 3 GHz < ± 6 dB |
Products can be examined for radiated emissions and immunity before and after EMC-related design changes using a spectrum analyzer with tracking generator, modulated power amplifier, and EMCview software.
The engineer can easily validate whether his changes improved or harmed the EMC performance, or if it stayed unaltered. The use of GTEM cells eliminates the need for guesswork.

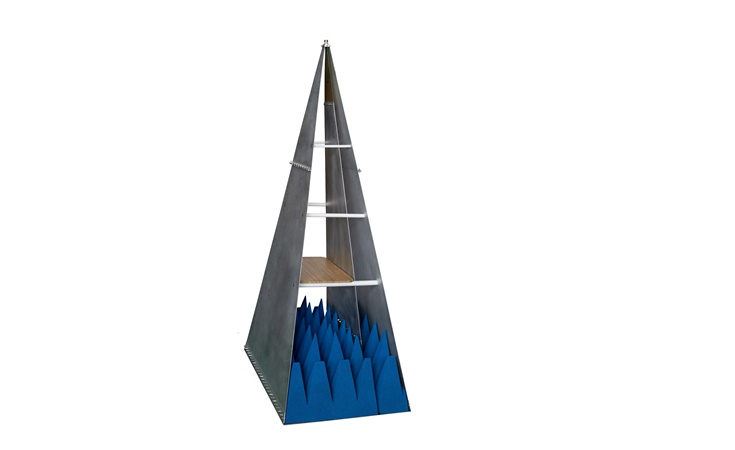

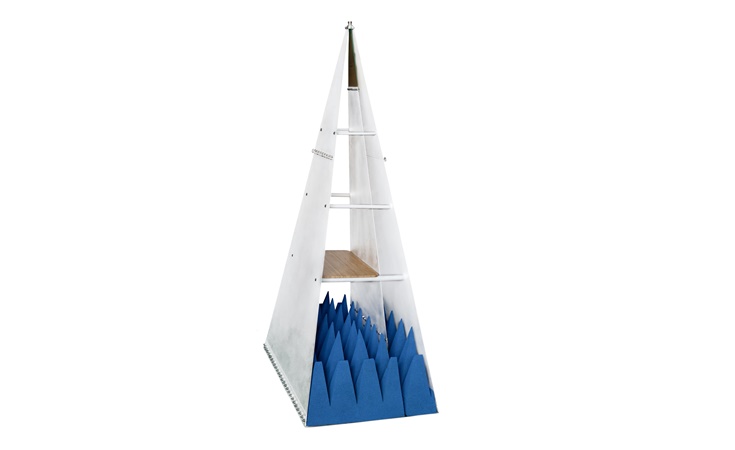

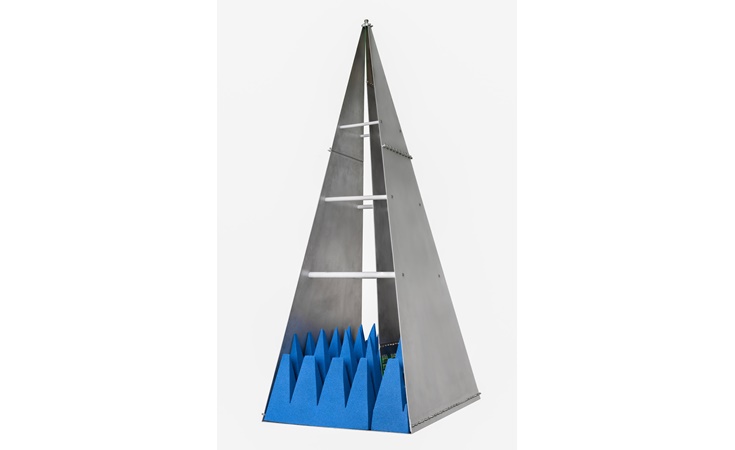

When positioned vertically, the TBGTC1 requires just an area of 78 cm × 52 cm. The EUT can be conveniently placed on a supplied wooden board that rests on the GTEM-cell spacers.
Optional: shielded tent TBST-100/100/200
Construction:
- two layers of conductive silver fabrics
- access opening with conductive Velcro
- aluminium frame
- ambient noise suppression: up to 50 dB in the range 10 MHz to 6 GHz
