EMC Pre-compliance Solutions

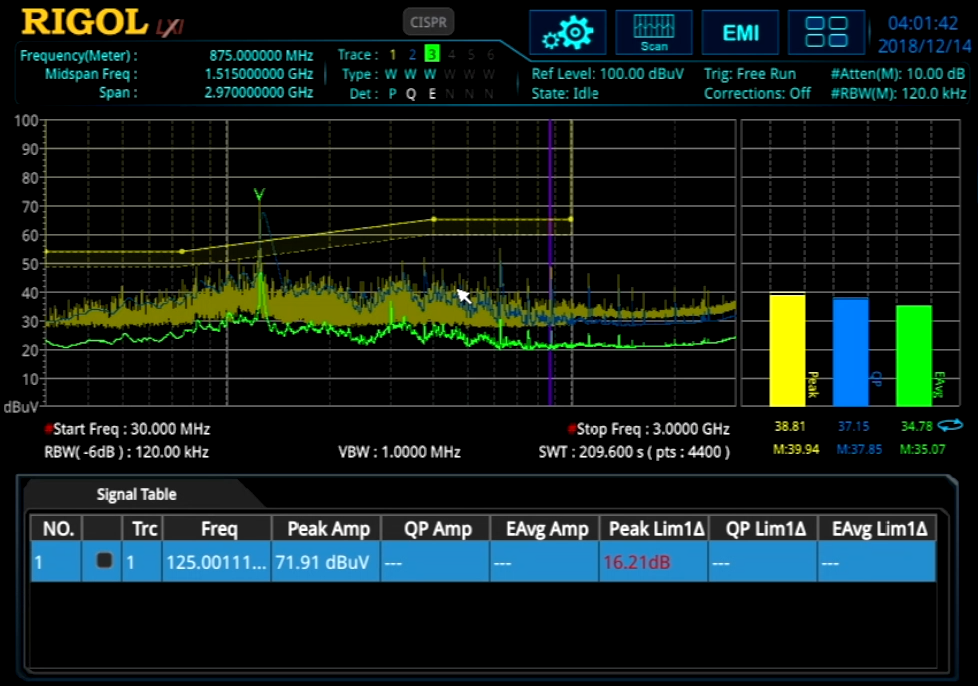

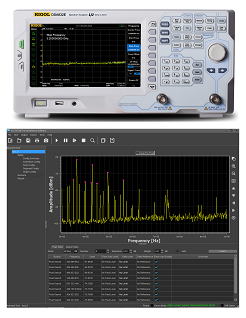

EMI Measurement Application



RIGOL’s EMI Measurement Application provides a complete EMI PreCompliance Solution with scans, peak tests, limits, and multiple simultaneous CISPR detectors. With the EMI Measurement Mode engineers can compare, analyze, and report on EMI issues throughout their design process.

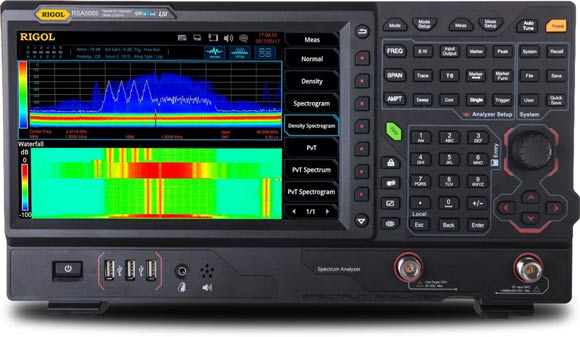

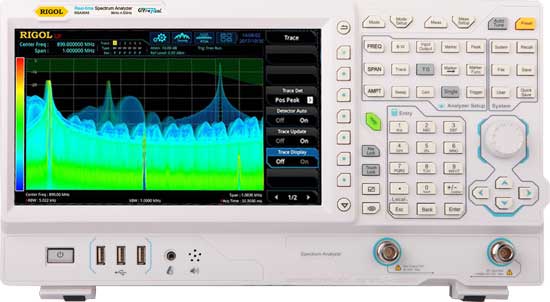

The EMI Measurement Application can be added to any RSA Family Real-Time Spectrum Analyzer.

Benefits of the EMI Measurement Application



Expanded capabilities within RSA Series Spectrum Analyzers

• Built in CISPR bandwidths and detectors

• Automated scans of multiple segments

• Limit Lines and automated peak/limit searches

• Up to 3 traces with different detectors

• Log Frequency Display

• Live measurements with 3 detectors at marker or signal

• Corrections for antennas, LISNs, cables, and preamps

• Report Generation
