TekBox TBST-200/100/100

Code: TBST-200/100/100

Tekbox TBST-200/100/100 EMC shielding tent is the ideal complement to your EMC pre-compliance test with Tekbox TEM-cells TBTC3. Dimensions: 204 x 104 x 100 cm.

888,190.00 739,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

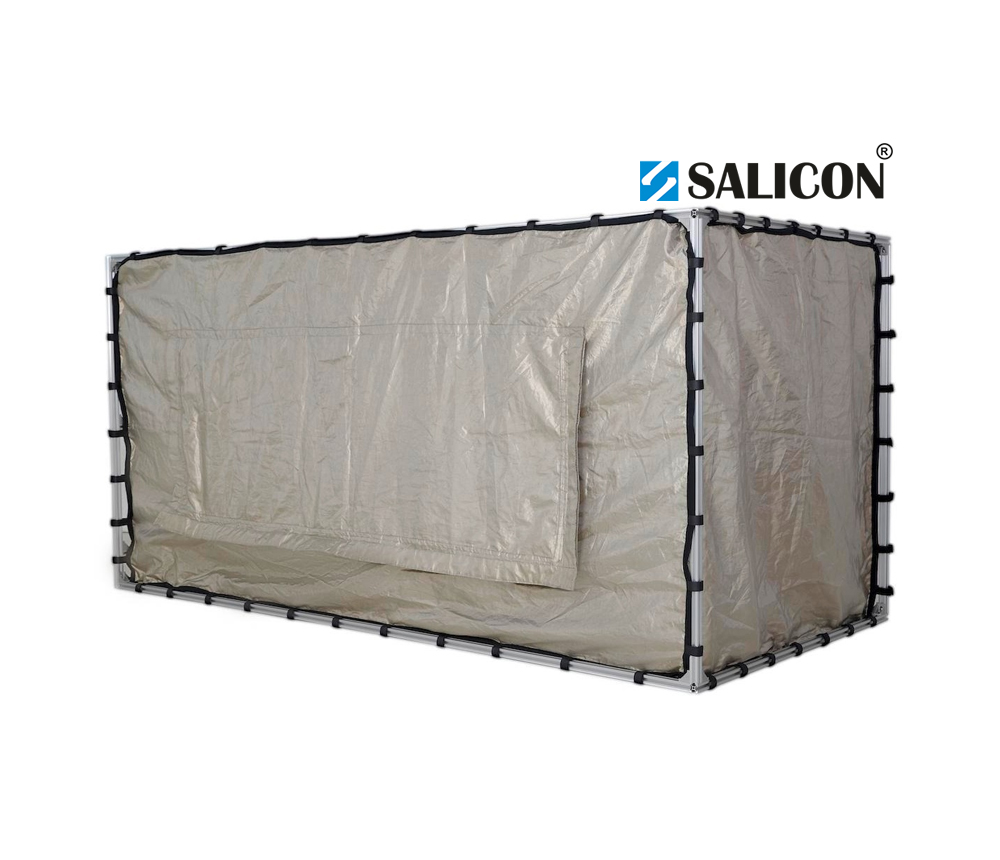

The TBST-200/100/100 shielded tent is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements. The TBST- 200/100/100 has a size of 200 cm x 100 cm x 100 cm. The tent can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells.

The shielded tent is composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A mains AC filter, two general purpose 240V/10A AC/DC filters and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape.

Specifications:

  • Outer dimensions: 204 cm x 104 cm x 100 cm
  • Opening dimensions: 130 cm x 46 cm
  • Attenuation: ~50 dB in the range 10 MHz to 6 GHz
  • Frame: 20 mm x 20mm extruded aluminium profiles
  • Shielding: 2 layers of conductive fabrics
  • Seal: conductive Velcro tape
  • Suspension: Velcro stripes
  • Weight: 17 kg

The setup requires a Phillips screwdriver, a 2 mm Allen key and some time (>= 1 hour).
