Description
- Frequency range: 40 MHz..3 GHz
- Gain: typ. 14 dB
- Maximum input power: +20 dBm
- Maximum output power: +22 dBm (150 mW)
- IP3 (OIP3): +40 dBm
- Noise: typ. 3..4 dB
- Input + Output: SMA connectors (female)
- Power supply: 5 V, 115 mA (Mini-USB-B)

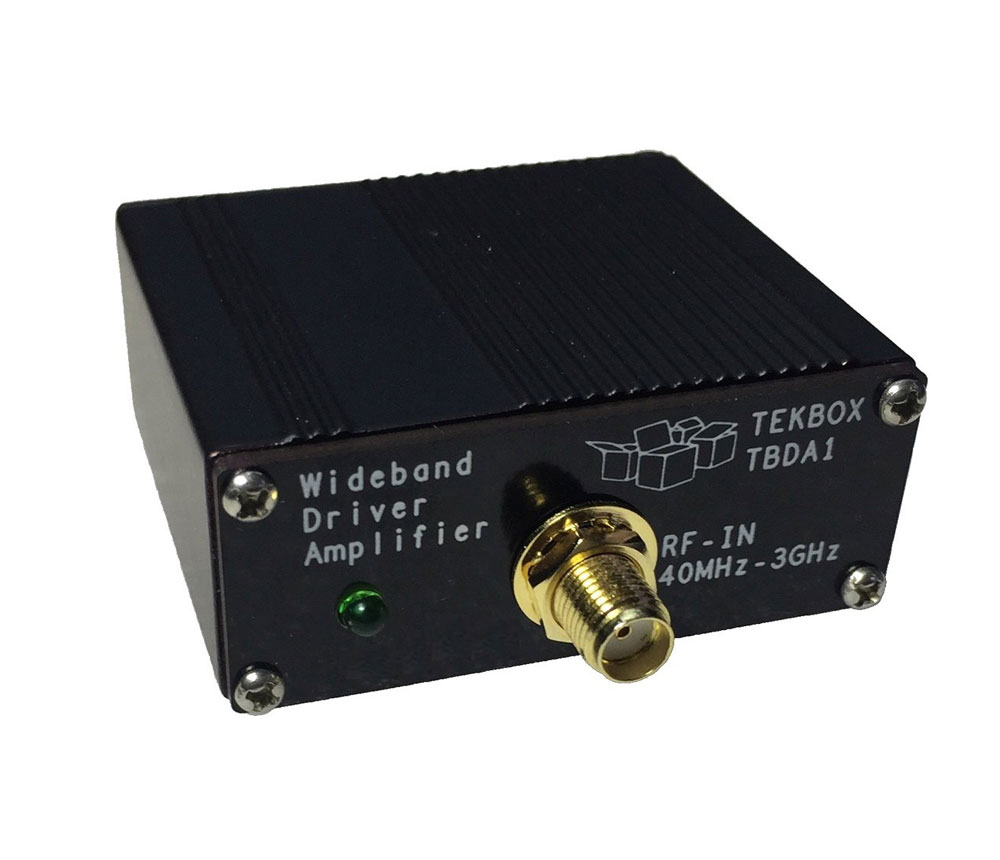

TekBox TBDA1/14
