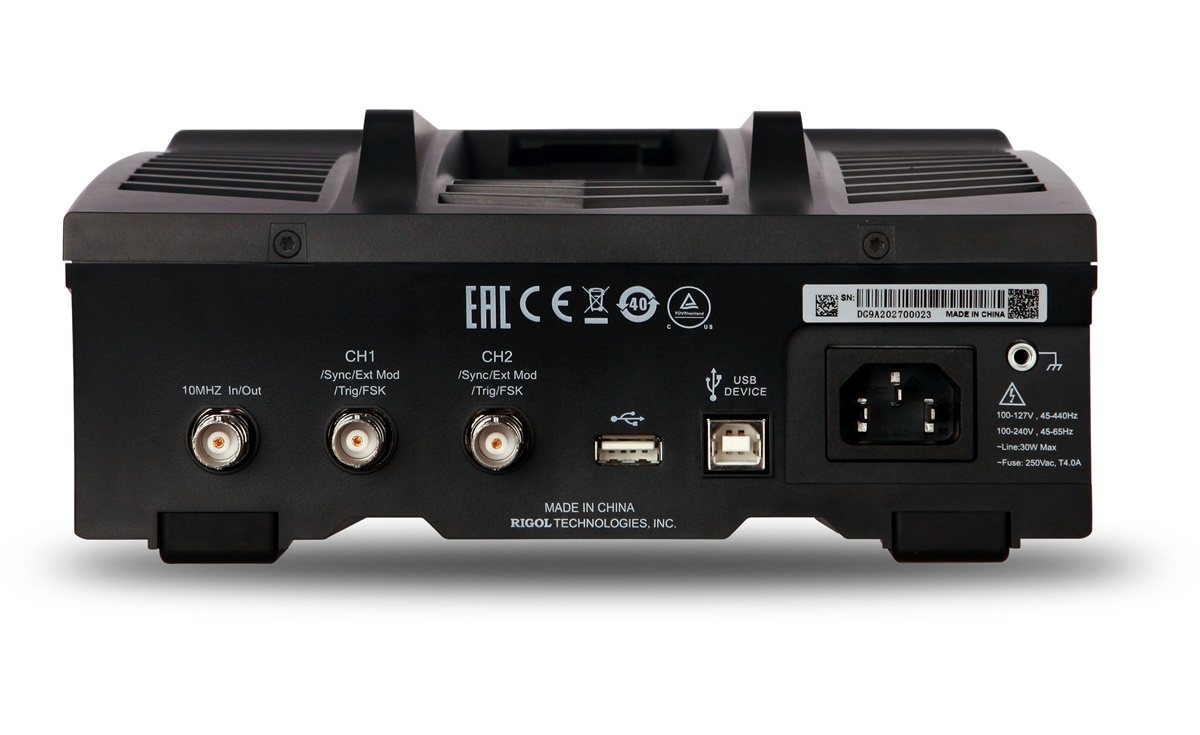

Rigol DG992

Code: DG992

High quality two channel function / arbitrary waveform generator with 100 MHz bandwidth, 250 MSa/s and 16 Mpts memory.

3 years warranty

103,990.00 86,990.00

1 in stock (can be backordered)

1 in stock (can be backordered)

Description

Engineers and students who require high signal fidelity in a reliable and capable waveform generation need look no further than the DG900 Series generators. With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts the DG900 reproduces any waveform with high signal fidelity. SiFi II adds additional filtering capabilities making this one of the most flexible generators on the market.

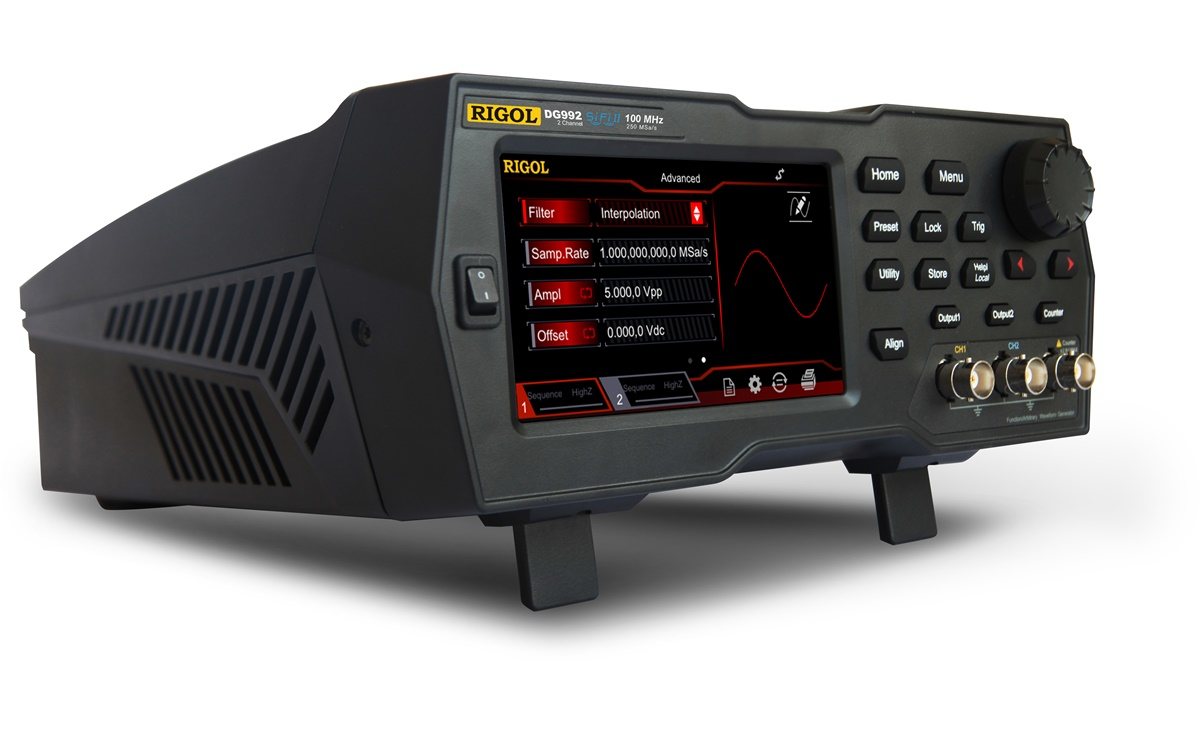

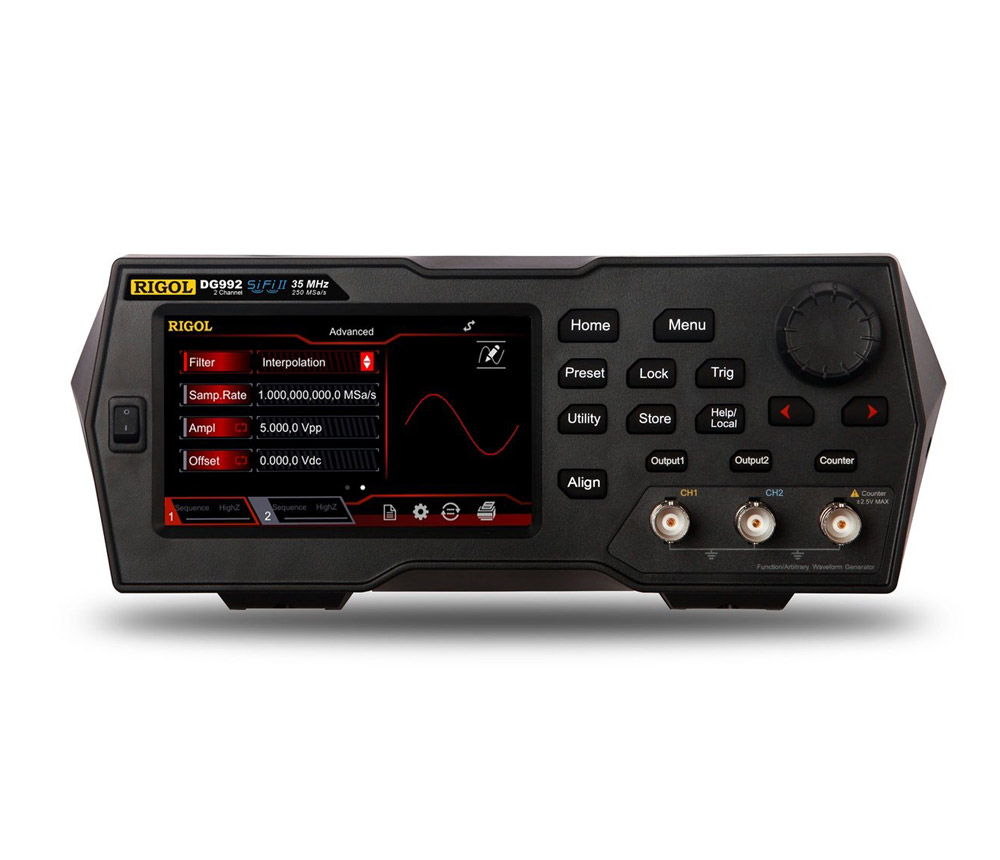

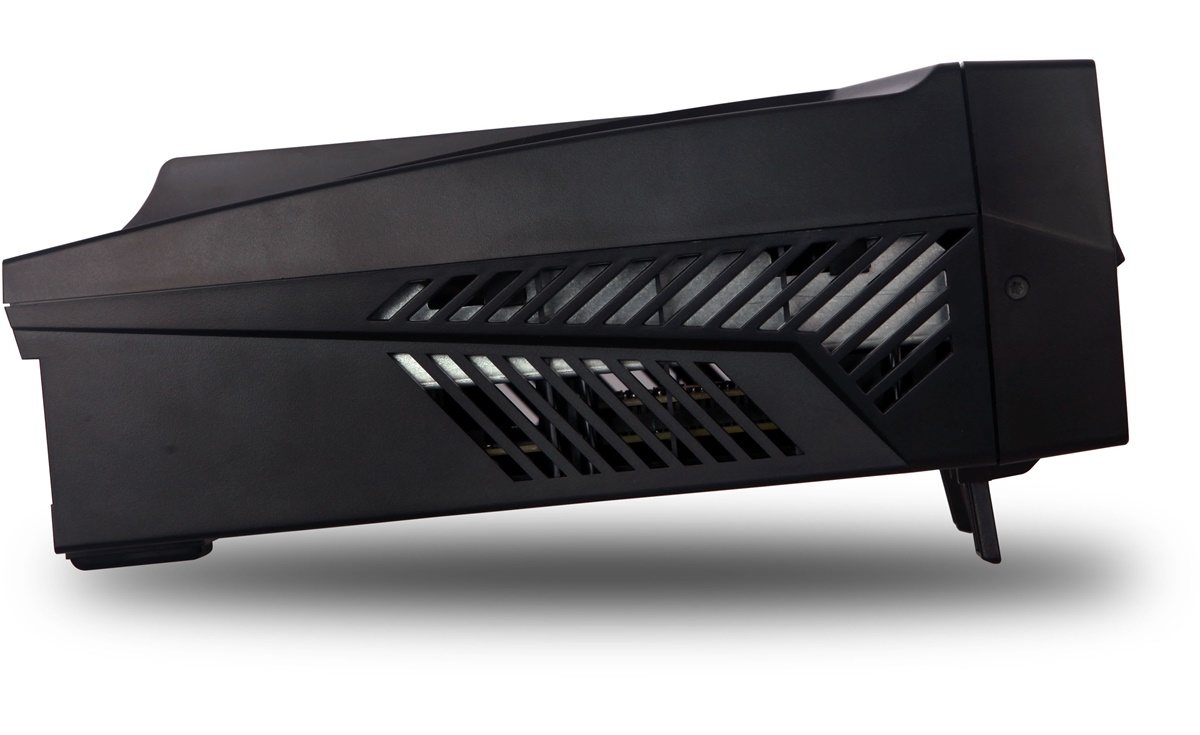

The intuitive touchscreen control and compact fanless design make it the perfect choice for your desk, bench, or lab.

Model DG952 DG972 DG992
Max. Frequency 50 MHz 70 MHz 100 MHz
Resolution 1 µHz 1 µHz 1 µHz
Sample rate 250 MSa/s 250 MSa/s 250 MSa/s
vertical resolution 16 bits 16 bits 16 bits
Max Amplitude 2.5 Vpp < 60 MHz 1 Vpp < 60 MHz 1 Vpp < 60 MHz
Frequency Counter up to 240 MHz up to 240 MHz up to 240 MHz
Channels 2 2 2

Downloads

Datasheet


DG900 Data sheet

Language: English
File Size: 4.37 MiB
Release Date: 27.12.2018

Manual


DG900 Manual

Language: English
File Size: 1.71 MiB
Release Date: 27.12.2018

DG900 Quick Guide

Language: English
File Size: 2.31 MiB
Release Date: 27.12.2018
