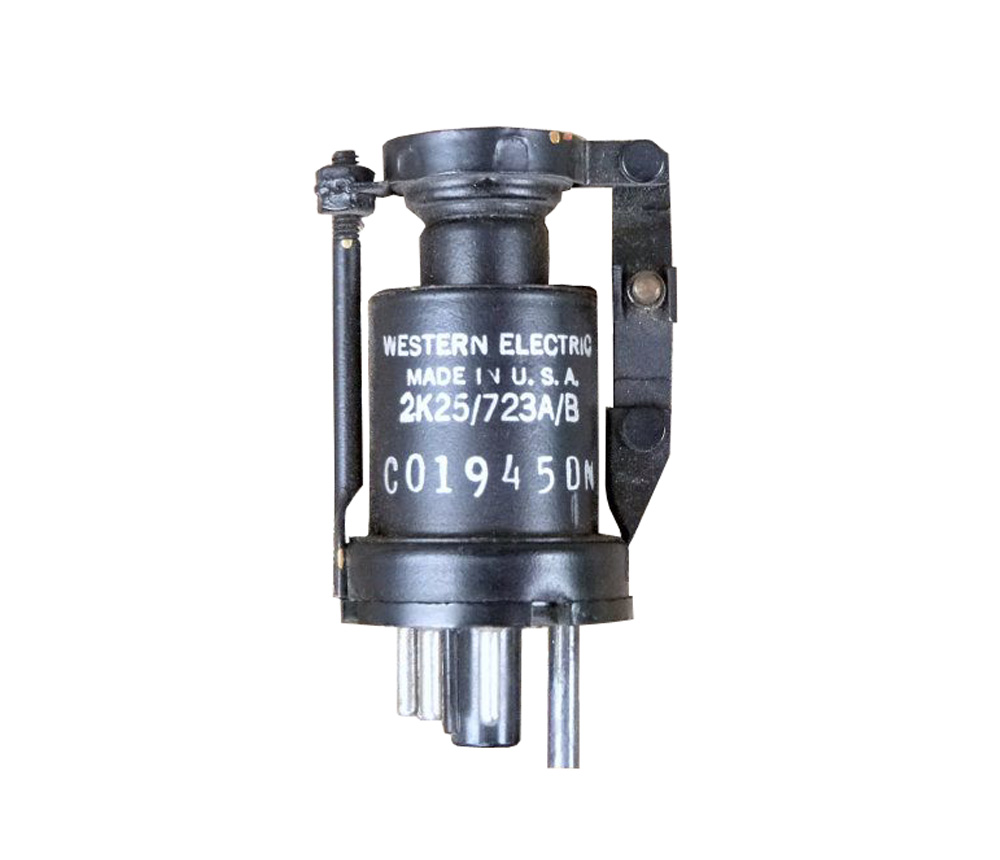

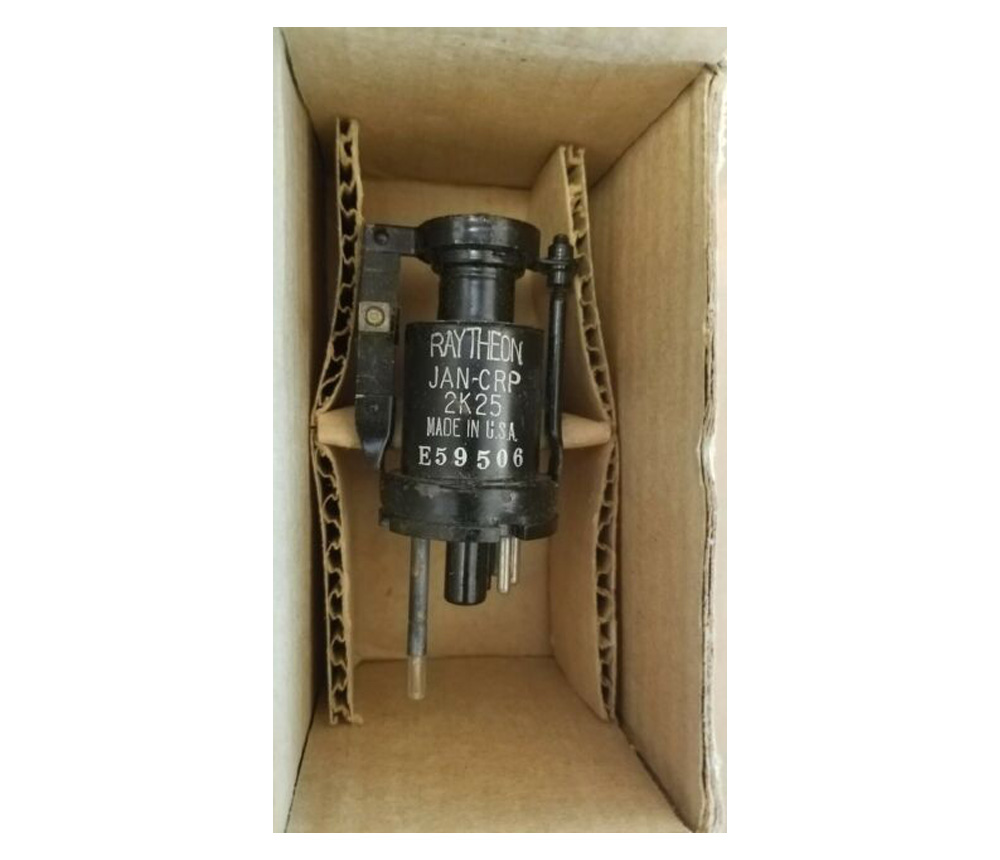

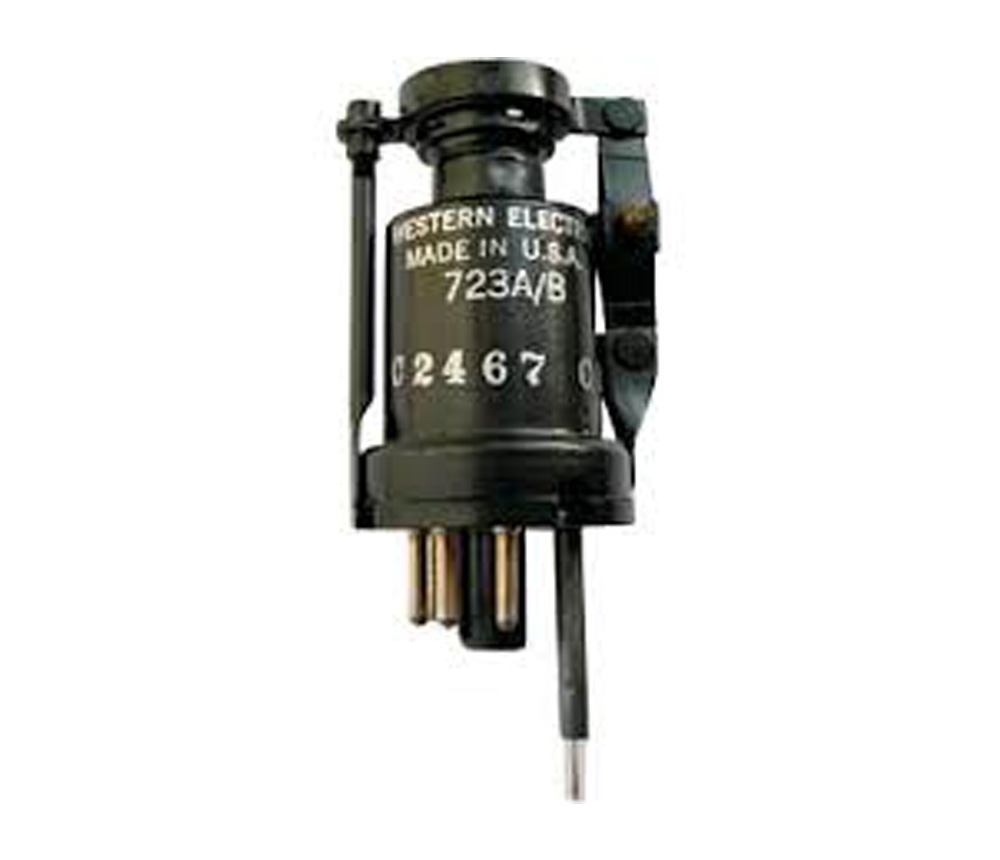

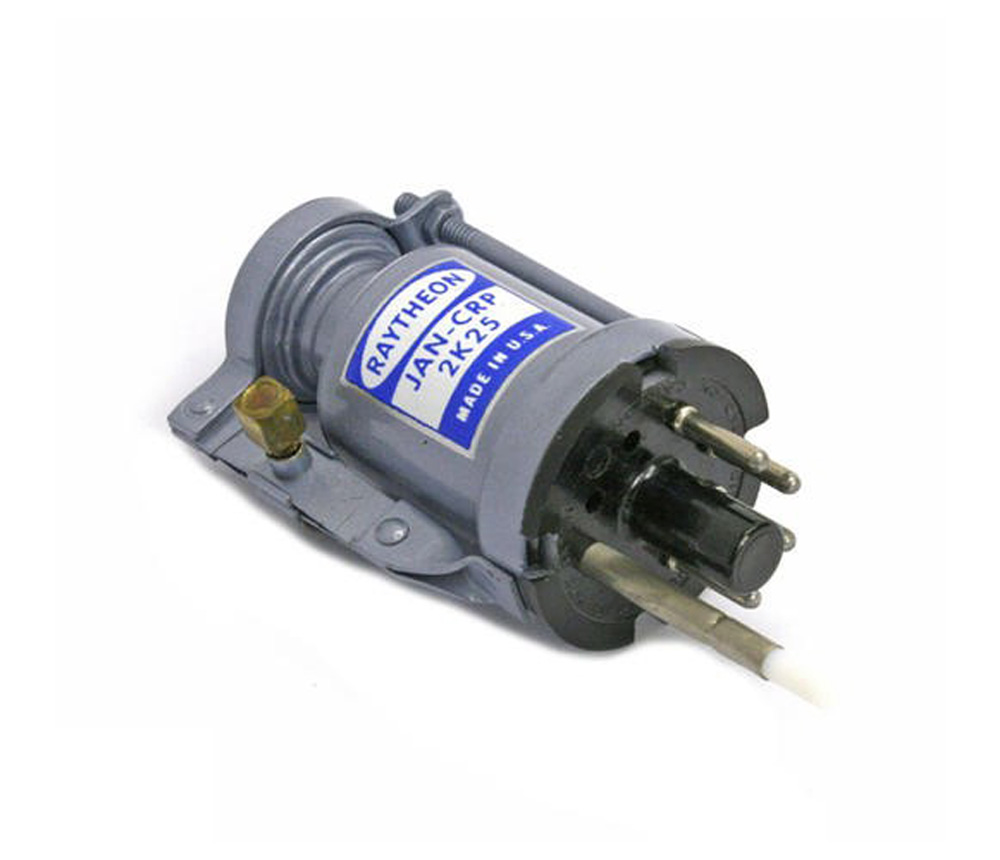

This cavity reflex klystron tube, the 2K25 or 723A/B (also called a Shepard tube design) was the heart of X-band (8.7-10.5 GHz) used in marine radar sets well into the ’70’s. Used for the local oscillator tube, this unit also saw service in many microwave trainer kits used for educational service. 2k25/ 723A/b / K19 / K27/CV2792 (8.7 to 10.5GHz) reflex klystron, 35-50mW output through a small coaxial probe from the octal base.
2K22 or 2K56 (4.2 to 4.9GHz) reflex klystron, 35-50mW output through a small coaxial probe from the octal base.
2K22 or 2K56 (4.2 to 4.9GHz) reflex klystron, 35-50mW output through a small coaxial probe from the
...
726C (2.7 to 2.9GHz) reflex klystron, 35-50mW output through a small coaxial probe from the octal base.
726C (2.7 to 2.9GHz) reflex klystron, 35-50mW output through a small coaxial probe from the octal ba
...
2k26/RK5976 (6.2 to 7.4GHz) reflex klystron, 35-50mW output through a small coaxial probe from the octal base.
2k26/RK5976 (6.2 to 7.4GHz) reflex klystron, 35-50mW output through a small coaxial probe from the o
...
