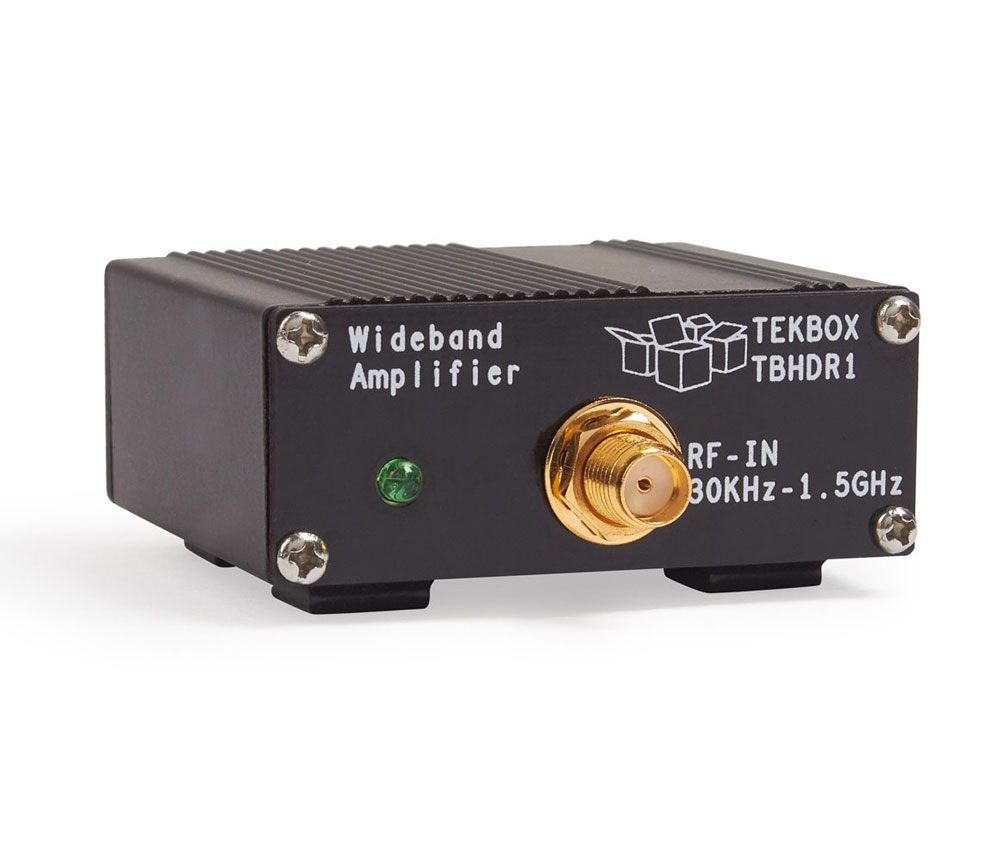

TekBox TBHDR1

High dynamic range, low-distortion 24dB preamplifier for frequencies from 30 kHz to 1.5 GHz. Ideal for EMC pre-compliance test applications (e.g. CISPR 25).

2 years warranty

₹31,990.00 ₹25,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

  • Frequency range: 30 kHz..1.5 GHz
  • Gain: typ. 24 dB
  • Maximum input power: +10 dBm
  • Maximum output power: +19 dBm (80 mW)
  • IP3 (OIP3): +38 dBm
  • Noise: typ. 2.7 dB (@ 2 GHz)

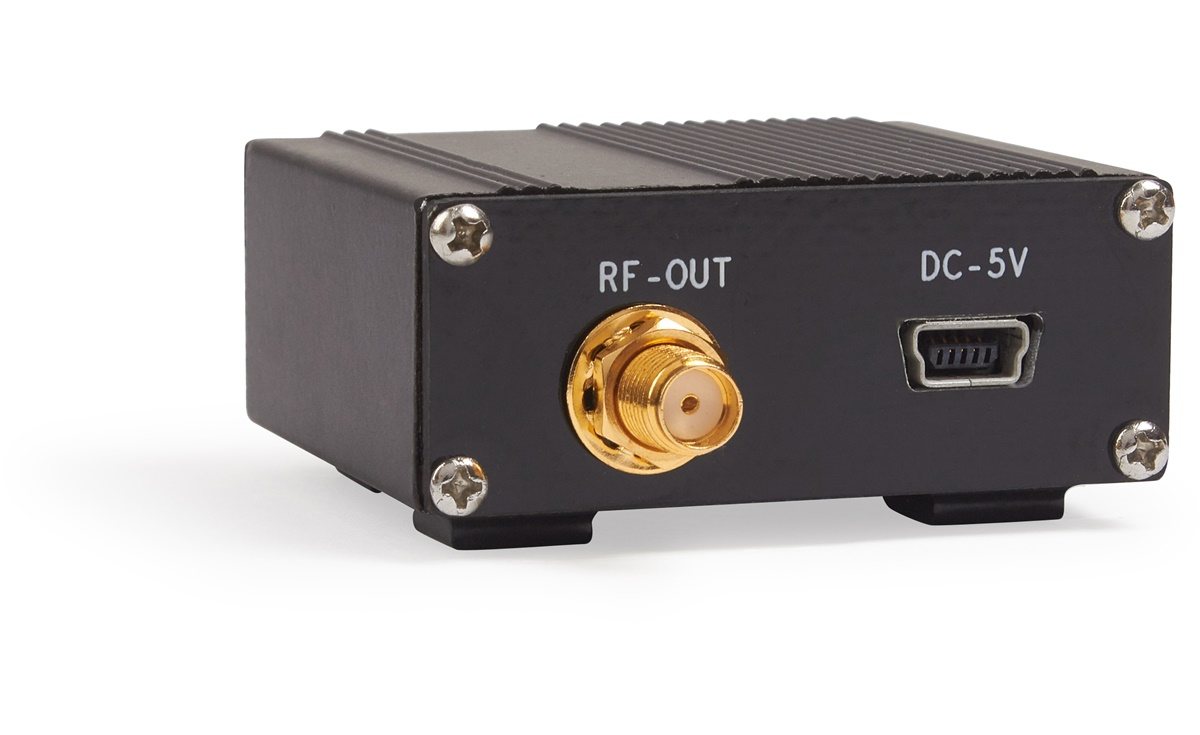

  • Input + Output: SMA connectors (female)
  • Power supply: 5 V, 100 mA (Mini-USB-B)

Downloads

Datasheet

TBHDR1-Datasheet

Language: English
File Size: 2.04 MiB
Release Date: 27.12.2018
