Description

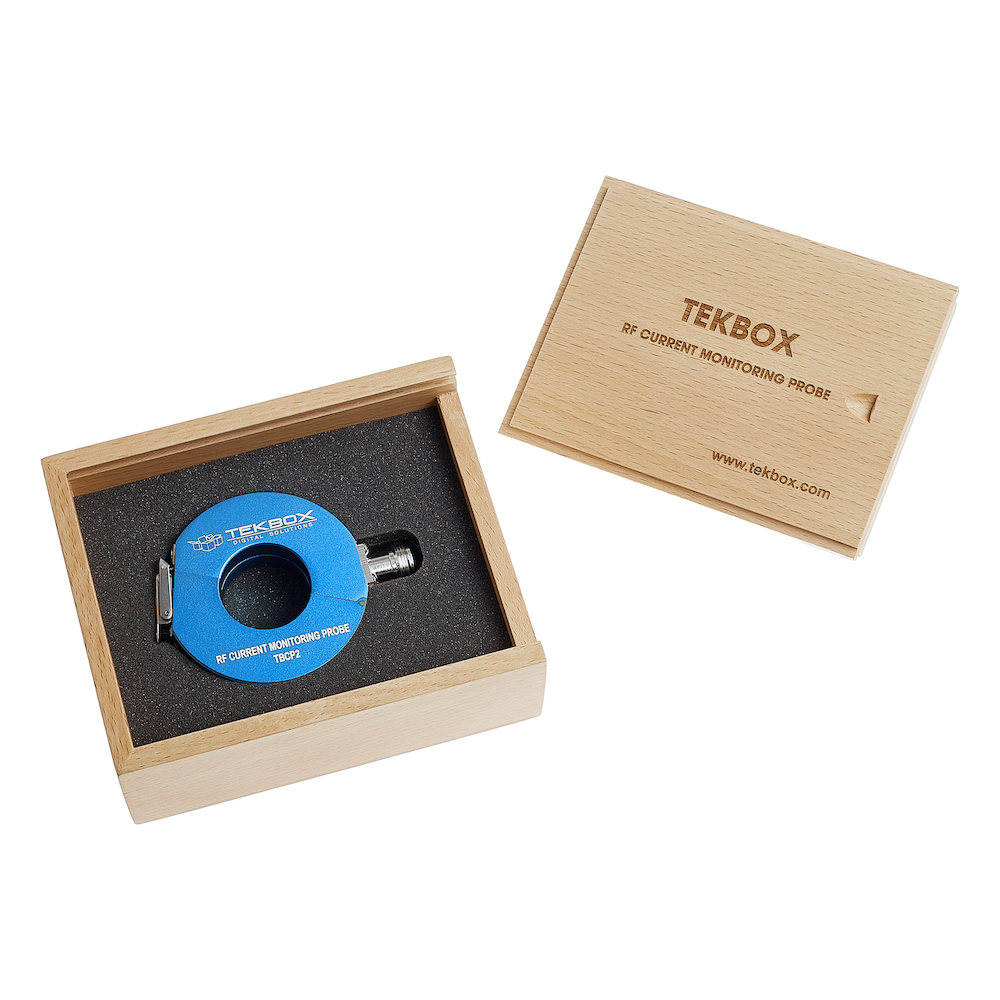

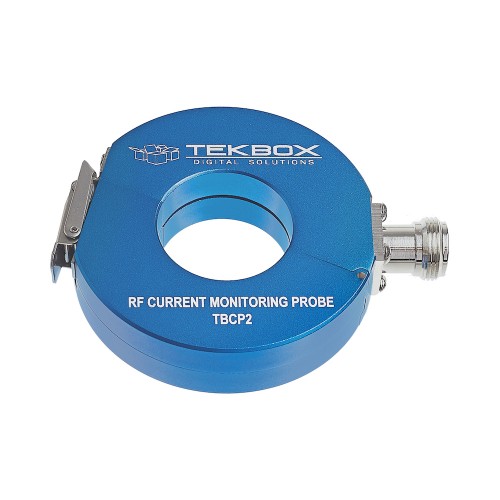

The TekBox TBCP2-750 is a snap-on RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 750 MHz and is characterized and usable over the frequency range from 10kHz to 750 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is > 15 dB Ohm in the range from 1 MHz to 750 MHz.
TekBox TBCP2-750 main specs:
– Characterized frequency range: 10 kHz to 750 MHz
– Aperture diameter: 32 mm
– Outside diameter: 73 mm
– Height: 20 mm
– Weight: 320 g
– Connector type: N female
– Transfer impedance: 0 to 22 dBΩ between 150 kHz and 750 MHz
– Max. primary current (DC – 400 Hz): 80 A
– Max. primary current (RF): 3 A
– Max. core temperature: 125 °C
TekBox TBCP2-750 user manual (EN)
