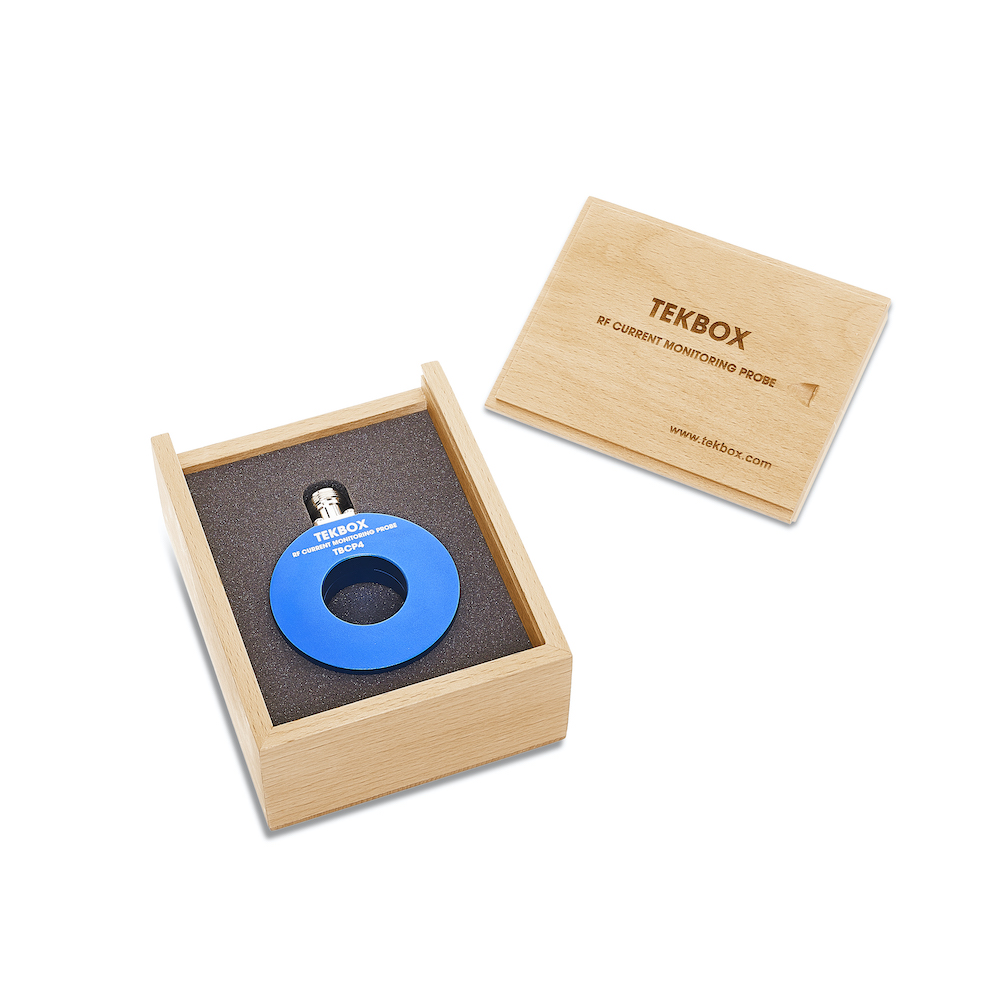

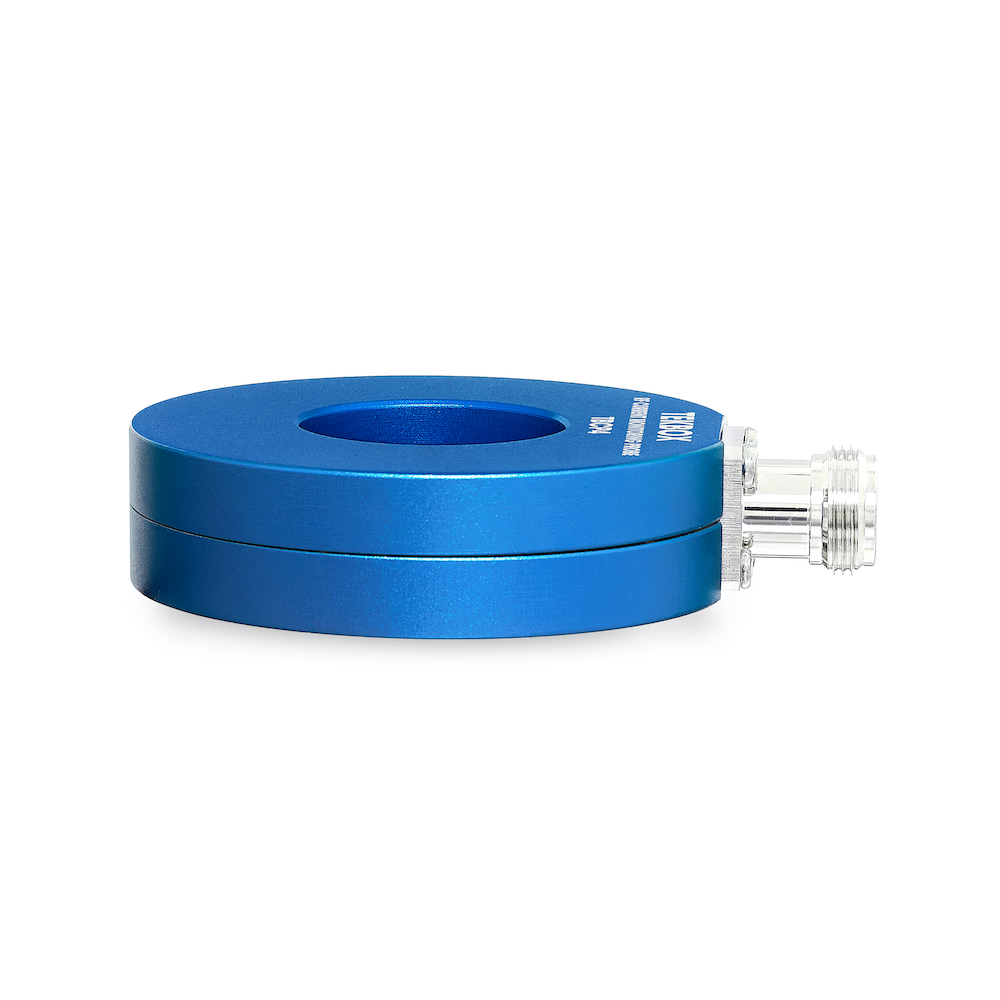

TekBox TBCP4-750 RF current monitoring probe, 32mm 750MHz

Code: TBCP4-750

The TekBox TBCP4-750 is a fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 750 MHz and is characterized and usable over the frequency range from 10kHz to 800 MHz. The aperture of the RF current monitoring probe is 32 mm.

₹115,890.00 ₹85,890.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The TekBox TBCP4-750 is a fixed aperture RF current monitoring probe, it has a very flat response with a 3dB bandwidth of 750 MHz and is characterized and usable over the frequency range from 10kHz to 800 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is close to 20 dB Ohm in the range from 400 kHz to 750 MHz.

TekBox TBCP4-750 main specs:
– Characterized frequency range: 10 kHz to 750 MHz
– Aperture diameter: 32 mm
– Outside diameter: 73 mm
– Height: 20 mm
– Weight: 320 g
– Connector type: N female
– Transfer impedance: 20 dBΩ
– Max. primary current (DC – 400 Hz): 80 A
– Max. primary current (RF): 3 A
– Max. core temperature: 125 °C
