Rigol MSO2202A

Code: MSO2202A

High quality 2 channel DSO with 200 MHz bandwidth, 2 GSa/s and 14 Mpts memory depth, with integrated 16 channel logic analyzer with digital sample rate up to 2 GSa/s and 14 Mpts memory depth per digital channel.

All options for free!
Get all MSO/DS2000A Options Bind, including MEM_DS2000 AT-DS2000 SD-DS2000 CAN-DS2000 for free with the purchase of a new device.
(Valid until 30.09.2022)

3 years warranty

114,356.00 87,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

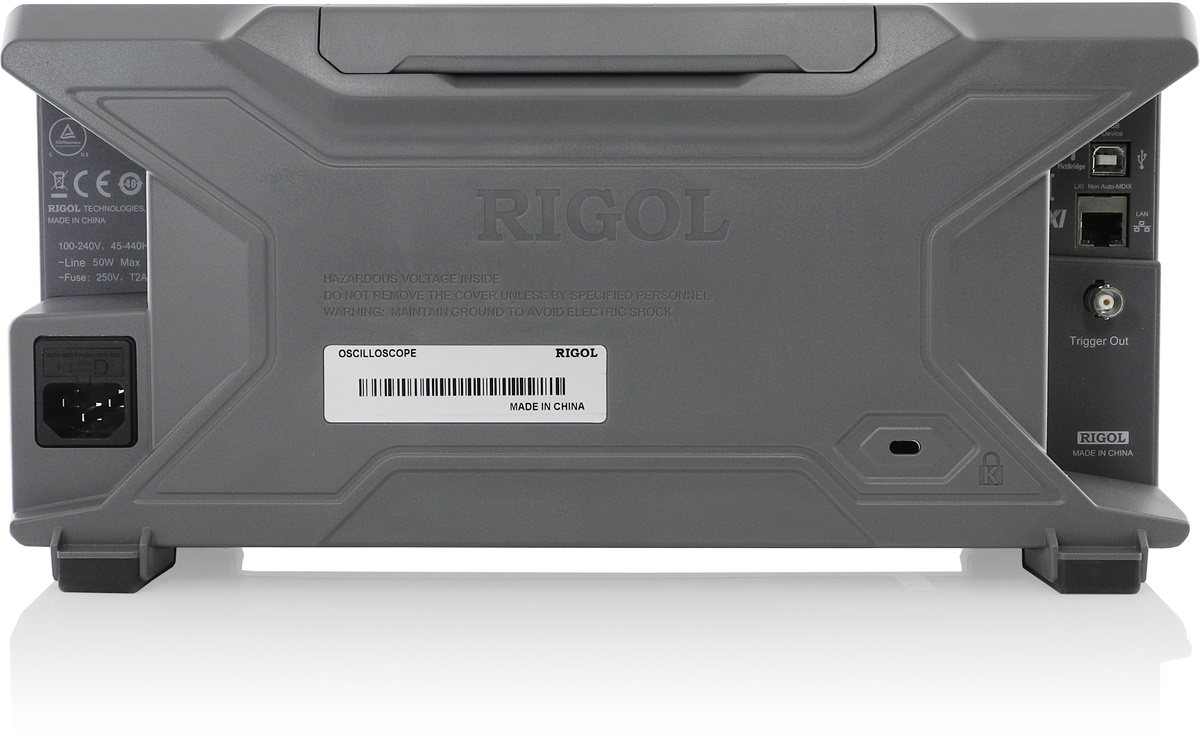

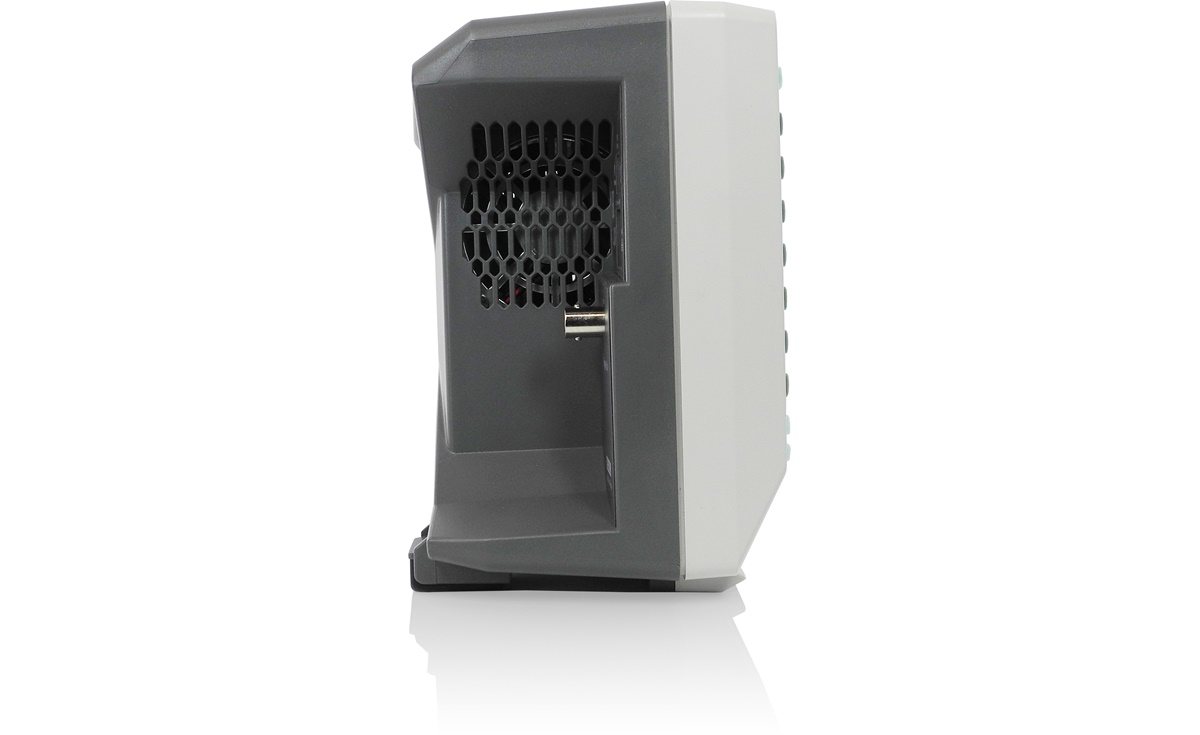

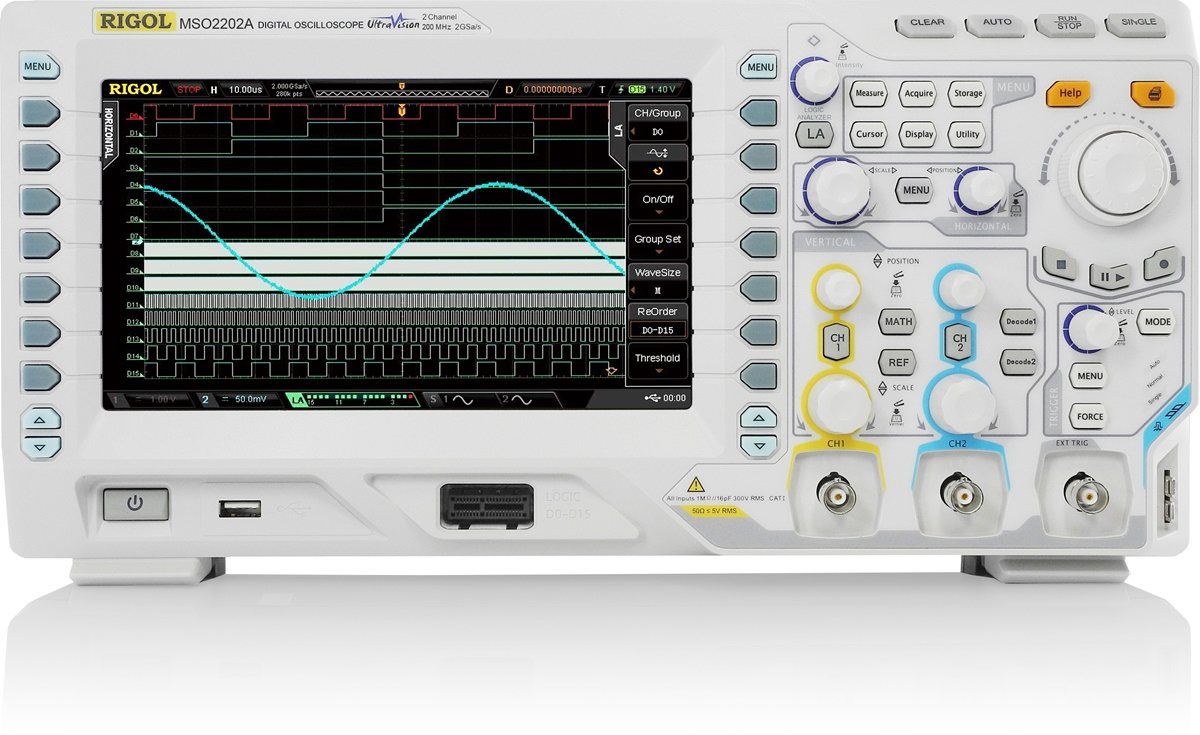

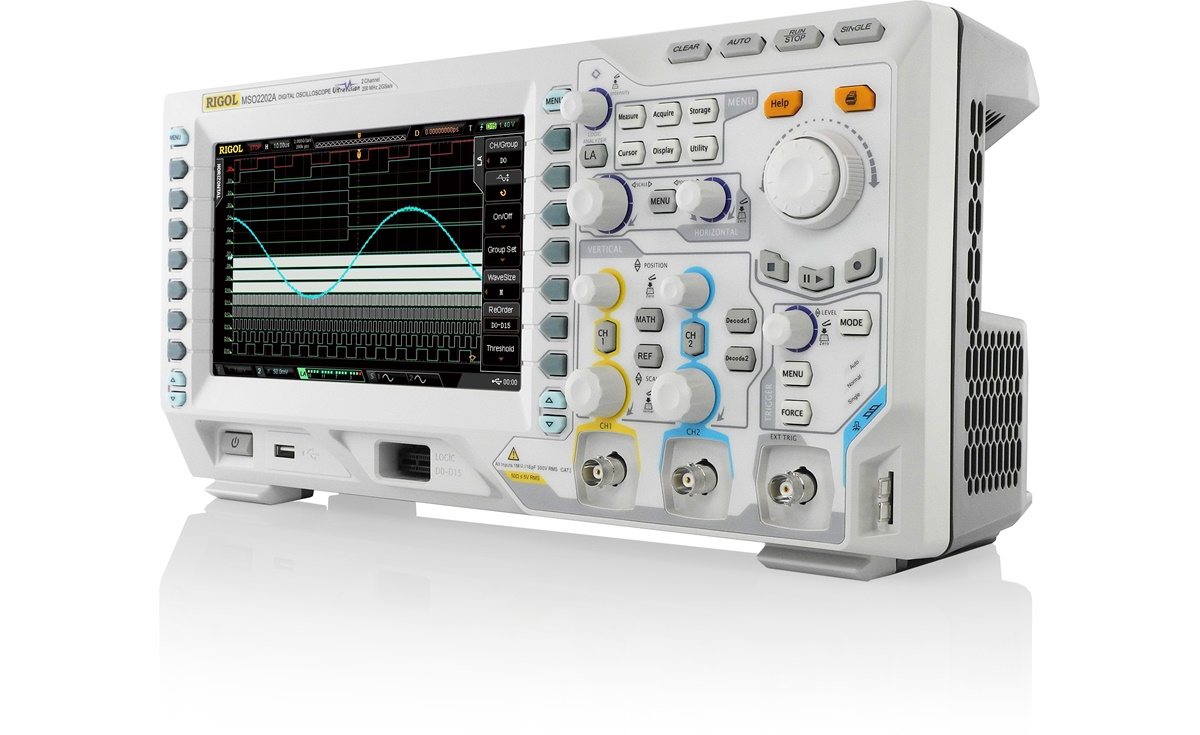

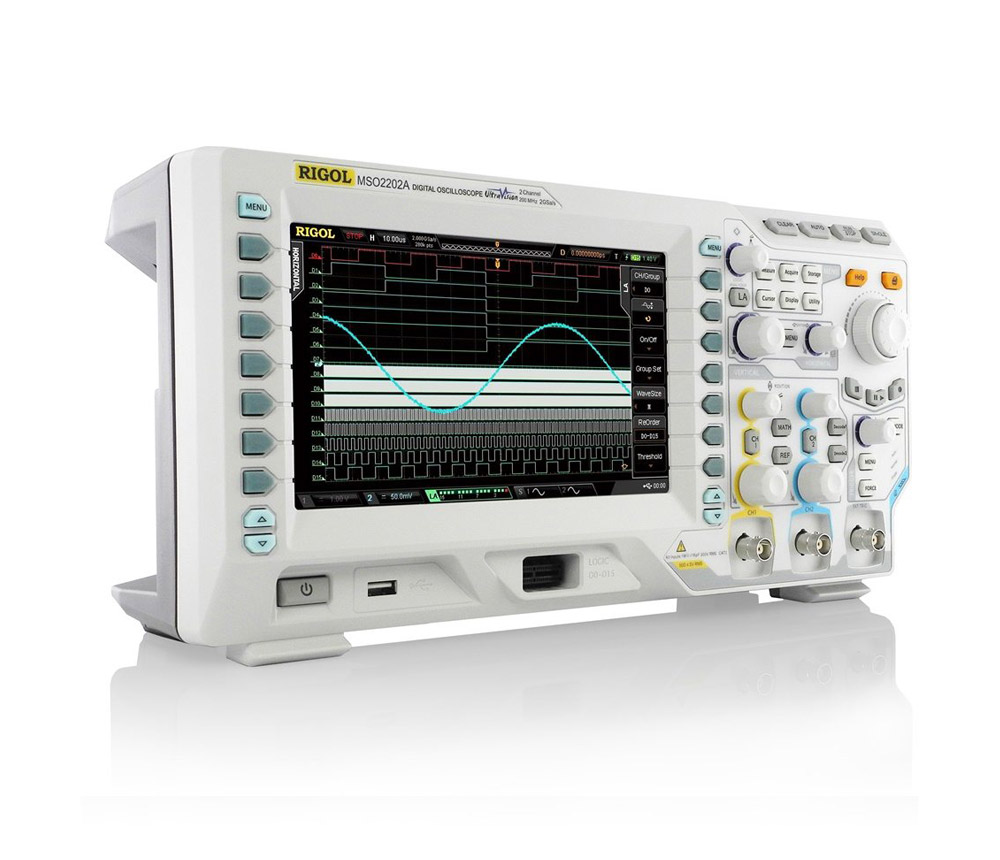

The Rigol MSO2202A is a very high quality two channel digital storage oscilloscope. It features a real-time sample rate of up to 2 GSa/s and a bandwidth of 200 MHz.

The Rigol oscilloscopes are equipped with well designed and easy to use controls offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages. This high performance standard not only ensures capturing real-time instantaneous signals, but also observes details of repeated signals. The MSO2202A has a refresh rate of up to 50.000 wfms/s, enabling users to capture instantaneous signals, as well as abnormal signals more quickly. It also helps to to enhance the waveform capturing ability and to expedite a circuit debug course.

The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

Model Overview MSO2072A MSO2102A MSO2202A MSO2302A
Bandwidth 70 MHz 100 MHz 200 MHz 300 MHz
Sample Rate 2 GSa/s 2 GSa/s 2 GSa/s 2 GSa/s
Waveform Capture Rate 50000 wfms/s 50000 wfms/s 50000 wfms/s 50000 wfms/s
Memory Depth 14 Mpts

(56 Mpts Option)

14 Mpts

(56 Mpts Option)

14 Mpts

(56 Mpts Option)

14 Mpts

(56 Mpts Option)

Model Overview MSO2072A-S MSO2102A-S MSO2202A-S MSO2302A-S
Waveform Generator Standard Standard Standard Standard

Special Features

Great accuracy, low noise input

The DS2000A is able to measure very small signals, thanks to the measurement input stage which was newly developed by Rigol. The vertical resolution starts at 500uV (0.5 mV) per division. The screenshot shows the measurement of a scant 1 millivolt a squarewave signal (yellow).

Perfect frequency response design

The new measuring input stages behave almost perfectly even at the frequency response. On the screenshot you see a signal with a rise time of just 1.4 nanoseconds, with an amplitude of about 5 millivolts. The overshoot is below 5%.

Deeper Memory (14 Mpts / 56 Mpts)

The Rigol DS2000A oscilloscopes can store up to 14 million measurement points. You can zoom into a selected part of the captured waveforms to get more details and scroll within the measurement points. With the optional memory module MEM-DS2 even 56 million data points are available. The memory expansion module “MEM-DS2” is available on this page under the “accessories” tab.

Realtime waveform record, replay, analysis

The very high sampling rate of the Rigol DS2000A Oscilloscope and the large memory makes it possible to record up to 50,000 waveforms per second. The recorded waveforms can be conveniently displayed and analyzed.

Multi-Level Intensity Grading Display
With the “Multi-Level Grading Intensity” display, extensive signal characteristics with a very large number of measurement values can also be displayed completely.

Serial bus trigger functions (RS232, I²C, SPI)

Triggering on serial bus systems (RS232/UART, I²C and SPI) is already included.

Serial bus decoding function

With the optional “SD-DS2 Decoding Kit” serial data packages of different serial bus systems can be analyzed, decoded, and displayed directly as byte values. Supported protocols are: RS232/UART, I²C, and SPI. The serial decoding module “SD-DS2” is available on this page under the “accessories” tab.

Comprehensive trigger functions

The Rigol DS2000A oscilloscopes offer comprehensive trigger options, allowing a professional use. The special trigger “Windows”, “Nth Edge”, HDTV, delay, time out, duration and USB are available with the optional “AT-DS2 Advanced Trigger” module, available on this page under the “Accessories” tab.

Runt Trigger
In the “runt trigger” mode, the scope can trigger on dwarf pulses. Dwarf pulses are short pulses that do not reach the full amplitude. For this trigger mode three voltage thresholds can be defined (eg, 10%, 50% and 90%). If the signal passes the first two thresholds in one direction, but doesn?t reach the third, the trigger fires.

Advanced Math
The DS2000A series oscilloscopes comes with a modern and advanced math system which lets it solve complicated signal calculations quite simply with user defined formulas.

Masked Pass/Fail-Tests
Pass/fail testing can be used for troubleshooting in various environments like communication networks. Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm

Auto measurements with statistics
The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

Arbitrary 2 Channel Waveform Generator
The DS2000A-S series oscilloscopes have an integrated 2CH arbitrary waveform generator for signals up to 25 MHz (sine), with a max. amplitude of 5 Vpp and a sample rate up to 200 MSa/s. The signal outputs are on the backside of the device.

Integrated 16 Channel Logic Analyser
Next to the well known comfort of the DS2000A devices the Rigol MSO2000A series offers a sophisticated 16 channel logic analyser with a clear and easy to configure user interface.

Ultra Vision auch für Logik Analysator
Ultra Vision is available for the 16 channel logic analyser too. Huge amounts of measurement data can be selected and shown precisely for further analysing. Even the display of the signal decoding options is possible in Ultra Vision mode.

Specifications

General Data Digital Oscilloscope Rigol MSO2202A
Display 20.32 cm (8″) WVGA-Color-LCD
Resolution 800 × 480 Pixel
Interface
  • USB-host for i.e. USB sticks
  • USB-Device for a PC connection or USB Pict-Bridge printerinterface
  • LAN for network connectivity (LXI compilant)
  • GPIB (IEE-488, General Purpose Interface Bus) using the optional USB-GPIB Module
  • Trigger- and Calibrationoutput
Size (W × H × D) 36.2 cm × 18.0 cm × 13.1 cm

14.25″ × 7.09″ × 5.16″

Weight 3.9 kg

8.6 lbs

Supported operation systems Windows XP (32Bit + 64Bit)

Windows Vista (32Bit + 64Bit)

Windows 7 (32Bit + 64Bit)

Oscilloscope Functions Digital Oscilloscope Rigol MSO2202A
Channels 2
Real-time sample rate 2 GSa/s realtime
Bandwidth 200 MHz
Sampling Modus Normal, average, peak detect
Mathematics userdefined, FFT (Fast Fourier Transform)
FFT windows Rectangle, Hanning, Hamming, Blackman
Signal Bus Decoding RS232/UART (option), I²C (option), SPI (option), CAN (option)
Signal Digital Oscilloscope Rigol MSO2202A
Input DC/AC coupling, CAT I 300 Vrms, CAT II 100 Vrms
Real-time sample rate up to 2 GSa/s realtime
Time base MSO2302A(-S): 1 ns/div to 1000 s/div

MSO2202A(-S): 2 ns/div to 1000 s/div

MSO2072A(-S) / MSO2102A(-S): 5 ns/div to 1000 s/div

Memory 14 Mpts (1 Channel)

56 Mpts (1 Channel) with memory option MEM-SD2

Input Impedance (1 MΩ ± 1%)||(16 pF ± 3 pF)

or 50 Ω ± 1.5% (switchable)

Vertical Digital Oscilloscope Rigol MSO2202A
Analog digital converter (A/D) 12 Bit at ≥ 5 µs/div

8 Bit at ≤ 2 µs/div

Sensitivity range (V/div) 500 µV/div to 5 V/div
Offset range 500 µV/div to 10 V/div
Trigger Digital Oscilloscope Rigol MSO2202A
Trigger Channel, Ext
Signal system and line/field frequency (Video triggering mode) PAL, NTSC, SECAM

480P, 576P, 720P, 1080P and 1080I HDTV standards

Triggerfunctions Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay
Measurement Digital Oscilloscope Rigol MSO2202A
Cursor measurement Manual, Track and Auto Measure modes
Auto measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay1-2 (rise), Delay1-2(fall), Phase1-2 (rise), Phase1-2 (fall)
Logic Analyser Digital Oscilloscope Rigol MSO2202A
Channels 16
Sample Rate up to 1 GSa/s (realtime)
Memory Depth up to 14 Mpts maximum
Logic Levels (Hysteresis) TTL (700 mV)

5,0 V CMOS (2,5 V)

3,3 V CMOS (1,65 V)

2,5 V CMOS (1,25 V)

1,8 V CMOS (0,9 V)

ECL (-650 mV)

PECL (1,85 V)

LVDS (600 mV)

0 V

user defined

Vertical Resolution 1 Bit
Signal Decoding Parallel (standard), RS232/UART (option), I²C (option), CAN (option)

Accessories

  • ACCESSORIES

    Rigol MEM-DS2 Memory Option

    Optional 56 Mpts memory option for the DS2000 series devices. Simple activation via software code (memory is already build-in). Please specify the serial number of your oscilloscope, if you have this already and want to order the option.

    Optional 56 Mpts memory option for the DS2000 series devices. Simple activation via software code (m

    ...
    (0 reviews)
    35,990.00 29,990.00 Add to cart
  • ACCESSORIES

    Rigol AT-DS2 Advanced Trigger

    Optional advanced trigger function for the DS2000 series devices. Simple activation via software code. Please specify the serial number of your oscilloscope, if you have this already and want to order the option.

    Optional advanced trigger function for the DS2000 series devices. Simple activation via software cod

    ...
    (0 reviews)
    24,490.00 20,290.00 Add to cart
  • ACCESSORIES

    Rigol CAN-DS2000A Serial Decoder

    Optional CAN signal decoder module for the DS2000 series devices. Simple activation via software code.

    Optional CAN signal decoder module for the DS2000 series devices. Simple activation via software cod

    ...
    (0 reviews)
    22,990.00 19,190.00 Add to cart

Downloads

Datasheet


DS2000A/MSO2000A Series Datasheet

File Size: 5.14 MiB
Release Date: 27.12.2018

Manual


Rigol DS/MSO2000(A) SCPI Programming Guide

Language: English
Version: PGA18105-1110
File Size: 4.53 MiB
Release Date: 01.02.2016

Rigol DS/MSO2000A Manual

Language: English
Version: UGA18108-1110
File Size: 5.55 MiB
Release Date: 01.08.2015

Rigol DS/MSO2000A Quick Guide

Language: English
Version: QGA18102-1110
File Size: 1.40 MiB
Release Date: 01.08.2016

Rigol Software Installation and Use

Language: English
File Size: 551.36 KiB
Release Date: 10.04.2014

Software


NI-VISA Runtime Engine 15.0

Version: 15.0
File Size: 83.96 MiB
Release Date: 08.03.2015
O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)

Rigol Ultra Sigma Software Download

Language: English
Version: 00.01.06.01
File Size: 521.91 MiB
Release Date: 30.10.2015
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Ultrascope Download

Language: English
Version: 00.01.01.07
File Size: 10.84 MiB
Release Date: 27.12.2018
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)
