Rigol DSA815-TG

Code: DSA815-TG

High quality spectrum analyzer from 9 kHz to 1.5 GHz with Tracking Generator.

  • Typical -135 dBm Displayed Average Noise Level (DANL)
  • -80 dBc/Hz @10 kHz offset Phase Noise
  • 10 Hz Minimum Resolution Bandwidth (RBW) (As of 4/1/2017 – Previously 100 Hz)
  • Standard with Preamplifier and AM/FM Demodulation Function
  • 1.5 GHz Tracking Generator

Now includes NABL Calibration Certificate.

3 years warranty

192,954.00 180,894.00

1 in stock (can be backordered)

1 in stock (can be backordered)

Description

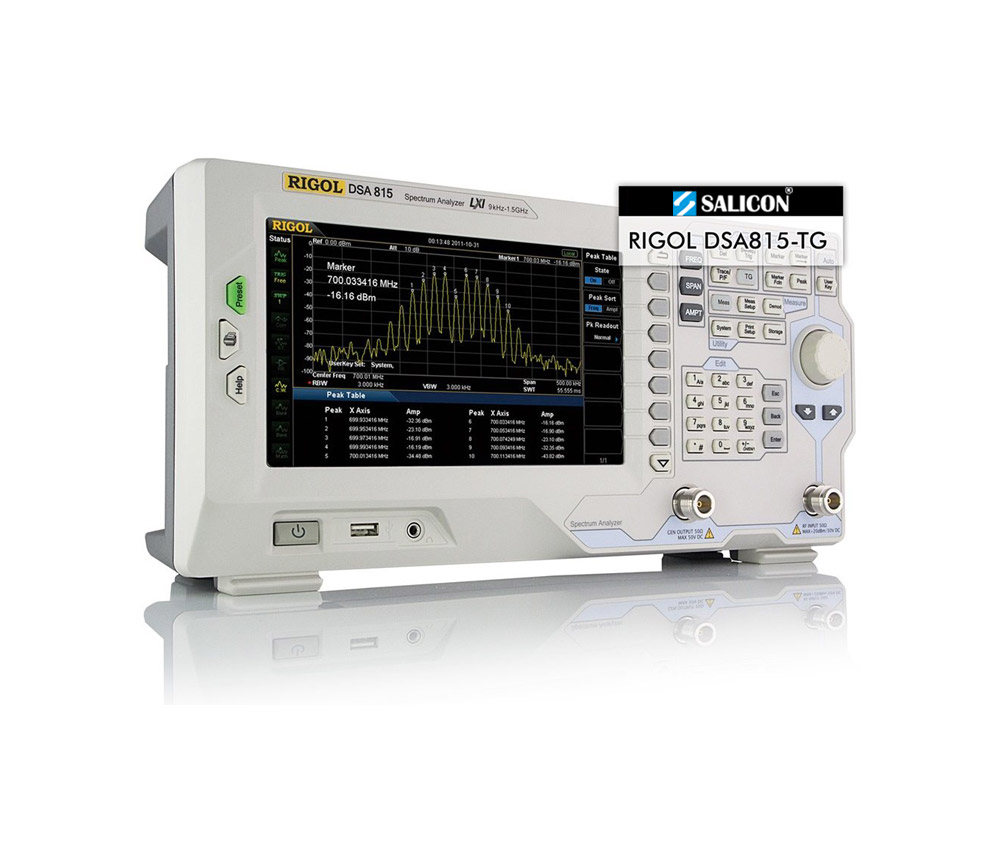

The Rigol DSA815-TG is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.

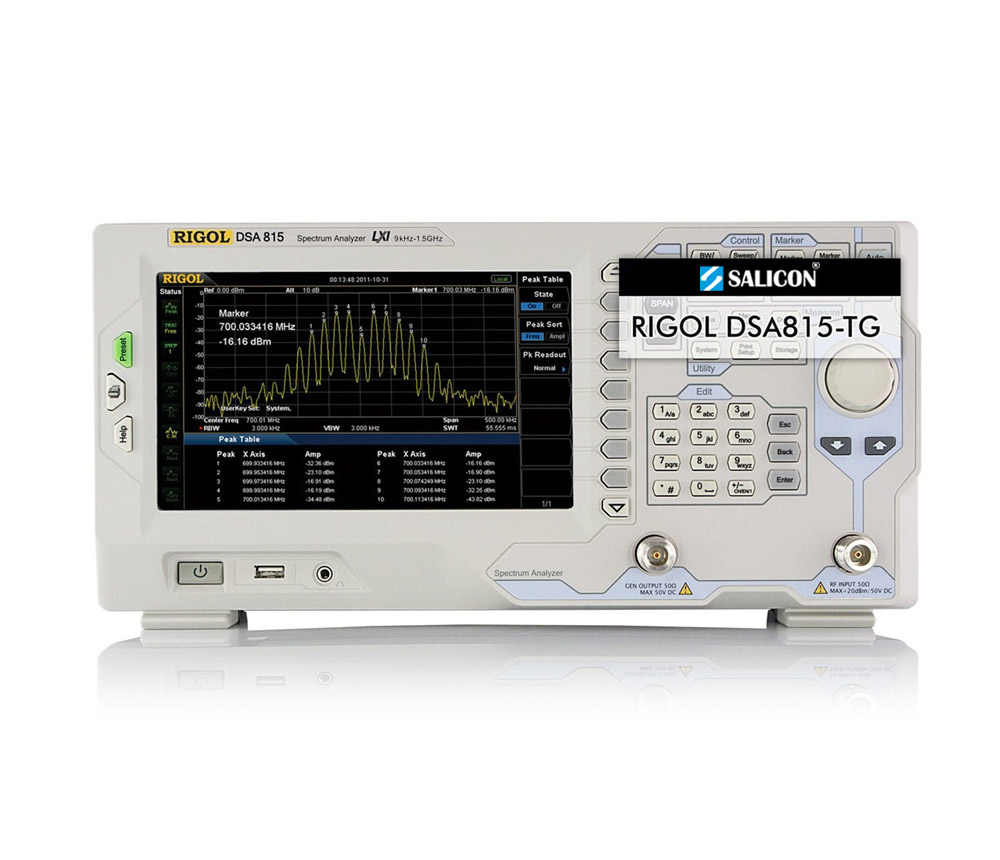

The very large display (20.3 cm / 8″) of the Rigol DSA815-TG Spectrum Analyzer provides a resolution of 800×480 pixels allowing a very good overview of all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, compared to the manual process necessary with a traditional analyzer.

The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface offering multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model-Overview Max. Bandwidth EMI/QuasiPeak Adv. Meas. Kit Preamplifier Tracking Gen.
DSA815 1.5 GHz optional optional Stanadard X
DSA815-TG 1.5 GHz optional optional Stanadard Stanadard
DSA832E 3.2 GHz optional optional Stanadard X
DSA832E-TG 3.2 GHz optional optional Stanadard Stanadard
DSA832 3.2 GHz optional optional Stanadard X
DSA832-TG 3.2 GHz optional optional Stanadard Stanadard
DSA875 7.5 GHz optional optional Stanadard X
DSA875-TG 7.5 GHz optional optional Stanadard Stanadard

Special Features

Spectrum compare

10 Hz RBW

AM Signal Demodulation

Peak table function

EMI Measurement (option)

Preamplifier

Specifications

Spectrum Analyzer Spectrum Analyzer Rigol DSA815-TG
Display 20.3 cm (8″) TFT-Color-LCD
Resolution 800 × 480 Pixel

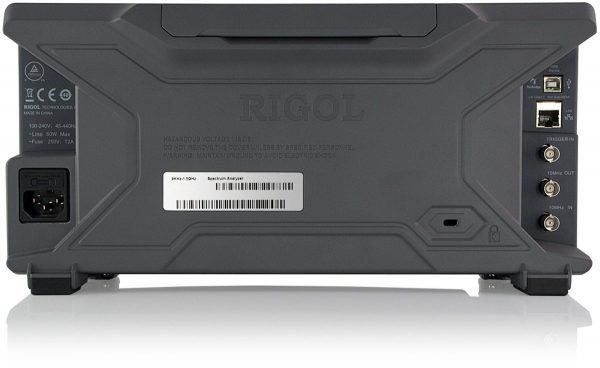

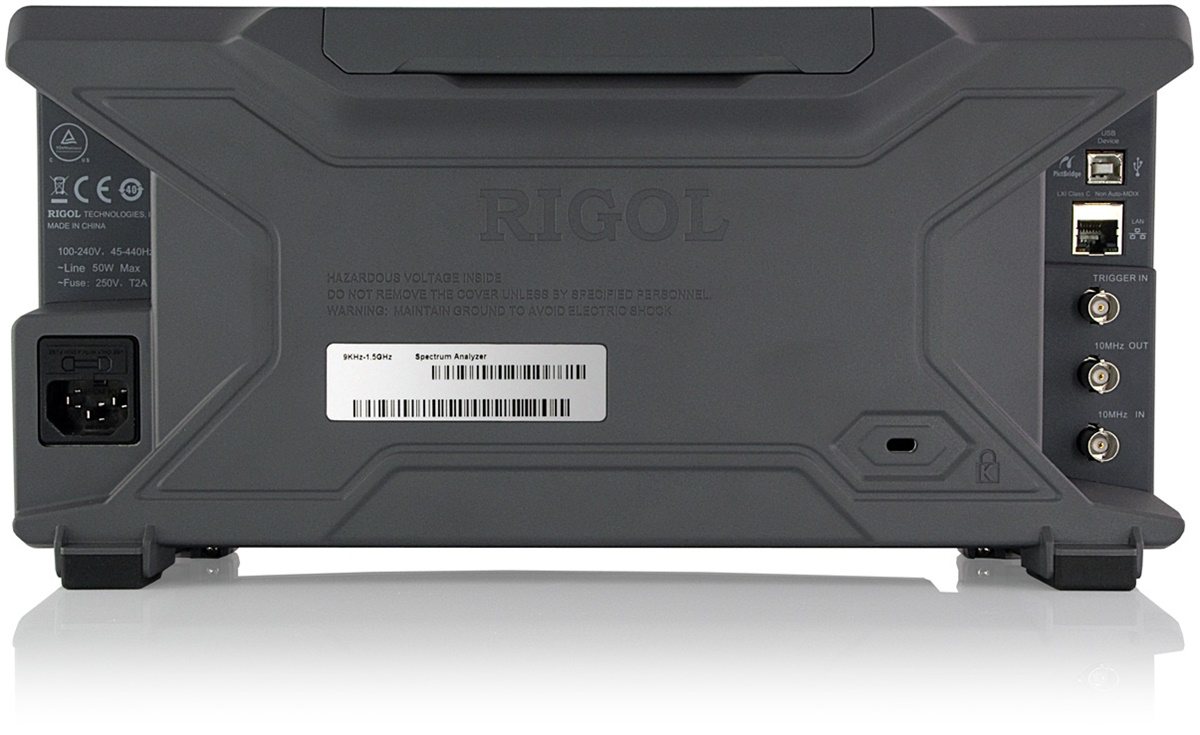

Interfaces
  • USB-Host (for USB stick i.e. to save/load waveforms)
  • USB for a PC connection
  • LAN for network connection
  • GPIB (IEE-488, General Purpose Interface Bus) The GPIB function is only available with the use of the optional available USB GPIB module
Dimensions 362 mm × 179 mm × 128 mm



Weight 4.55 kg (10.03 lbs)



Supported operation systems Windows XP, Vista, Windows 7, Windows 8, Windows 10

The complete list of technical specifications can be found in chapter 6 “Specifications” of the manual. A shorter overview is available in the datasheet.

Function Spectrum Analyzer Rigol DSA815
Channels 1
Frequency Range 9 kHz to 1.5 GHz
Frequency Resolution 1 Hz
Internal Frequency Reference 10 MHz
Span 0 Hz (zero Span)
100 Hz to 1.5 GHz
DANL
(Displayed Average Noise level)
(Normalized to 1 Hz)
100 kHz to 1 MHz
1 MHz to 1.5 GHz
< -110 dBm, < -130 dBm (typ.)
< -130 dBm + 6 x (f / 1 GHz) dB, < -135 dBm (typ.)
DANL (with Preamplifier)
(Displayed Average Noise level)
(Normalized to 1 Hz)
100 kHz to 1 MHz
1 MHz to 1.5 GHz
< -130 dBm, < -150 dBm (typ.)
< -150 dBm + 6 x (f / 1 GHz) dB, < -155 dBm (typ.)
Amplitude Range DANL to +20 dBm
Max. Input Voltage 50 V
Sweeptime Range 100 Hz ≤ Span ≤ 1.5 GHz
0 Hz (zero Span)
10 ms to 1500 s
20 µs to 1500 s
Sweepmodes Continuous, Single
Resolution Bandwidth (RBW) 10 Hz to 1 MHz (in 1-3-10 sequence)
Video Bandwidth (VBW) 1 Hz to 3 MHz (in 1-3-10 sequence)
Input Impedance 50 Ω nominal
