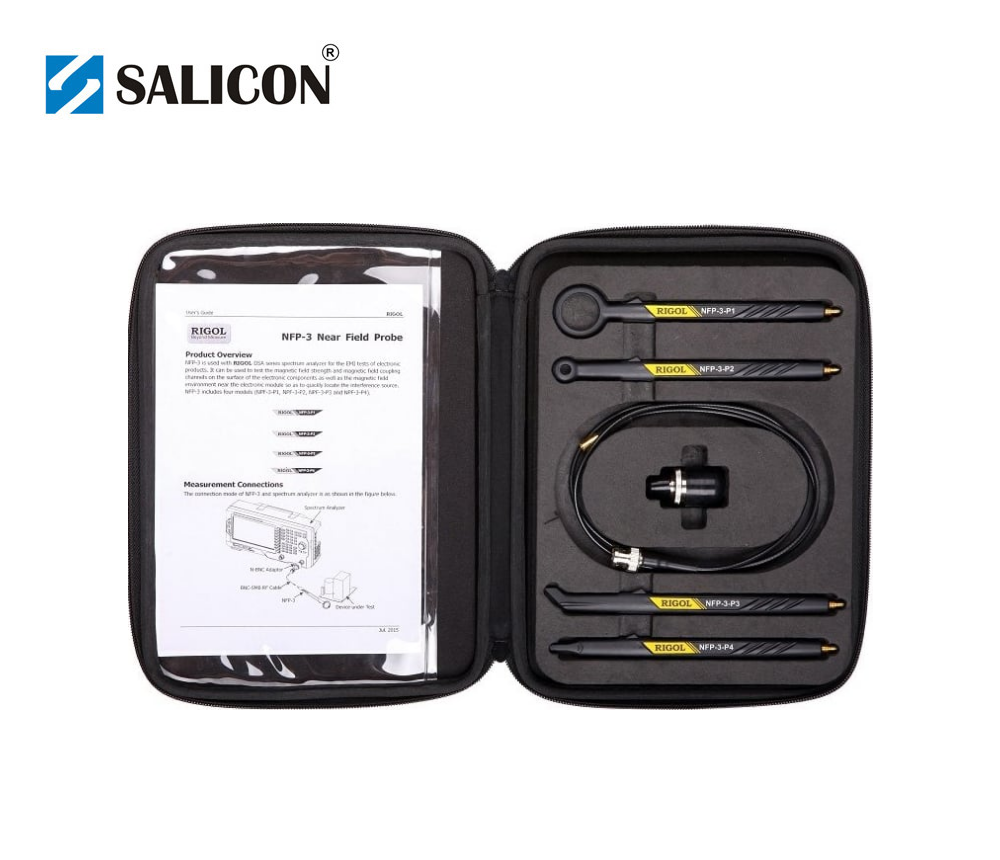

Rigol NFP-3 RF Near Field Probe Kit

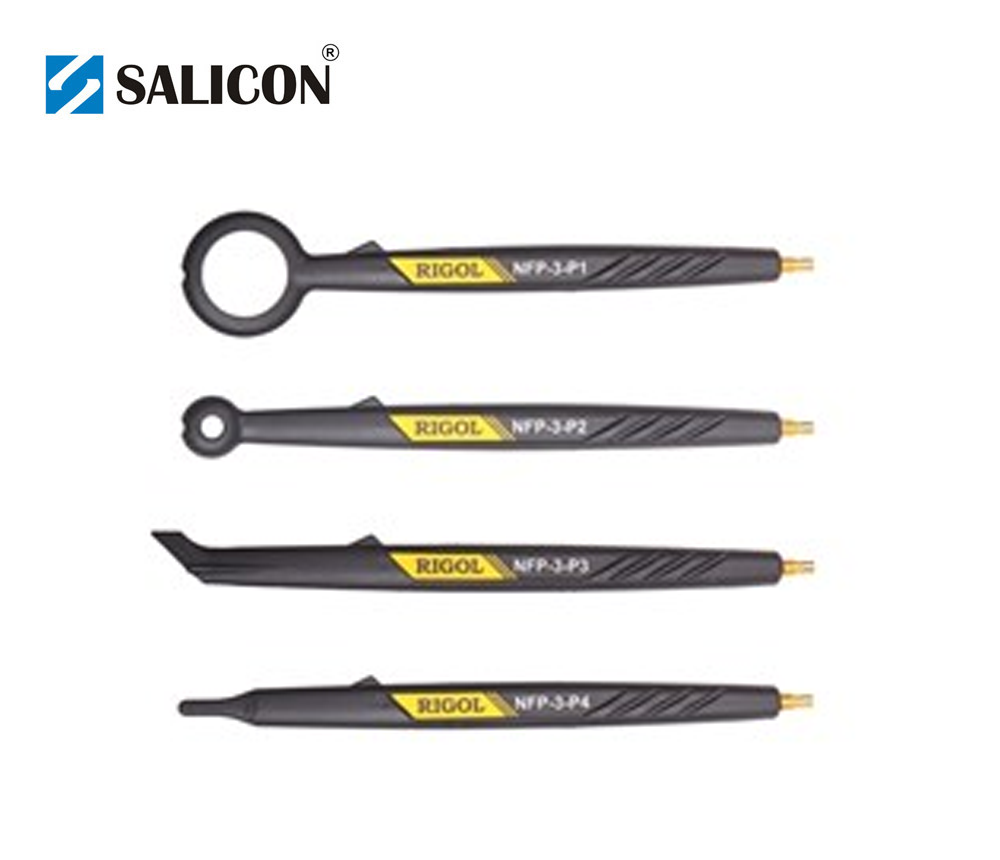

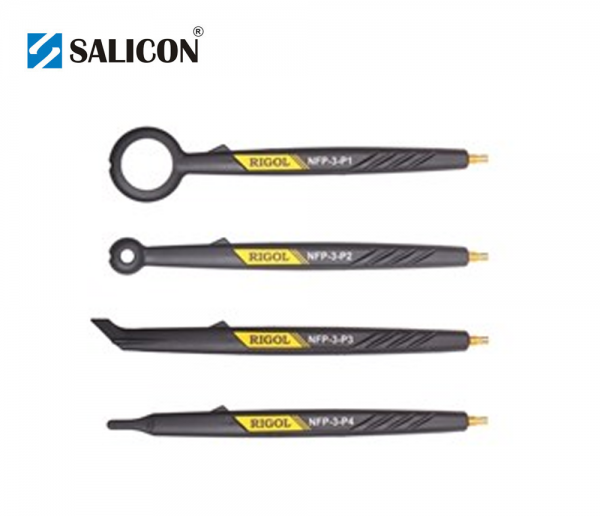

The Rigol NFP-3 is used with RIGOL DSA series spectrum analyzer for the EMI tests of electronic products. It can be used to test the magnetic field strength and magnetic field coupling channels on the surface of the electronic components as well as the magnetic field environment near the electronic module so as to quickly locate the interference source. NFP-3 includes four models (NFP-3-P1, NFP-3-P2, NFP-3-P3 and NFP-3-P4).
Measurement Connections
The connection mode of NFP-3 and spectrum analyzer is as shown in the figure below.
Connect the spectrum analyzer
Connect the SMB (M) terminal of NFP-3 and the BNC (F) terminal of the N-BNC adaptor respectively via the BNC-SMB RF cable; connect the N (M) terminal of the N-BNC adaptor to the RF input terminal of the spectrum analyzer.
Connect the device under test
NFP-3 is used to perform short-distance noncontact measurement on the device under test. Pay attention to the direction of the probe during measuring.
Typical Applications
- Locate the EMI radiation interference source.
- Determine the frequency and relative strength of the spectral component of the interference source.
Manufacturer Specs
| Performance Specifications | |
| Frequency | |
| Frequency | Range 30 MHz to 3 GHz |
| Terminal Type | |
| Terminal Type | SMB (M) |
| Adaptor | N (M)-BNC (F) |
| RF Cable | BNC (M)-SMB (F), 1000 mm |
| Terminal and Adaptor Impedance | 50 Ω |
| General Specifications | |
| Dimensions | 260 mm × 190 mm × 30 mm (with package) |
| Weight | 0.425 kg (with package) |
| Operating Temperature | °C to 5°C |
| Storage Temperature | -2°C to 7°C |
