Rigol DS70504

Code: DS70504

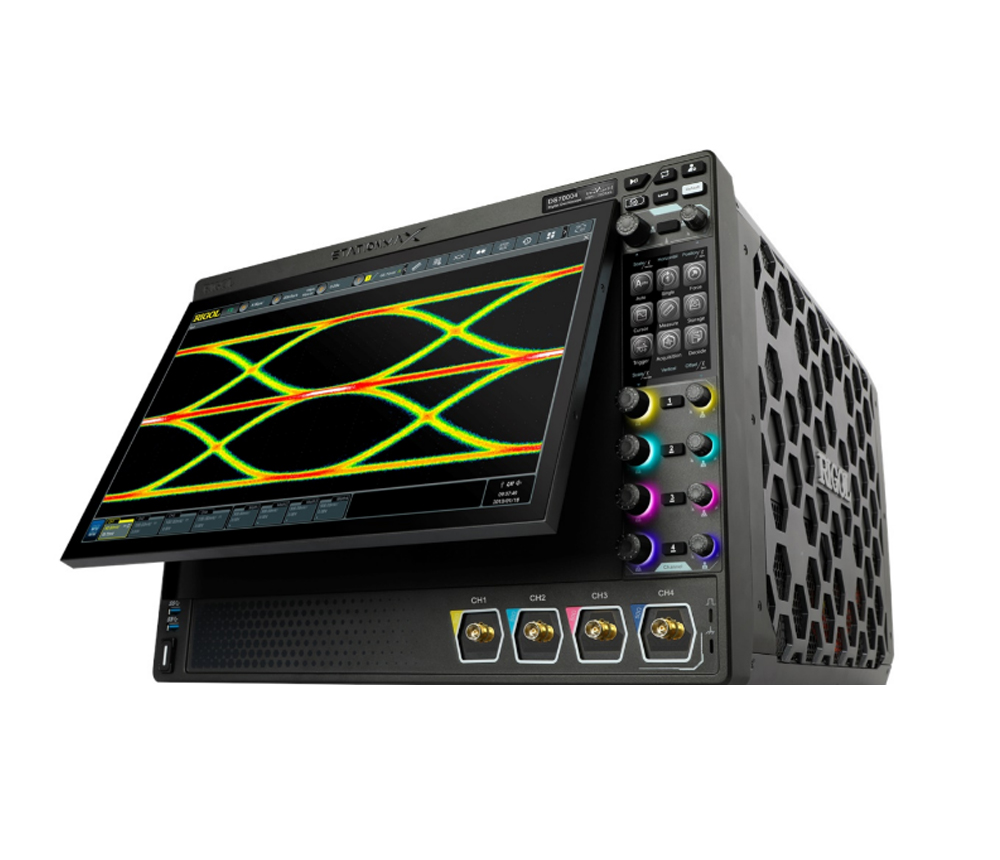

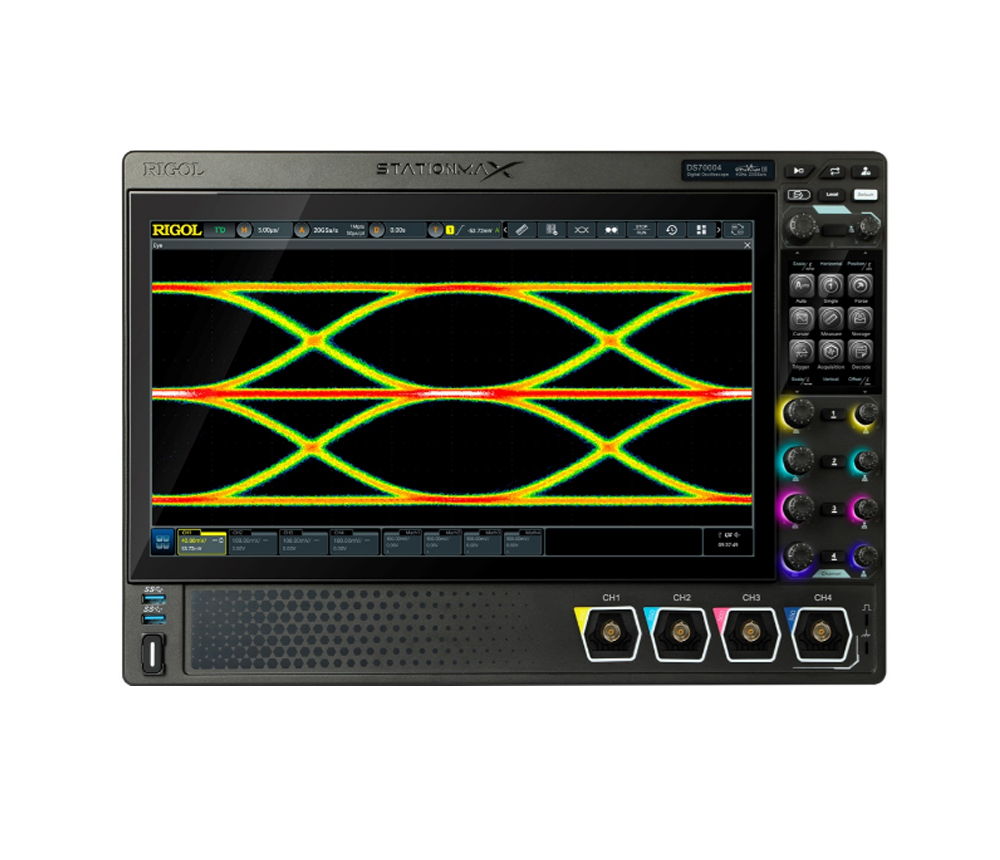

4 channel oscilloscope with 3 GHz bandwidth, 20 GSa/s sample rate, up to 2 Gpts memory depth and a 39.6 cm multi-touch flip screen 1920×1080 pixel. Upgradable to a realtime spectrum analyzer.

3 years warranty

4,553,152.00 4,028,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

The DS70000 series digital oscilloscope adopts RIGOL’s chipset “Phoenix”, delivering excellent performance with a maximum sample rate of 20 GSa/s, 5 GHz bandwidth. RIGOL’s brand new UltraVison III technical platform guarantees the specifications to reach the advanced level in the industry, with the capture rate up to millions of waveforms per second, 2 Gpts memory depth, 8-16 bits adjustable resolution, and 10,000 FFTs/s.

In addition to the improved hardware specifications, the DS70000 series digital oscilloscope has a main 15.6-inch HD capacitive multi-touch screen equipped with electronically controlled one-button screen inclination for signal visualization, analysis, and results; a secondary 3.5-inch small screen with a customized function and shortcut menu display; and other user-friendly designs, bringing users an extraordinary human-machine interface experience.

Features DS70000
Bandwidth 3 GHz – 5 GHz
Channel 4 (1 EXT channel)
Waveform capture rate 1.000.000 wfms/s
Sample rate 4 channel with each 10 GSa/s

(single channel 20 GSa/s)

Memory depth Standard: 500 Mpts Option: 2 Gpts (single-channel), 1 Gpts (half-channel / all-channel)
Vertical Resolution (selectable) 8-16 bits
LCD Size and Type 15.6″ HD capacitive multi-touch flip screen/gesture enabled operation and 3.5″ user-defined keyboard control touch screen
Display Resolution 1920×1080, 480×320
DS70000 Bandwidth Channel Real-time spectrum analyzer Protocol analyzer
DS70304 3 GHz 4 Option Option
DS70504 5 GHz (500MHz (1 MΩ, -3 dB)) 4 Option Option

Special Features

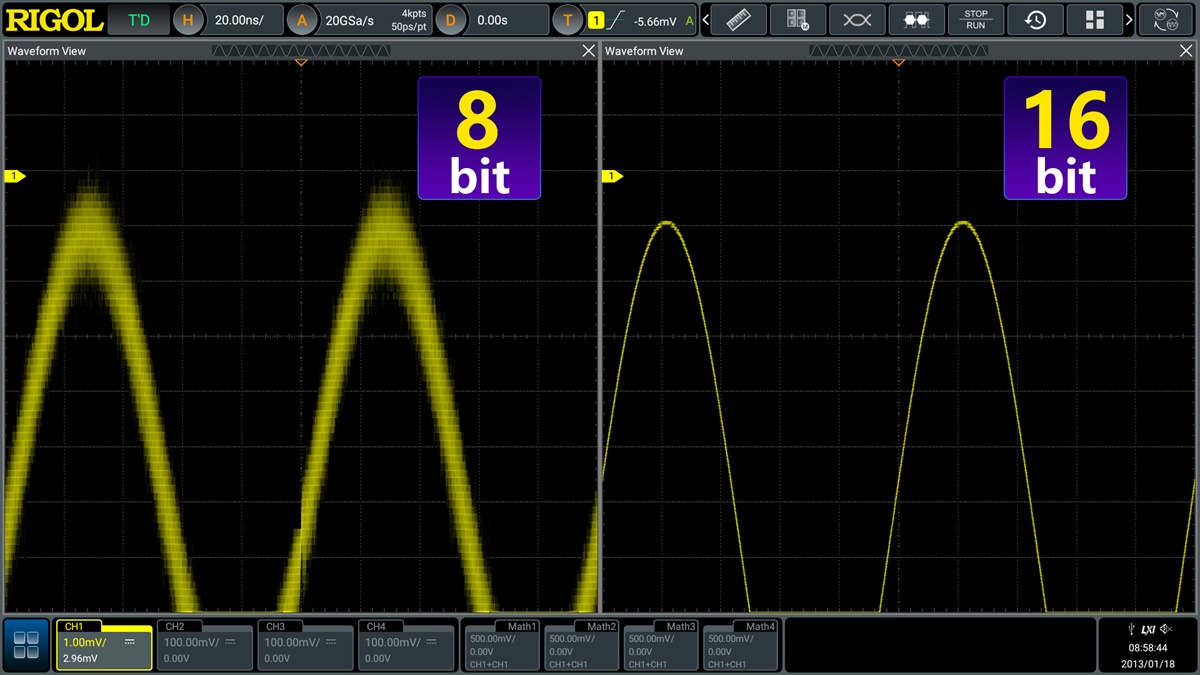

High resolution up to 16 bits

The new high resolution capability allows users to set the desired number of bits (up to 16) for the measurement and then reports the available bandwidth. This removes signal noise that can obscure important test results

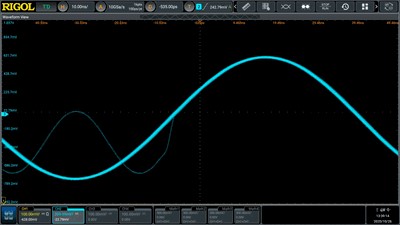

Up to 1.000.000 wfm/s waveform update rate

RIGOL’s brand new UltraVison III technical platform guarantees the specifications to reach the advanced level in the industry, with the capture rate up to 1.000.000 wfm/s.

Photoelectric encoderThe photoelectric encoder operating knob guarantees more than 100.000 times of pressing operation and 1 million times of rotation operation, greatly improving the service life of the knob. With photoelectric encoders, you no longer have to worry about wear, ensuring reliable operation throughout the life of the instrument.

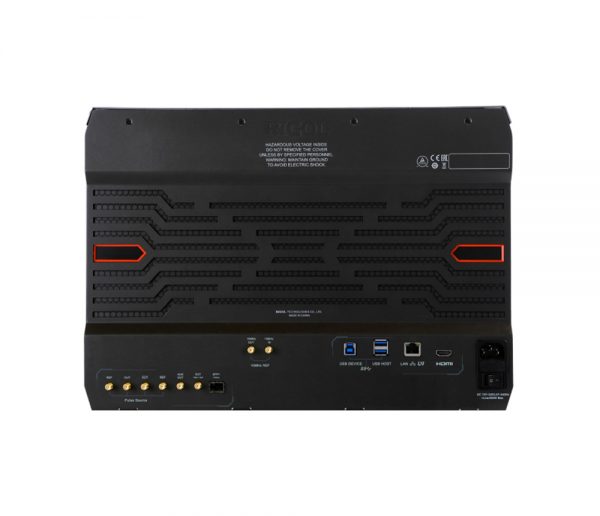

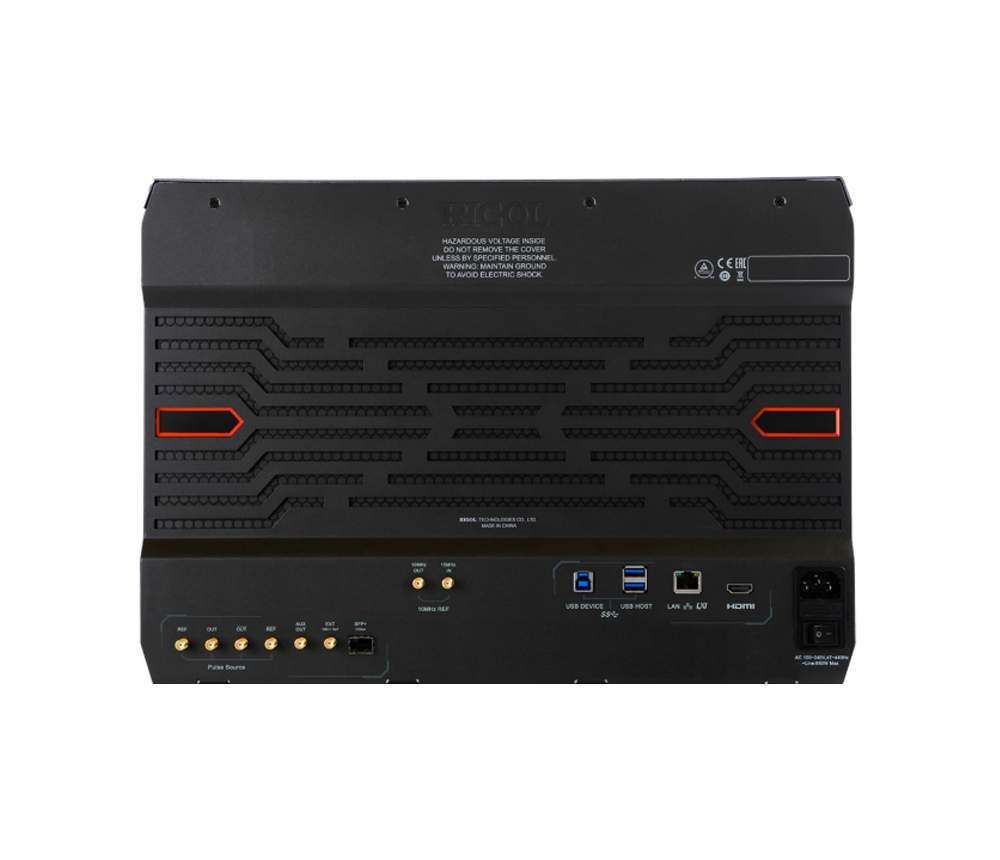

Multiple external interfaces

The Rigol DS70304 provides a variety of external interfaces that improve usability and data access including USB 3.0 Host andd Device, LAN (LXI), HDMI, AUX OUT, 10 MHz IN, 10 MHz Out and GPIB (option) via the USB-GPIB adaptor. For remote control over LAN, the DS70000 includes complete web control with web-based screen recording, a SCPI command interface, and ftp access to files stored on the instrument. The HDMI outputs supports use of an external monitor or video display.

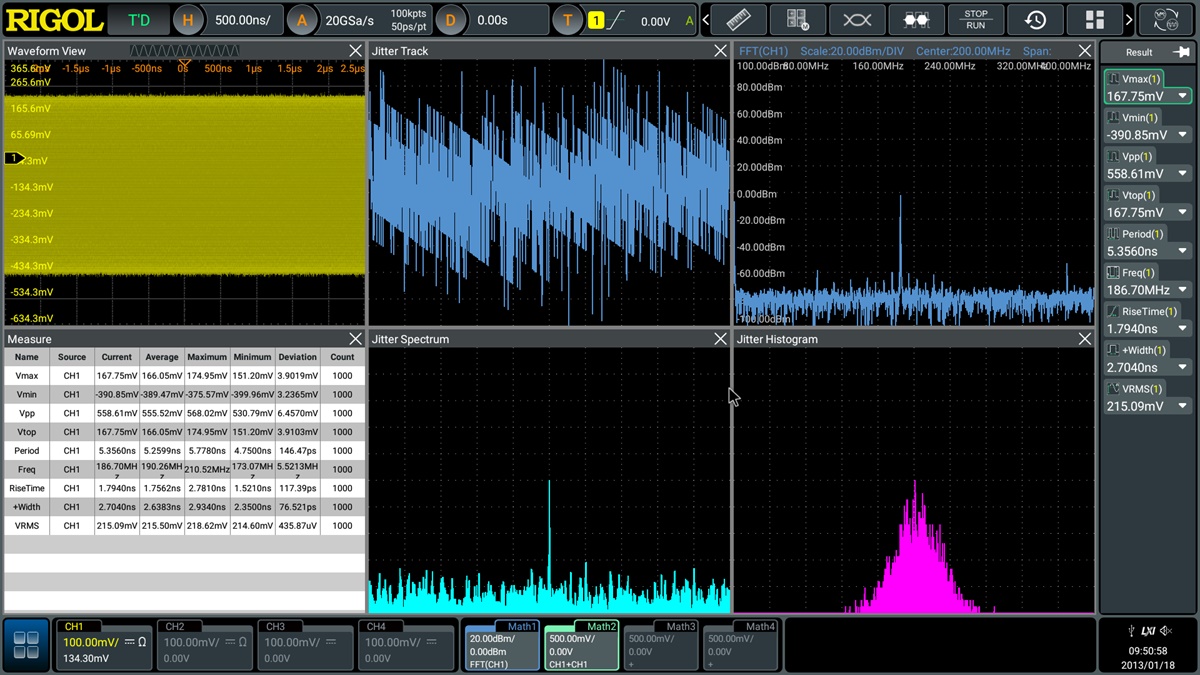

Multi-window-support The main display is a 39.6 cm (15.6″) capacitive high-definition touch screen with one button electric tilt. Multi-pane windowing supports a variety of simultaneous analysis tools, making it easier to view signals, measurements, and results. Meanwhile, the secondary 8.89 cm (3,5″) touch screen separates menues and functions from signals and analysis with a customized function and shortcut menu.

Eye diagram

Based on the excellent bandwidth and sample rate, the Rigol DS70504 oscilloscope provides the real-time eye plot and measurement with the clock recovery function, which can be applied to protocol conformance analysis. After the DS70000-JITTER option has been purchased and activated, DS70000 series supports the eye measurement for all the analog channels, and also provides measurement for several parameters of the eye diagram: eye height, eye width, eye amplitude, crossing percentage, and Q Factor. It also supports various clock recovery methods, such as Constant (automatic, semi-automatic, and manual), First-order PLL, Second-order PLL, and Explicit, to meet the demands of customers for different application scenarios.

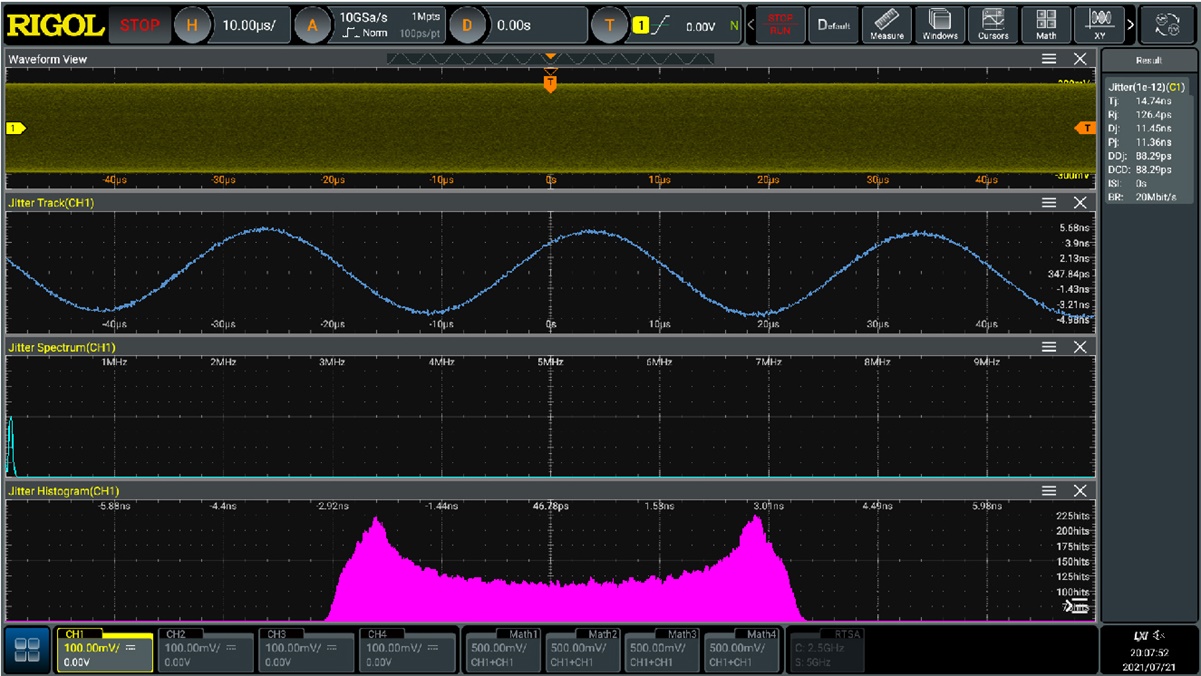

Jitter

The Rigol DS70504 provides flexible and convenient jitter measurement and analysis. After purchasing and activating the DS70000-JITTER option, you can accurately and quickly make deterministic jitter measurements for serial clock signals or parallel bus signals.

Support various clock recovery methods, including:

  • Constant: Fully automatic, semi automatic, and manual
  • First-order PLL
  • Second-order PLL
  • Explicit

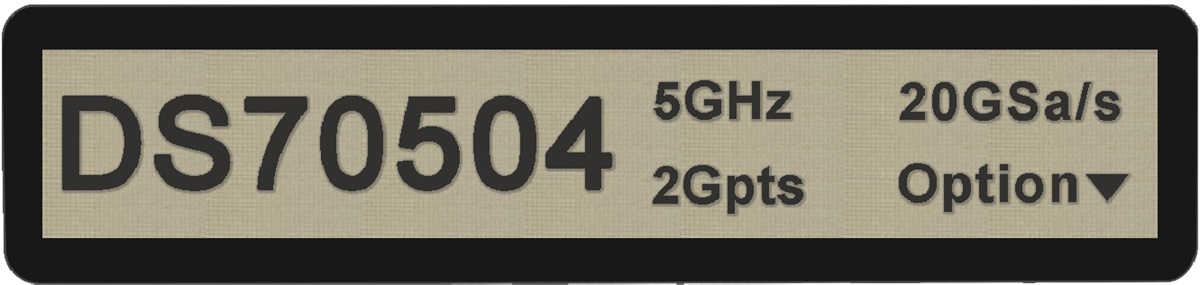

Electronic Label

The product model and its main parameters are displayed on the electronic label, sustaining its contents up to 20 years even at power-off state. The parameters will be updated automatically after upgrade to keep the information displayed on the electronic label consistent with that of the current instrument. Users can get the updated product information in a timely manner through the electronic label.

specifications

High resolution up to 16 bits

The new high resolution capability allows users to set the desired number of bits (up to 16) for the measurement and then reports the available bandwidth. This removes signal noise that can obscure important test results

Up to 1.000.000 wfm/s waveform update rate

RIGOL’s brand new UltraVison III technical platform guarantees the specifications to reach the advanced level in the industry, with the capture rate up to 1.000.000 wfm/s.

Photoelectric encoderThe photoelectric encoder operating knob guarantees more than 100.000 times of pressing operation and 1 million times of rotation operation, greatly improving the service life of the knob. With photoelectric encoders, you no longer have to worry about wear, ensuring reliable operation throughout the life of the instrument.

Multiple external interfaces

The Rigol DS70304 provides a variety of external interfaces that improve usability and data access including USB 3.0 Host andd Device, LAN (LXI), HDMI, AUX OUT, 10 MHz IN, 10 MHz Out and GPIB (option) via the USB-GPIB adaptor. For remote control over LAN, the DS70000 includes complete web control with web-based screen recording, a SCPI command interface, and ftp access to files stored on the instrument. The HDMI outputs supports use of an external monitor or video display.

Multi-window-support The main display is a 39.6 cm (15.6″) capacitive high-definition touch screen with one button electric tilt. Multi-pane windowing supports a variety of simultaneous analysis tools, making it easier to view signals, measurements, and results. Meanwhile, the secondary 8.89 cm (3,5″) touch screen separates menues and functions from signals and analysis with a customized function and shortcut menu.

Eye diagram

Based on the excellent bandwidth and sample rate, the Rigol DS70504 oscilloscope provides the real-time eye plot and measurement with the clock recovery function, which can be applied to protocol conformance analysis. After the DS70000-JITTER option has been purchased and activated, DS70000 series supports the eye measurement for all the analog channels, and also provides measurement for several parameters of the eye diagram: eye height, eye width, eye amplitude, crossing percentage, and Q Factor. It also supports various clock recovery methods, such as Constant (automatic, semi-automatic, and manual), First-order PLL, Second-order PLL, and Explicit, to meet the demands of customers for different application scenarios.

Jitter

The Rigol DS70504 provides flexible and convenient jitter measurement and analysis. After purchasing and activating the DS70000-JITTER option, you can accurately and quickly make deterministic jitter measurements for serial clock signals or parallel bus signals.

Support various clock recovery methods, including:

  • Constant: Fully automatic, semi automatic, and manual
  • First-order PLL
  • Second-order PLL
  • Explicit

Electronic Label

The product model and its main parameters are displayed on the electronic label, sustaining its contents up to 20 years even at power-off state. The parameters will be updated automatically after upgrade to keep the information displayed on the electronic label consistent with that of the current instrument. Users can get the updated product information in a timely manner through the electronic label.
