Description
The DHO1000 series digital oscilloscope is designed to meet the requirements for the design, debug, and test of the mainstream oscilloscope market.
Adopting the brand-new chipset “Centaurus” developed by RIGOL, this series achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, 100 Mpts memory depth, 12-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience for you.

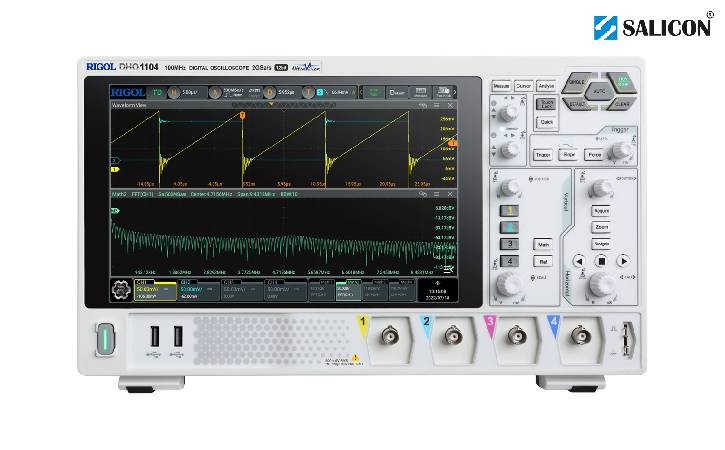

The Rigol DHO1104 is equipped with a clear 10.1″ touch display with 1280*800 pixel.
| Features | DHO1000 Series |
|---|---|
| Channel | 2 – 4 |
| Bandwidth | 70 – 200 MHz |
| Sample Rate | 1 channel: 2 GSa/s 2 channels: 1 GSa/s each 4 channels: 500 MSa/s each |
| Waveform Capture Rate | 1,500,000 wfms/s |
| Memory Depth (Standard) | 1 channel: 50 Mpts 2 channels: 25 Mpts each 4 channels: 12.5 Mpts each |
| Memory Depth (Max via Option) | 1 channel: 100 Mpts 2 channels: 50 Mpts each 4 channels: 25 Mpts each |
| Model | Bandwidth | Channel | Rise Time (typ.) |
|---|---|---|---|
| DHO1072 | 70 MHz (upgradable) | 2 | ≤ 5 ns |
| DHO1074 | 70 MHz (upgradable) | 4 | ≤ 5 ns |
| DHO1102 | 100 MHz (upgradable) | 2 | ≤ 3.5 ns |
| DHO1104 | 100 MHz (upgradable) | 4 | ≤ 3.5 ns |
| DHO1202 | 200 MHz | 2 | ≤ 1.75 ns |
| DHO1204 | 200 MHz | 4 | ≤ 1.75 ns |
12-bit ADC
High resolution & offset. Low noise signal path. More accurate measurements.
12-bit vertical resolution with 4096 levels of quantization, 16 times the quantization levels of 8-bit, adept at handling small signal testing.
10.1-inch HD Touchscreen
25.7 cm (10.1″) high-definition touchscreen for more convenient human-machine interaction.
UltraAcquire Condensation Acquisition Model
The DHO1000 provides UltraAcquire condensation acquisition mode, up to 1,500,000wfms/s high waveform capture rate, do not miss any abnormal waveform.
Flex Knob
Double multi-function knob design, no more complicated switching steps of a single knob, and achieve more efficient interaction.
Photoelectric Encode
Standard photoelectric encoder, 34-year long service life, protect your fixed assets.
