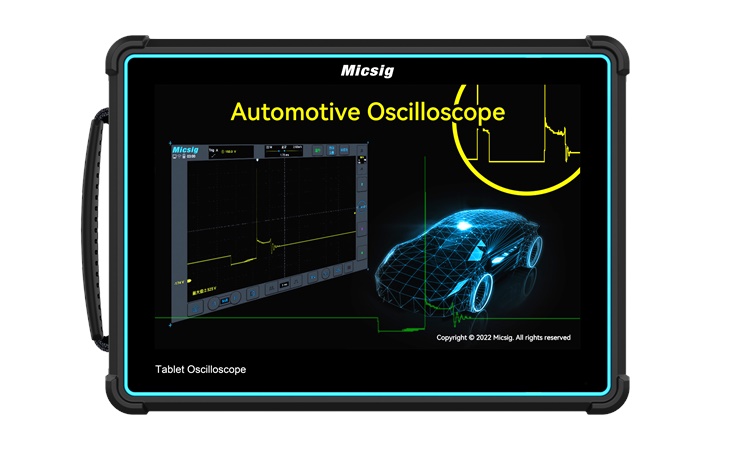

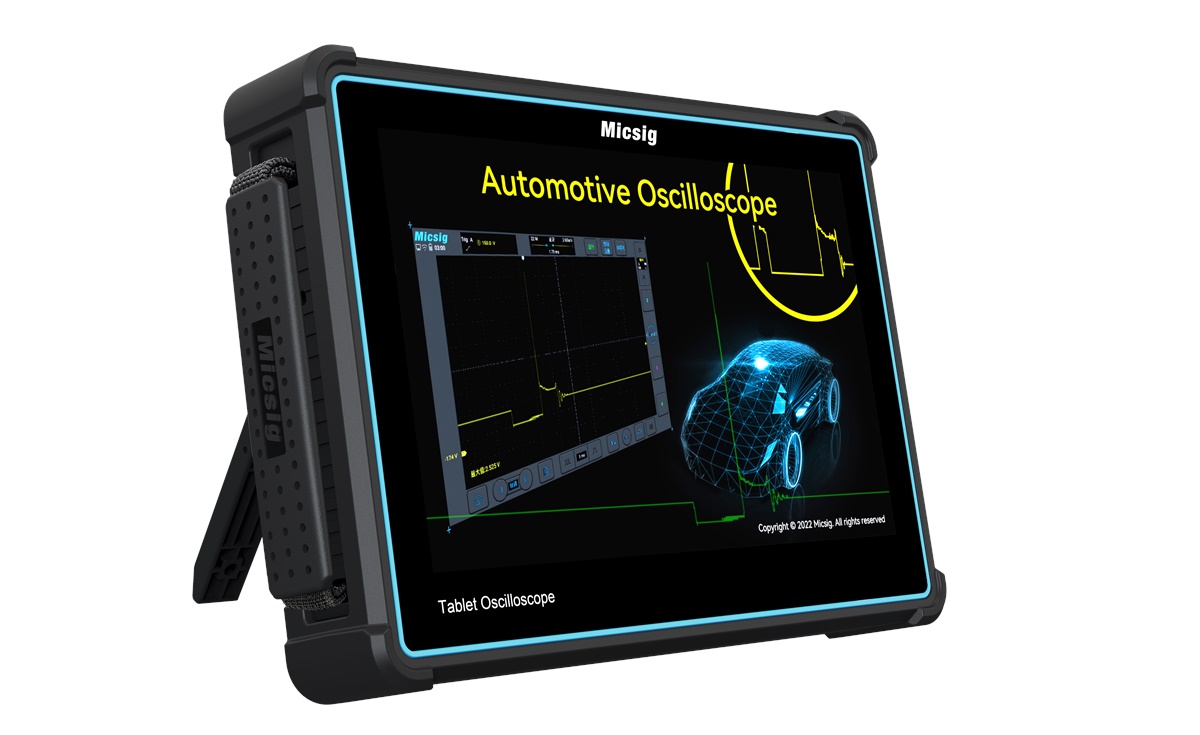

Micsig ATO2004 300MHz 4-Ch Standard Automotive Tablet Oscilloscope

Code: ATO2004

Mobile 4 channel automotive-touch tablet DSO with 200 MHz bandwidth, 2 GSa/s and 220 Mpts memory depth and a 25.7 cm touchdisplay with a resolution of 1280×800 pixel. Serial decoders for I²C, SPI, UART, CAN and LIN are already included!
Now includes NABL Calibration Certificate.
3 years warranty

208,990.00 154,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

The ATO series Automotive Tablet Oscilloscope features 2 – 4 analog channels, 100 MHz – 300MHz bandwidth, up to 2GSa/s sampling rate and up to 220Mpts memory depth, running with Micsig latest SigtestUITM multitasking system, make sure long-time stable and smooth performance.

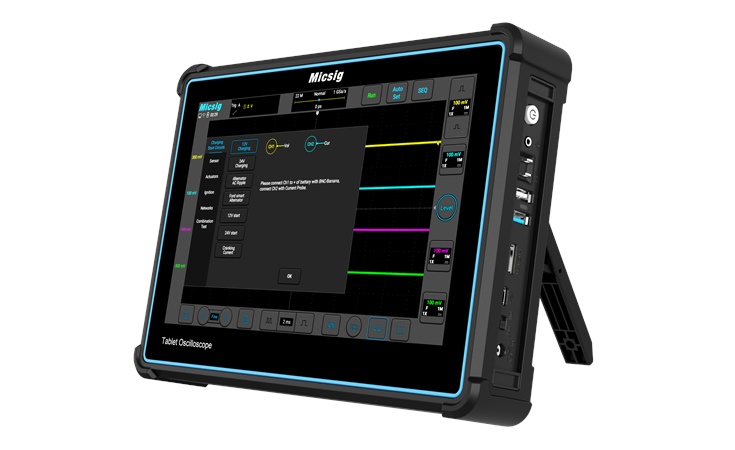

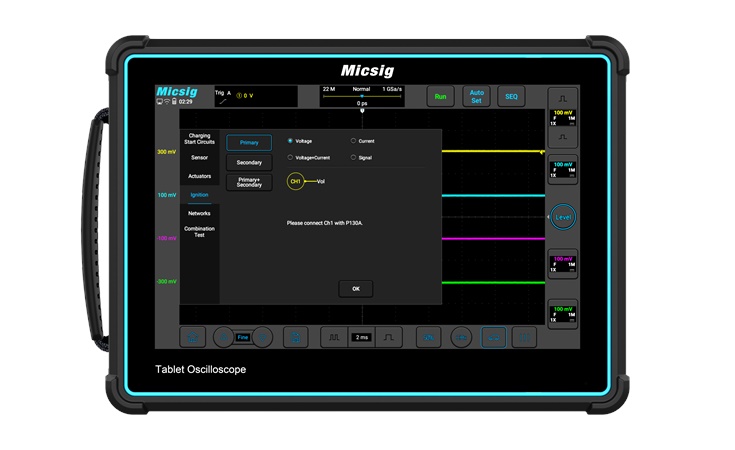

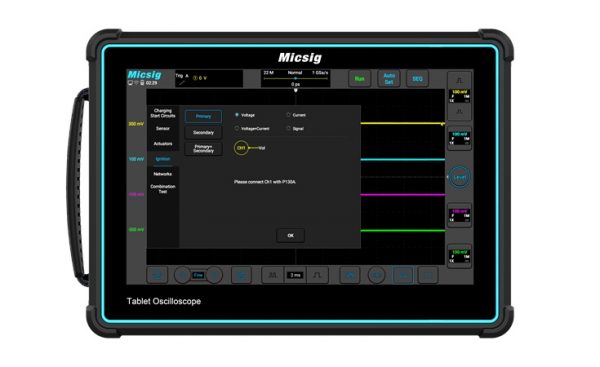

The Micsig ATO2004  provides a 10.1-inch integrated full touch screen display with 1280 x 800 pixel, combined with Micsig’s over 10 years of experience in touch control algorithms, the TO series brings touch experience to another level.

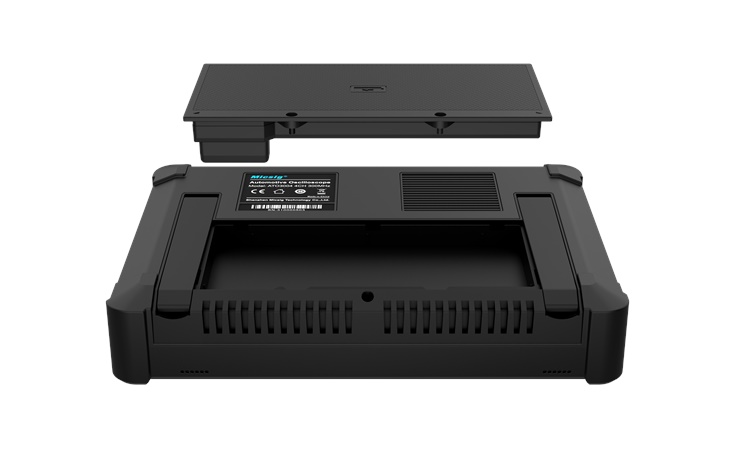

The ATO series Tablet Oscilloscope comes in a compact form factor about 5cm thick making it the go-to oscilloscope for electronic debug and test, it integrates comprehensive measurement and mathematical operation functions, supports serial bus triggering and decoding, also equipped with hardware digital filtering modules and other functions. Powered by built-in battery, it helps engineers work anywhere they work.

Features ATO1004 ATO2002 ATO2004 ATO3002 ATO3004
Channel 4 2 4 2 4
Bandwidth 100 MHz 100 MHz 200 MHz 300 MHz 300 MHz
Sample Rate 1 GSa/s on 1 channels

500 MSa/s on 4 channels

1 GSa/s on 1 channels

500 MSa/s on 4 channels

2 GSa/s on 1 channels

1 GSa/s on 4 channels

2 GSa/s on 1 channels

1 GSa/s on 4 channels

2 GSa/s on 1 channels

1 GSa/s on 4 channels

Waveform Capture Rate 78.000 wfms/s 78.000 wfms/s 300.000 wfms/s 300.000 wfms/s 300.000 wfms/s
Memory Depth 110 Mpts on 1 channels

55 Mpts on 4 channels

110 Mpts on 1 channels

55 Mpts on 4 channels

220 Mpts on 1 channels

110 Mpts on 4 channels

220 Mpts on 1 channels

110 Mpts on 4 channels

220 Mpts on 1 channels

110 Mpts on 4 channels

Serial decode (CAN, LIN, SPI, I2C, UART         Standard           Standard         Standard             Standard             Standard

You will find the specifications of the ATO series here.
