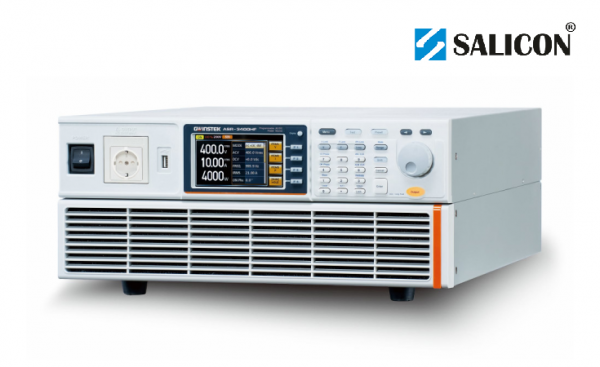

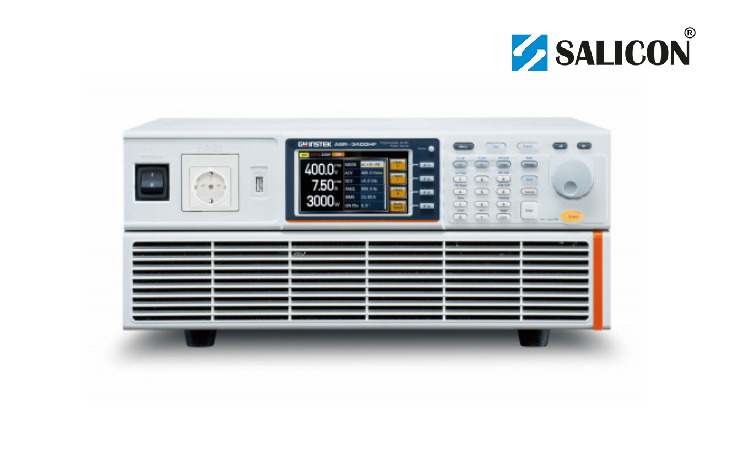

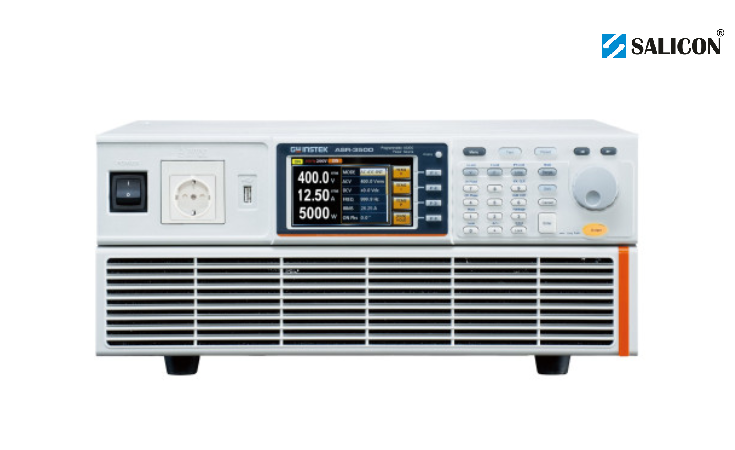

GW Instek ASR-3500 Programmable AC/DC Power Source 5kVA, Euro socket, RS232, USB+LAN

Description

GW Instek ASR-3500 is a programmable AC/DC power supply from the ASR-3000 series with Schuko (European) Socket, designed for advanced testing of electronic equipment, automotive systems, power supplies, and household devices. With an output power of up to 5000 VA, it supports AC, DC, and AC+DC modes, delivering maximum voltages of 400 Vrms AC and ±570 V DC, and peak currents of 50 A (100 V) or 25 A (200 V).

Key Features:

• Rated Power: 5000 VA
• Output Voltage Range: AC 0–400 Vrms, DC 0–±570 V
• Maximum Current: 50 A (100 V), 25 A (200 V)
• AC Frequency: Up to 999.9 Hz
• Output Modes: AC, DC, AC+DC, external, and superimposed signals
• Sequence and simulation functions for power line disturbances (sags, surges, dropouts, etc.)
• Arbitrary waveform function (16 memories, 4096 points each)
• Voltage and current harmonic analysis up to the 100th order
• Integrated measurements: Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, IpkH, P, S, Q, PF, CF, THDv, THDi
• Protections: OVP, OCP, OPP, OTP, AC Fail, Fan Fail
• Remote sense function to compensate for load cable voltage drop
• Memory for 10 presets and 16 arbitrary waveforms

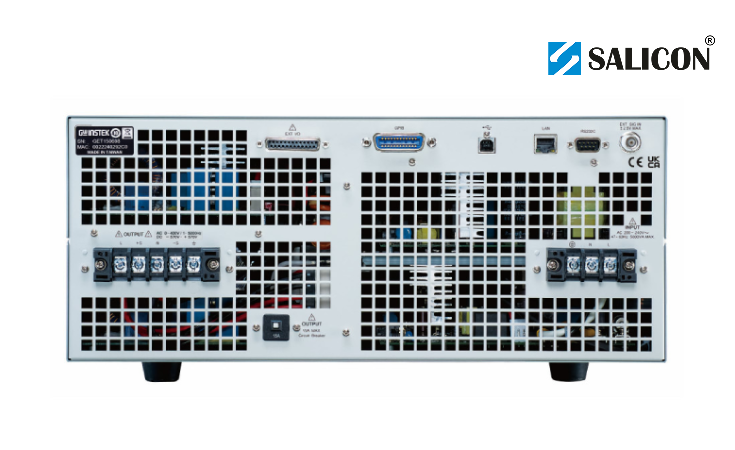

• Standard interfaces: USB, LAN, RS-232, GPIB, external I/O
• 4.3″ color TFT-LCD display
• Dimensions: 430 × 176 × 530 mm; Weight: ~25 kg
• Schuko (European) socket

Included Accessories:

• Safety guide
• Input/output terminal covers (with remote sense)
• GRA-442-E rack adapter
• GTL-246 USB cable

The ASR-3500 is ideal for development testing, compliance verification, and simulating grid conditions for automotive chargers, power supplies, AC motors, UPS systems, and electronic components.
