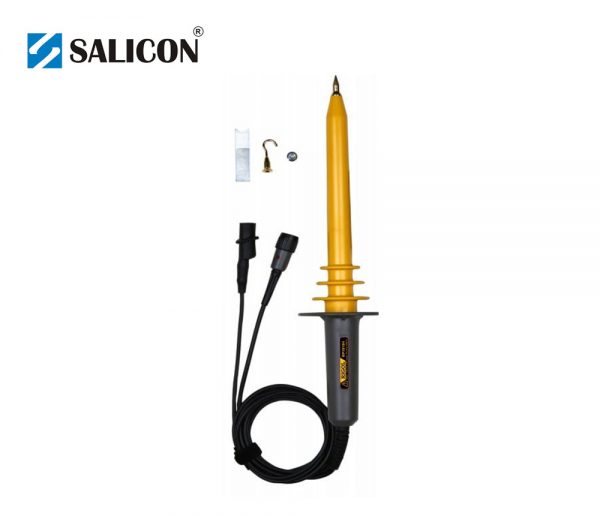

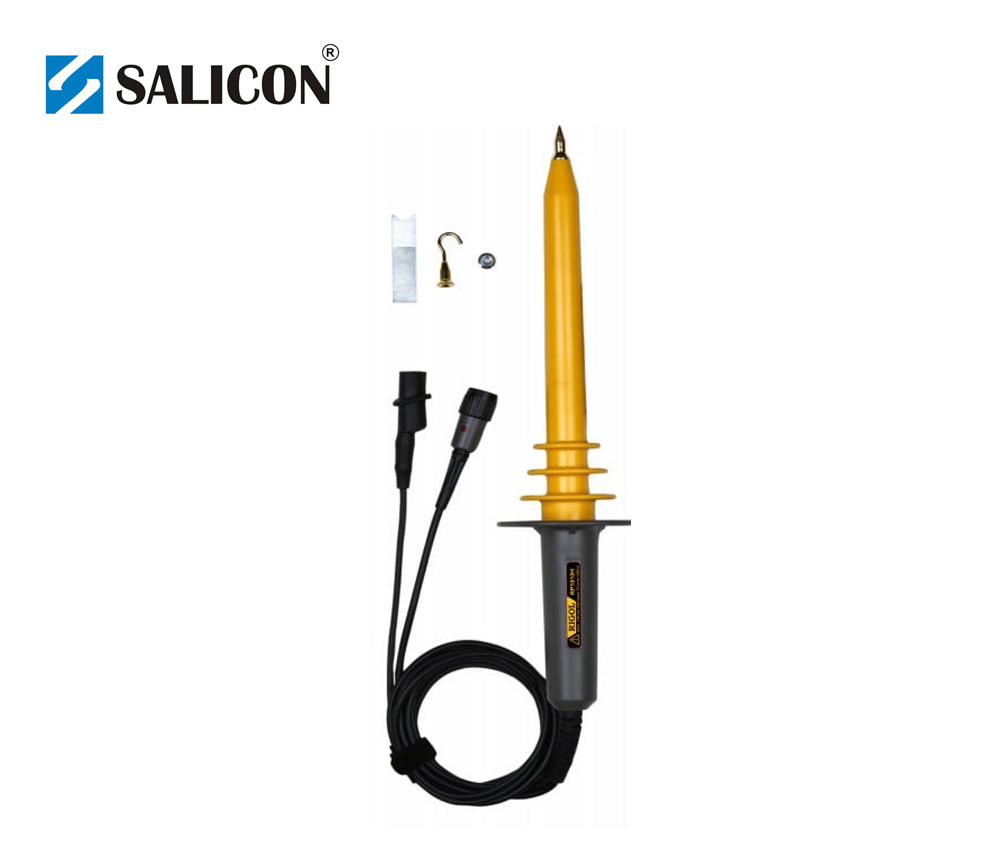

Rigol RP1010H Oscilloscope 40 MHz Passive High Voltage Probe
Passive probe – 10kV high voltage, compatible with all of RIGOL oscilloscopes.
For digital oscilloscopes, the signal under test needs to be connected to the measurement channel via various oscilloscope probes or 50 ohm cables.The Probing is very important to making quality measurements. If the probe performance is not adequate or if you did not select the proper probe for your application, you will see distorted or misleading signals on your oscilloscope.
There are two kinds of probes, one is passive probe, another one is active probe. active probe requires power while passive probe does not. For general-purpose measurements(<600MHz), passive high-impedance resistor divider probes are good choices in general. For high-frequency applications (>600 MHz), active probes are the way to go. They cost more than passive probe and their input voltage is limited, but because of their significantly lower capacitive loading, they give you more accurate insight into fast signals.
Manufacturer Specs
| Specification | |
| Max. Working Voltage | DC: 0 ~ 10 KV DC AC: pulse ≤ 20 KV peak to peak AC: sine wave = 7 KVrms |
| Signal/Noise | DC ≥ 60 dB (1 KHz), ≥ 50 dB (1 MHz) |
| Bandwidth | DC ~40 MHz (-3 dB) |
| Division Ratio | 1:1000 |
| Rise Time | ≤ 8.8 ns |
| Input Impedance | 100 MΩ ± 5% |
| Input Capacitance | 3.0 pF ± 0.5 pF |
| Compensation Range | 5 pF ~ 50 pF |
| Cable Length | 2.0 meter (± 0.2 M) |
| Temperature Coefficient | ≤ 200 PPM /°C |
| Safety App. | CE |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ +70°C |
| Weight / Dimension | 250 g /F75 x 340 mm L |
| Rigol Probes – Overview Specification | ||||||
| Model number | Attenuation ratio | Bandwidth | Input R | Max. Input voltage | Rigol scope compatibility | Recommended applications |
| Passive high resistance probe | ||||||
| RP2200 | 1:1 or 10:1 | 1x: DC…7 MHz 10x: DC…150 MHz |
1x: 1 MΩhm ±2% 10x: 10 MΩhm ±2% |
1x: CAT II 150 VAC 10x: CAT II 300 VAC |
All Rigol scopes | Small signal test (1x), general purpose test |
| RP3300A | 10:1 | 10x: DC…350 MHz | 10x: 10 MΩhm ±2% | 10x: CAT II 300 VAC | All Rigol scopes | Small signal test (1x), general purpose test |
| RP3500A | 10:1 | DC…500 MHz | 10 MΩhm ±2% | CAT II 300 VAC | All Rigol scopes | General purpose test |
| RP5600A | 10:1 | DC…600 MHz | 10 MΩhm ±2% | CAT II 300 VAC | DS4000 series*, DS6000 series | General purpose test |
| Passive low resistance probe | ||||||
| RP6150A | 10:1 | DC…1.5 GHz | 500 Ωhm ±10 Ωhm |
CAT I 7 VAC | DS4000 series*, DS6000 series | High frequency signal ended small signal test |
| Passive high voltage probe | ||||||
| RP1300H | 100:1 | DC…300 MHz | 100 MΩhm | CAT I 2000 V(DC+AC) CAT II 1500 V(DC+AC) |
All Rigol scopes | High voltage test |
| RP1010H | 1000:1 | DC…40 MHz | 100 MΩhm, 3 pF ±0.5 pF |
0…10 kVDC, AC pulse ≤20 kVpp/sine =7 kVRMS |
All Rigol scopes | High voltage test |
| RP1018H | 1000:1 | DC….150 MHz | 200 MΩhm, 1.5 pF |
CAT II 18 kV(DC+AC) CAT III 12 kV(ACRMS) |
All Rigol scopes | High voltage test |
| Active differential probe | ||||||
| RP7150 | 10:1 | DC…1500 MHz | Differential 50 kΩhm ±2% Single-ended 25 kΩhm ±2% |
~30 Vp; CAT I | DS4000 series*, DS6000 series | Differential/single-ended high frequency signal test |
| RP7080 | 10:1 | DC…800 MHz | Differential 50 kΩhm ±2% Single-ended 24 kΩhm ±2% |
~30 Vp; CAT I | DS4000 series*, DS6000 series | Differential/single-ended high frequency signal test |
| Active single-ended probe | ||||||
| RP7150S | 10:1 | DC…1500 MHz | 100 kΩhm ±1% | ~30 Vp; CAT I | DS4000 series*, DS6000 series | Single-ended high frequency signal test |
| RP7080S | 10:1 | DC…800 MHz | 100 kΩhm ±1% | ~30 Vp; CAT I | DS4000 series*, DS6000 series | Single-ended high frequency signal test |
| High voltage differential | ||||||
| RP1025D | x20, x50, x200 | 25 MHz | Differential 4 MΩhm/1.2 pF Single-ended 2 MΩhm/2.3 pF |
x20: =140 Vpp, (45 Vrms or DC) x50: =350 Vpp, (110 Vrms or DC) x200: =1400 Vpp, (450 Vrms or DC) |
All Rigol scopes | High voltage differential/single-ended signal test |
| RP1050D | x100, x200, x1000 | 50 MHz | Differential 100 MΩhm/1.2 pF Single-ended 50 MΩhm/2.3 pF |
x100: =700 Vpp, (230 Vrms or DC x200: =1400 Vpp, (460 Vrms or DC) x500: =3500 Vpp, (1140 Vrms or DC) x1000: =7000 Vpp, (2300 Vrms or DC) |
All Rigol scopes | High voltage differential/single-ended signal test |
| RP1100D | x100, x200, x1000 | 100 MHz | Differential 100 MΩhm/1.2 pF Single-ended 50 MΩhm/2.3 pF |
x100: =700 Vpp, (230 Vrms or DC) x200: =1400 Vpp, (460 Vrms or DC) x500: =3500 Vpp, (1140 Vrms or DC) x1000: =7000 Vpp, (2300 Vrms or DC) |
All Rigol scopes | High voltage differential/single-ended signal test |
