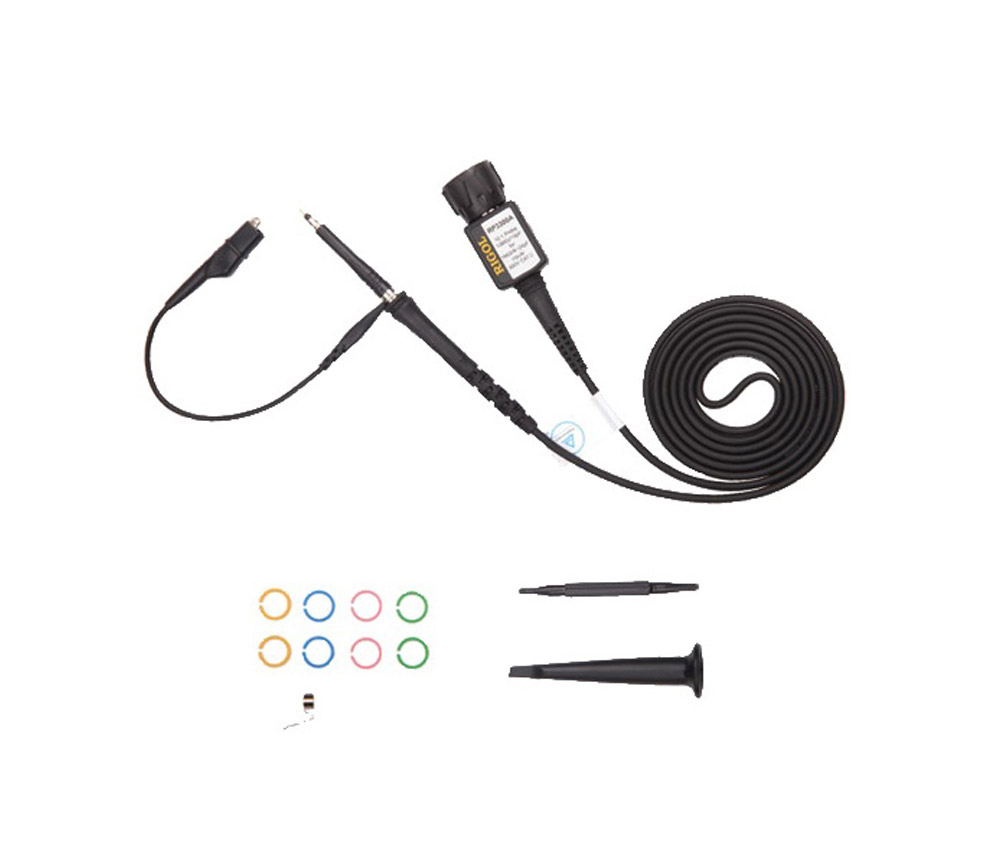

Rigol PVP2350 (10:1)

Code: PVP2350

High Z passive probe. Switchable.

Specifications 10 : 1 10 : 1
Input Impedance 1 MΩ ± 1% 10 MΩ ± 1%
Bandwidth DC ~ 35 MHz DC ~ 350 MHz
Compensation Range 6 pF ~ 24 pF 6 pF ~ 24 pF
Max. Input Voltage CAT II 300 VAC CAT II 300 VAC
Cable Length 1.4 m 1.4 m

2 years warranty

₹7,174.00 ₹6,726.00

2 in stock (can be backordered)

2 in stock (can be backordered)

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

High Z passive probe

Specifications 10 : 1
Input Impedance 10 MΩ ± 2%
Bandwidth DC ~ 350 MHz
Compensation Range 6 pF ~ 24 pF
Max. Input Voltage CAT II 300 VAC
Cable Length 1.4 m

Downloads

Datasheet

PVP2350 Data sheet

Language: English
File Size: 324.93 KiB
Release Date: 20.09.2019
