Rigol DP813A

Code: DP813A

High quality programmable DC power supply with single output channels (+8 V / 20 A or + 20 V / 10 A, DC, max 200 W).

3 years warranty



94,490.00 86,490.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

The Rigol DP813A belongs to the Rigol DP800 series and has 1 channel. The power supply has two ranges that can be used on the single channel, 0-8V/0-20A and 0-20V/0-10A. Furthermore, the lab power supply USB Host, USB Device, LAN, RS232, Digital I/O interfaces and a color display. These Rigol lab power supplies have a good price / quality ratio, are very accurate and have a power up to 200W. The lab power supplies are equipped with a clear display that shows the built-in voltage, current and power measurements. They can also be programmed with the supplied software via a PC.

Models

Model DP813 DP813A
Power 200W 200W
Resolution 10 mV / 10 mA 1 mV / 1 mA
USB Host, USB Device
yes
yes
LAN, RS232, digital I/O
yes
Colour screen
yes

We can also supply other models from the DP800 series. If you are interested do not hesitate to contact us.

Specifications

Channels 1
Power 200W
Voltage Range 1: 0-8V
Range 2: 0-20V
Current Range 1: 0-20A
Range 2: 0-10A
Resolution 1mV/1mA
Connectivity USB host/device0
Display 3.5″ TFT
Dimensions 239 x 157 x 418 mm
Weight 10.5 kg

Accessories

The DP813 comes standard with:

  • Power cord
  • USB cable
  • Spare fuses
  • Short circuit equipment

Special Features

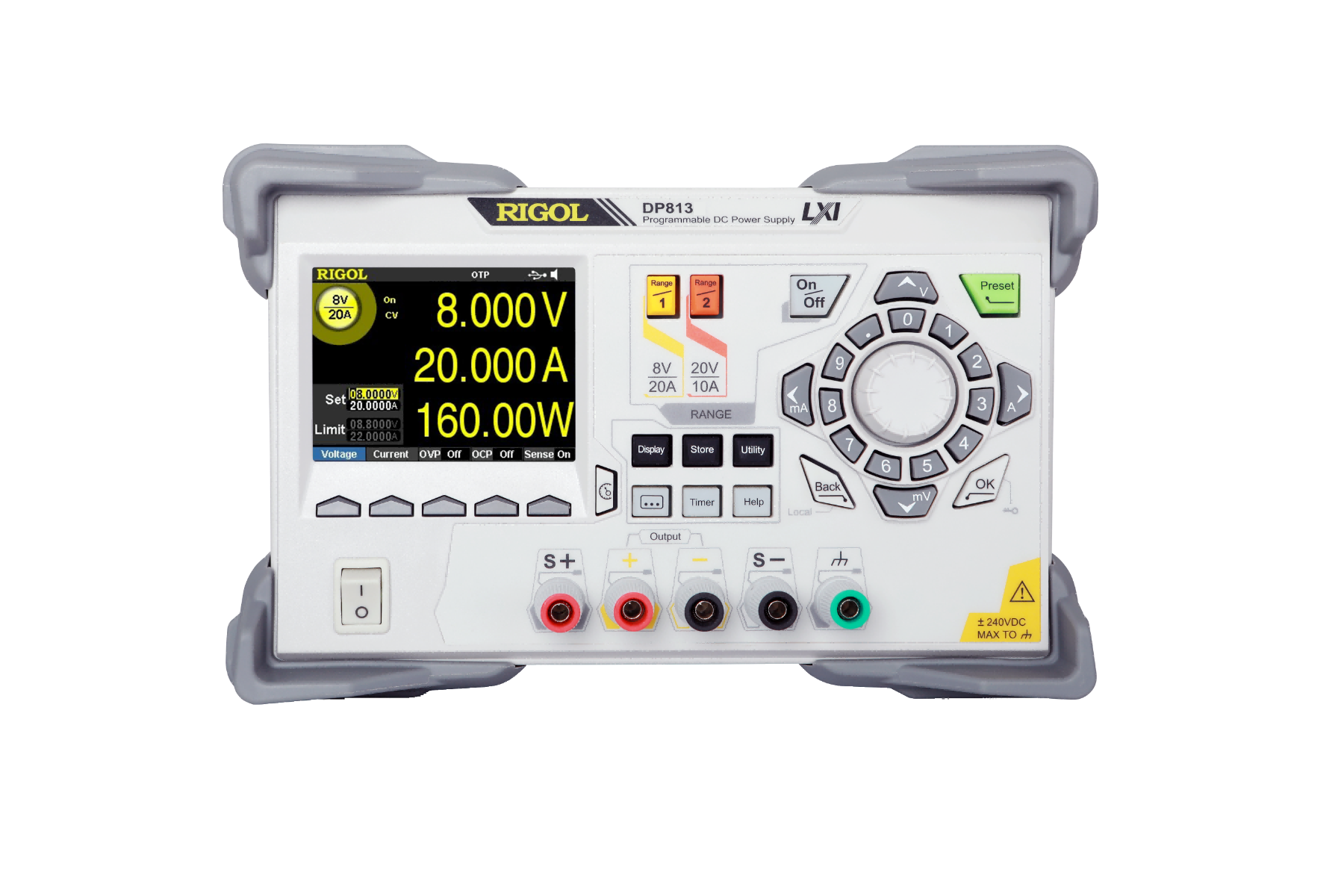

Clearly Arranged Display

All important data such as voltage, current, power, and limit values can easily be displayed on the display with a diagonal size of 8.9 cm (3.5″) and a resolution of 320×240 pixels.

Output Monitoring

The monitor can monitor the current output state of the instrument. When the user-defined monitor condition is met, the instrument executes the corresponding operation according to the setting in “Stop Mode”, like showing a warning, shut off the output or produce a beep sound.

Display Signal Curves

Changes in the measurement values and settings can be presented very well and in real time using the integrated signal curve display. This makes it possible to detect things like current draw peaks, for example when the current limit is adjusted.

Programmable Timer

The voltage and current settings can be changed automatically with a timer control. Up to 100 settings can be stored for this purpose, and then activated one after another for variable intervals (specified in seconds).

Output Analysis

The analyzer can analyze the file recorded and provides the analysis results, including the number of groups, median, mode as well as the average, VAR, range, minimum, maximum and mean deviation of the voltage, current or power of different channel.

Trigger Output

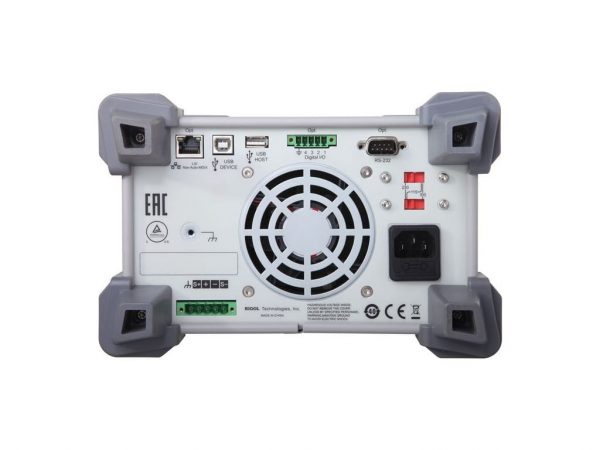

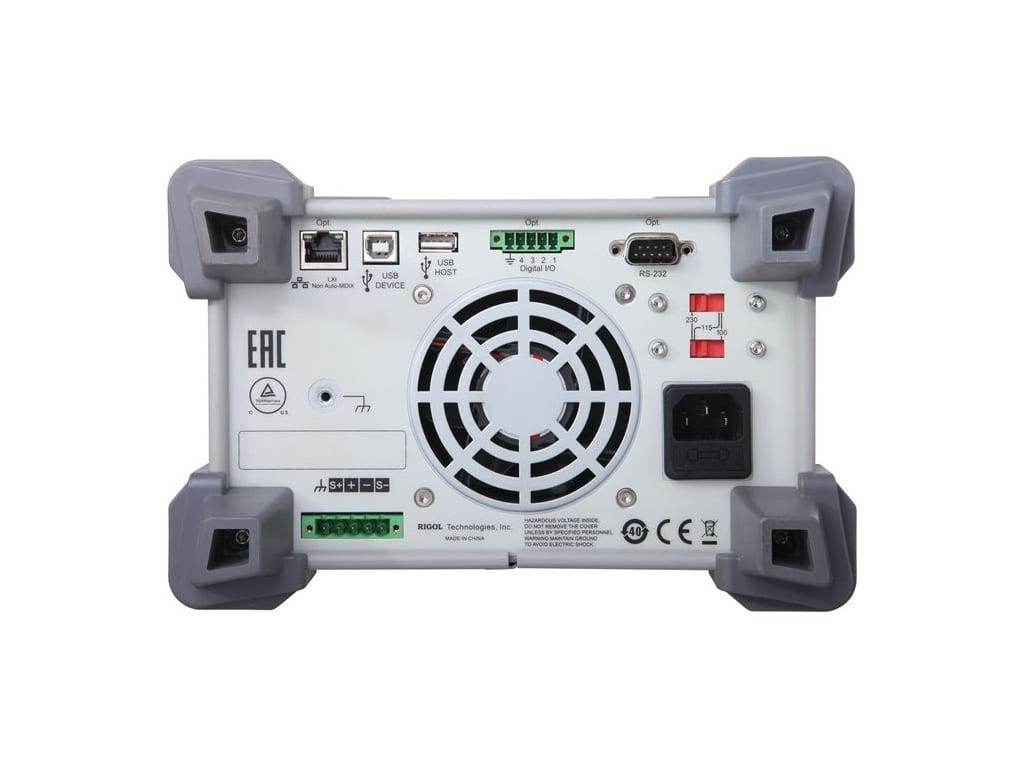

The rear panel of DP800A provides a digital I/O interface (as shown below) which supports trigger input and trigger output. The 4 data lines are mutually independent and can be used as trigger input line or trigger output line separately.

Excellent connectivity and remote control via SCPI / LabView

The Rigol DP821 can be controlled remotely with SCPI commands through a variety of interfaces. The following interfaces are available:

USB
LAN
GPIB (optional)

Control of the device can be integrated into your own applications, or by using LabView via these interfaces.

Accessories

Downloads

Datasheet


Rigol DP800(A) Datasheet

Language: English
File Size: 2.74 MiB
Release Date: 27.12.2018

Driver


DP800 IVI Driver Download

File Size: 488.10 KiB
Release Date: 27.12.2018

Manual


Rigol DP800(A) Manual

Language: English
Version: UGH04109-1110
File Size: 2.09 MiB
Release Date: 01.06.2016

Rigol DP800(A) Quickguide

Language: English
Version: QGH03104-1110
File Size: 1.81 MiB
Release Date: 01.08.2013

Rigol DP800(A) SCPI Programming Guide

Language: English
Version: PGH03108-1110
File Size: 3.80 MiB
Release Date: 01.12.2015

Rigol How To: Instrument Communication VISA / USB

Language: English
File Size: 435.80 KiB
Release Date: 04.08.2010

Rigol Software Installation and Use

Language: English
File Size: 551.36 KiB
Release Date: 10.04.2014

Rigol: Active Loads and the DP800 and DP1000 Series (Application Note)

Language: English
File Size: 411.29 KiB
Release Date: 19.12.2013

Software


NI-VISA Runtime Engine 15.0

Version: 15.0
File Size: 83.96 MiB
Release Date: 08.03.2015
O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)

Rigol DP811A Software

Release Date: 27.12.2018

Rigol DP831 Software

Release Date: 27.12.2018

Rigol Ultra Sigma Software Download

Language: English
Version: 00.01.06.01
File Size: 521.91 MiB
Release Date: 30.10.2015
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Ultrapower Download

File Size: 3.15 MiB
Release Date: 27.12.2018

Specifications

Specifications

Channels 1
Power 200W
Voltage Range 1: 0-8V
Range 2: 0-20V
Current Range 1: 0-20A
Range 2: 0-10A
Resolution 1mV/1mA
Connectivity USB host/device0
Display 3.5″ TFT
Dimensions 239 x 157 x 418 mm
Weight 10.5 kg
