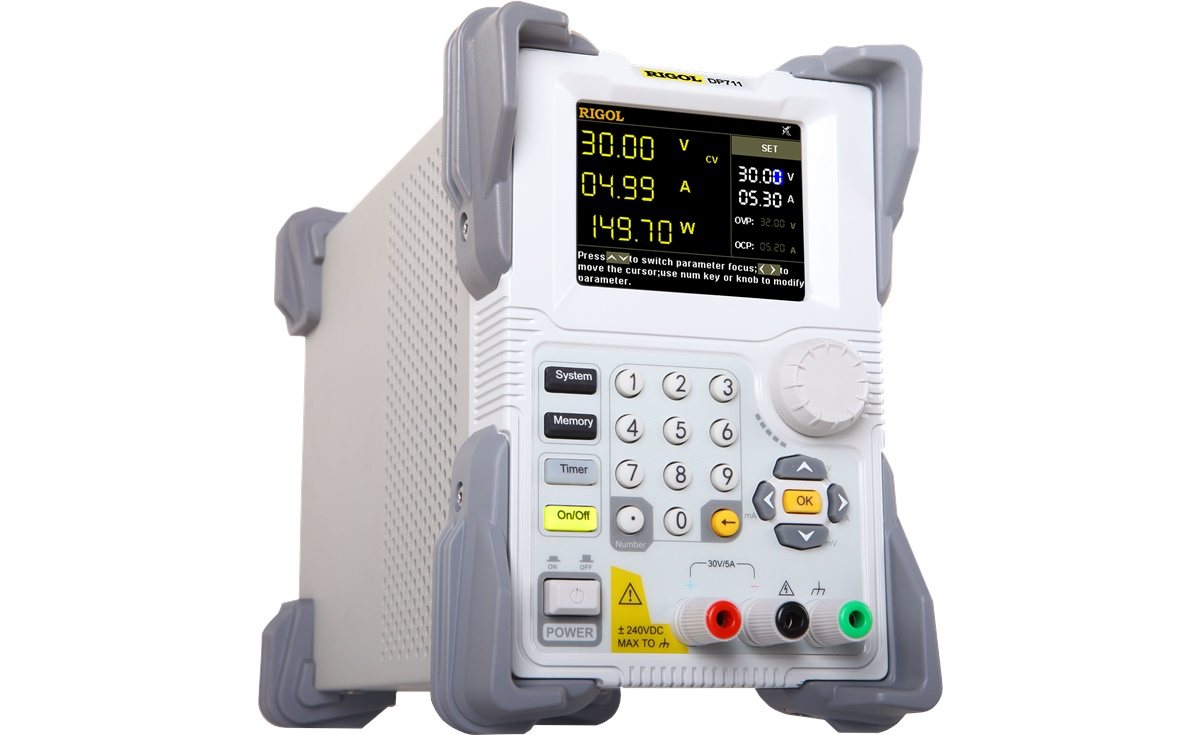

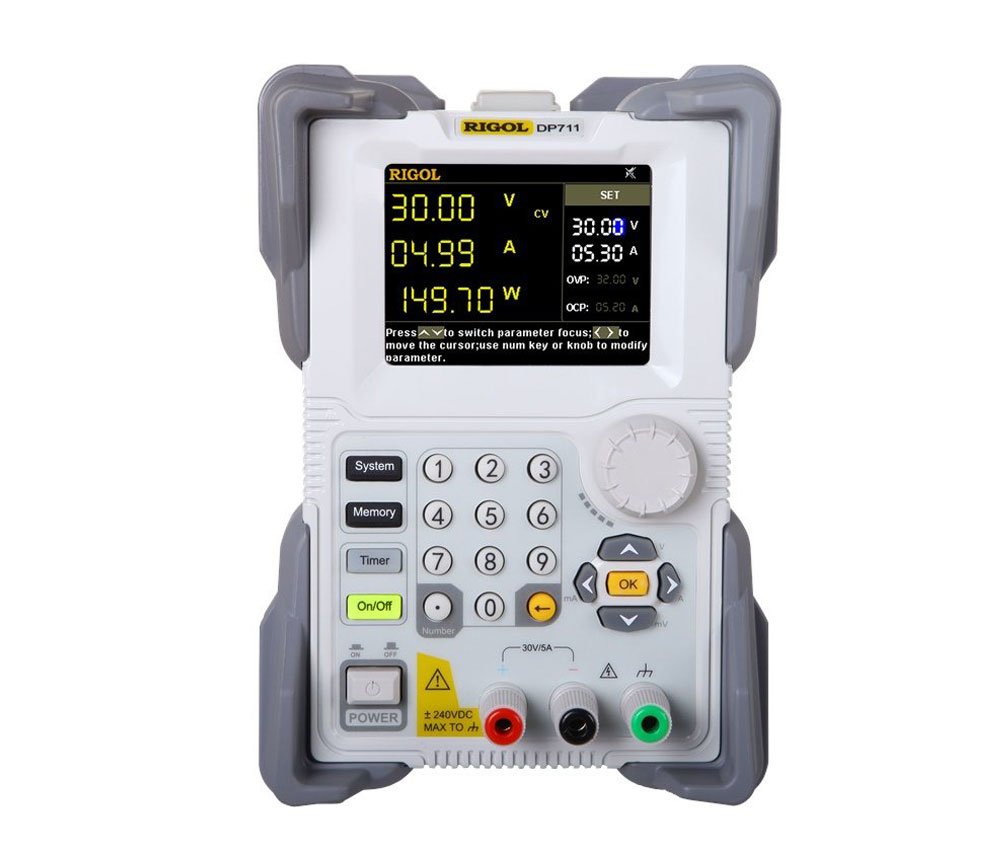

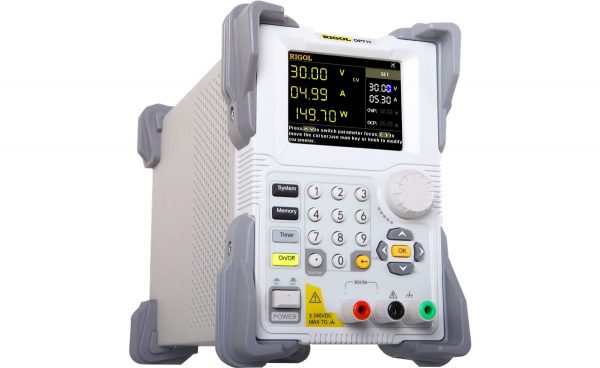

Rigol DP711

Code: DP711

High quality programmable DC power supply with one output channel (+30 V/5 A, max 150 W).

3 years warranty

47,578.00 44,604.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

The Rigol DP711 is a very high quality programmable laboratory power supply with one DC output (30 V/5 A) and a maximum power output of 150 W. Like all Rigol devices, the power supply features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure. The Rigol DP711 features a relative large (8.9 cm / 3.5″) and easy to read TFT display. A timer control can be used to set the output signal to different values in up to 2048 groups.

Model-Overview DP711 DP712
Voltage / Current +30 V / 5 A +50 V / 3 A
I/O Interfaces RS-232 RS-232
Display 8,9 cm TFT 8,9 cm TFT

Special Features

Clear and intuitive user interface

You can clearly view the status of the instrument from its intuitive user interface. The help information is displayed in real time at the bottom of the interface, convenient for you to operate.

Overvoltage and overcurrent protection

You can set thresholds for OVP and OCP values. If overvoltage or overcurrent occurs, the power supply shuts down the output automatically, and then a prompt message is displayed.

Powerful timing output function

When the timing output is enabled, the system will configure the voltage, current, and the duration time based on the preset timer parameters, so as to provide varied voltage and/or current output for the load.

Convenient trigger function

When multiple power supplies are in serial or parallel connection, enabling the external trigger function can realize the synchronous output for multiple power supplies.

Easy-to-use file storage

It supports storing and recalling state files and timer files, and allows you to restore the instrument settings to defaults.

Specifications

Specifications Rigol DP711
Outputs 1
Output Power (max.) 150 W
Overtemperature shut down 55 °C
Working Temperature 0 °C to 40 °C
Cooling Method Fan cooling
Output Voltage Rigol DP711
Output Voltage (max.) 0 to +30 V/DC
Accuracy ±0.05% + 20 mV
Resolution 10 mV (1 mV with high res. option)
Overvoltage Protection 0.01 V to 33 V
Load Regulation <0.01% + 2 mV
Line Regulation <0.01% + 2 mV
Ripple and Noise <500 µVrms / 3 mVpp
Output Current Rigol DP711
Output Current (max.) 5 A/DC
Accuracy ±0.2% + 10 mA
Resolution 10 mA (1 mA with high res. option)
Overcurrent Protection 0.01 A to 5,5 A
Load Regulation <0.01% + 2 mA
Line Regulation <0.01% + 2 mA
Ripple and Noise <2 mArms
Programmable power supply Rigol DP711
Display 8.9 cm (3.5″) TFT-LCD
Resolution 320 × 240 Pixel

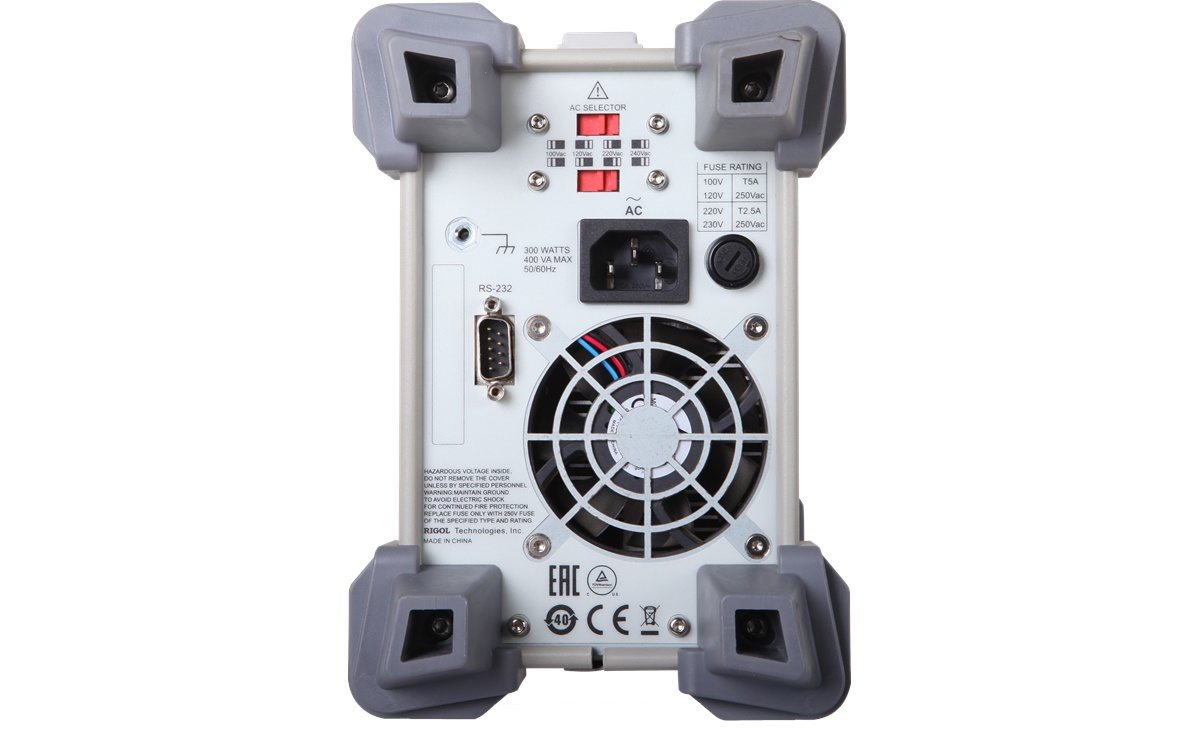

Additional Interfaces RS232
Dimensions (W × H × D) 14 cm × 20.2 cm × 33.2 cm
Weigh 6.9 kg
Input 230 V/AC, 220 V/AC, 120 V/AC oder 110 V/AC (adjustable)

Downloads

Datasheet


Rigol DP711 Datasheet

File Size: 2.15 MiB
Release Date: 27.12.2018

Manual


Rigol DP700 Manual

Language: English
Version: UGH05101-1110
File Size: 1.56 MiB
Release Date: 01.04.2016

Rigol DP700 Programming Guide

Language: English
Version: PGH05101-1110
File Size: 1.34 MiB
Release Date: 01.06.2016

Rigol DP700 Quick Guide

Language: English
Version: QGH05101-1110
File Size: 417.21 KiB
Release Date: 01.03.2016

Rigol Software Installation and Use

Language: English
File Size: 551.36 KiB
Release Date: 10.04.2014

Software


NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit),
8 (64/32 Bit), 7 (64/32 Bit)
