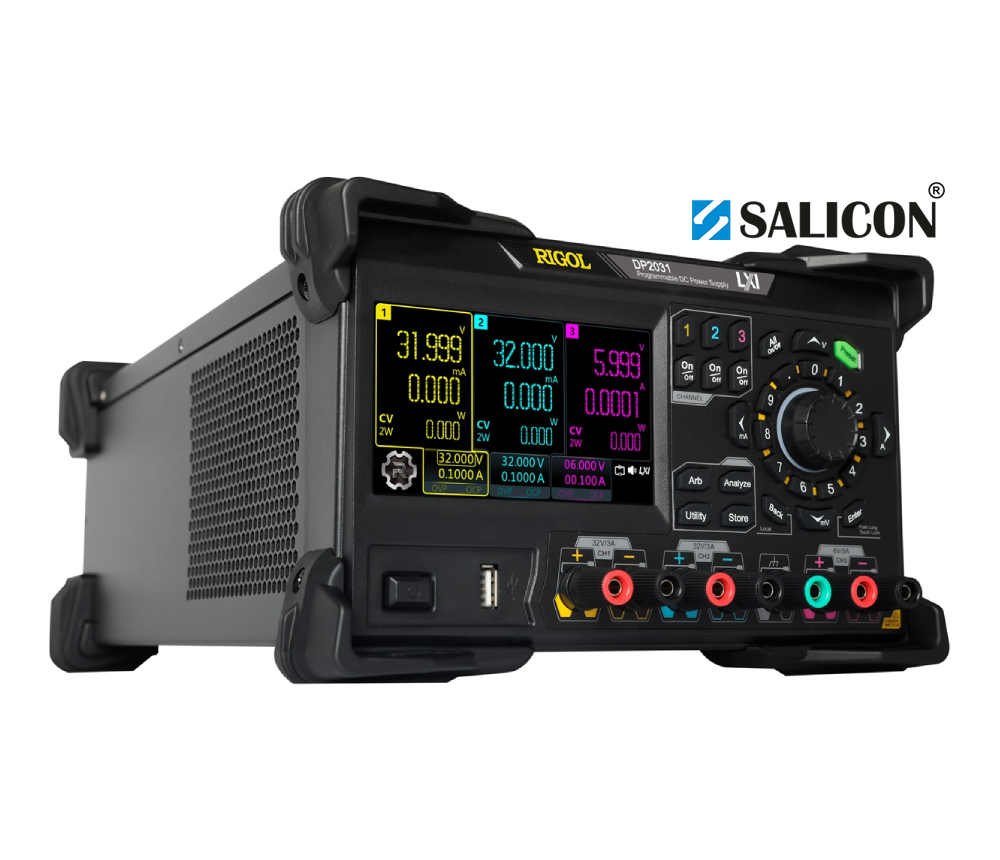

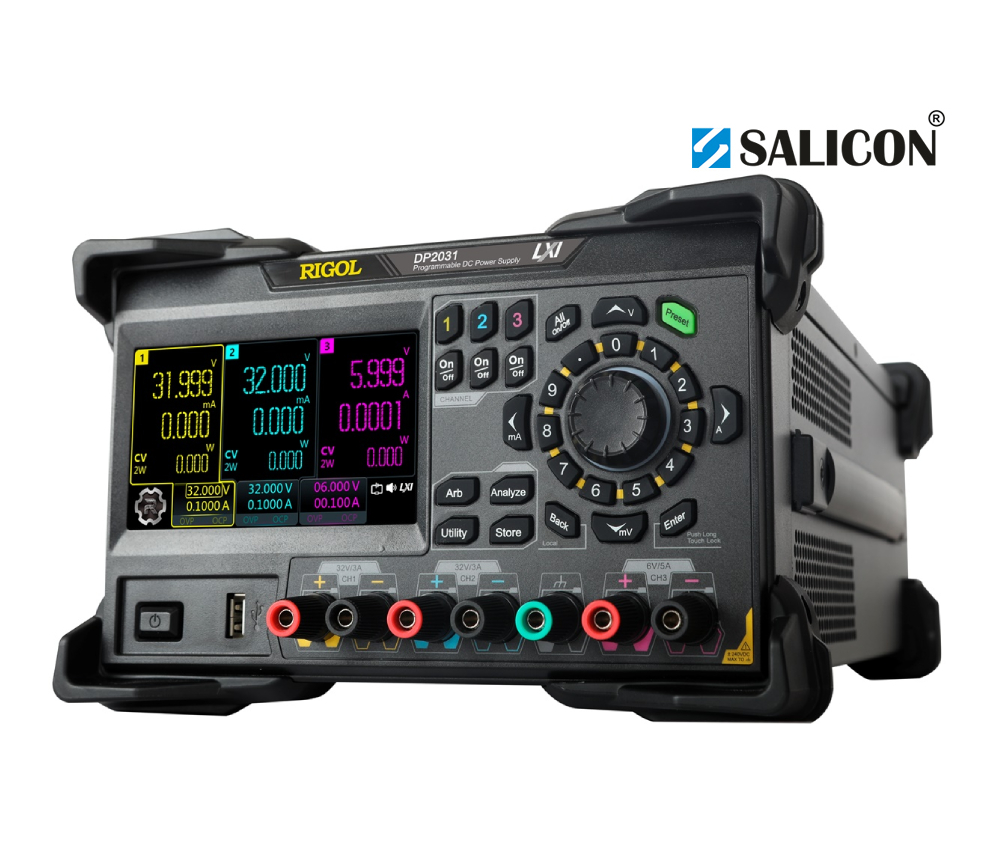

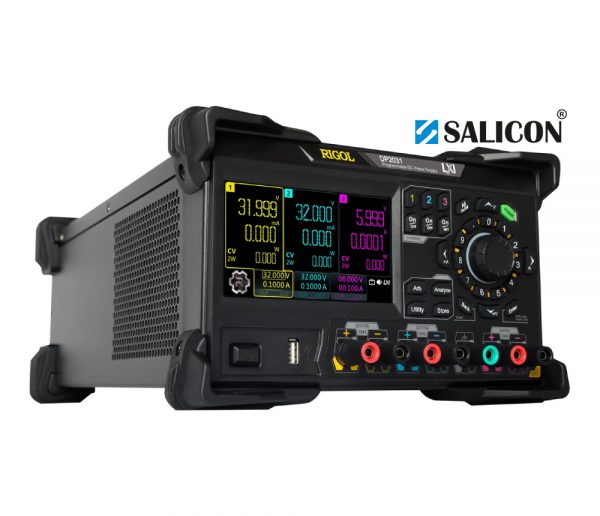

Rigol DP2031

Code: DP2031

DC power supply with three isolated independent output channels (+32 V / 3 A, +32 V / 3 A, +6 V / 10 A, DC, max 222 W). Internal series / parallel connections for CH1 and CH2.

162,934.00 152,751.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

The Rigol DP2031 are programmable laboratory power supplies with 3 switchable outputs (+32 V/3 A, +32 V/3 A and +6V/10 A) isolated independent channels with a maximum total power of up to 210 W.

Like all Rigol devices, the Rigol DP2031 features a very well constructed and easy to use interface, which also offers comprehensive ease-of-use functions, such as programmable voltage curves. The menu has an intuitive structure.

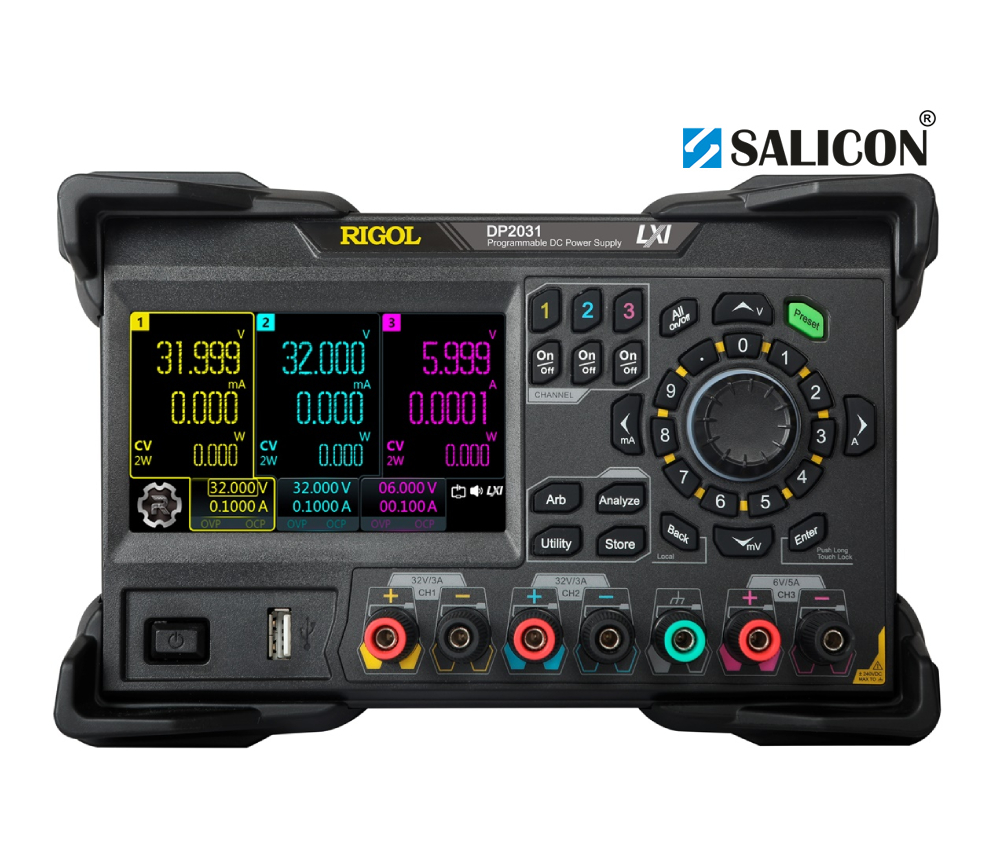

The Rigol DP2031 features a relative large (10,9 cm / 4.3″) and easy to read LCD color touch screen.

In addition to the normal digital displays for voltage, current, and power, these values can also be displayed as signal curves.

A timer control can be used to set the output signal to different values in up to 2048 steps.

Internal series/parallel connections for CH1 and CH2.

Overview DP2032
Voltage / Current CH1 0 – +32 V / 0 – 3 A
Voltage / Current CH2 0 – +32 V / 0 – 3 A
Voltage / Current CH3 0 – +6 V / 0 – 10 A

You will find the specifications of the DP2000 series here.

A-Models
Voltage Resolution 1 mV/0.1 mA

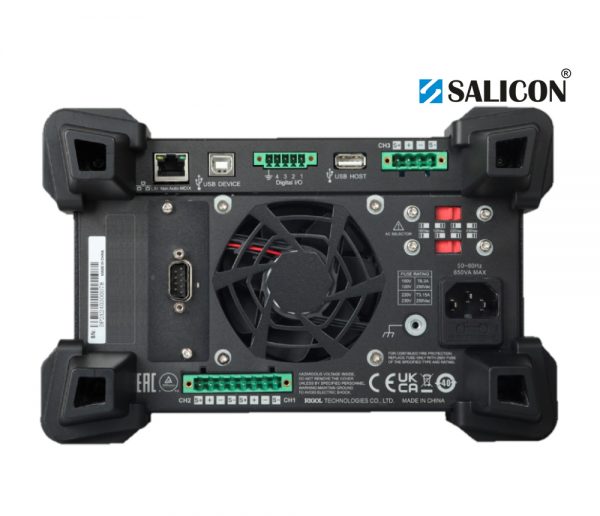

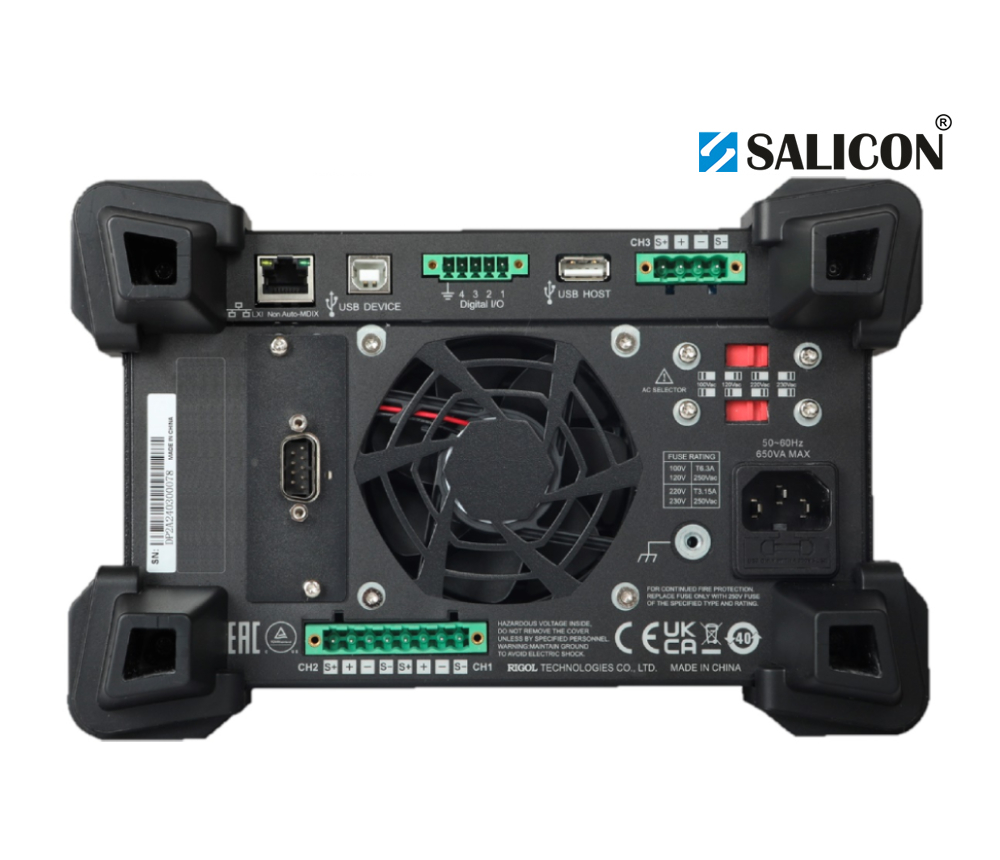

LAN, RS232 and Digital IO Ports Included
Online Monitoring & Analysis Function Included
Display 4.3″ (10.9 cm) LCD color touch screen

Downloads

Datasheet


Language: English
File Size: 10.82 MiB
Release Date: 03.08.2022

Guide


Language: English
File Size: 2.58 MiB
Release Date: 04.08.2022

Manual


Language: English
File Size: 4.26 MiB
Release Date: 04.08.2022

Language: English
File Size: 2.71 MiB
Release Date: 04.08.2022

Accessories

  • ACCESSORIES

    Rigol DP2000-GPIB

    GPIB user installable interface module for the Rigol DP2031.

    GPIB user installable interface module for the Rigol DP2031.

    ...
