Rigol DM3058 Digital Multimeter

Code: DM3058

5½ digit true RMS precision table multimeter to measure voltages, currents, resistances, capacitances, and frequencies.

Now includes NABL Calibration Certificate.

3 years warranty

₹96,854.00 ₹90,801.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

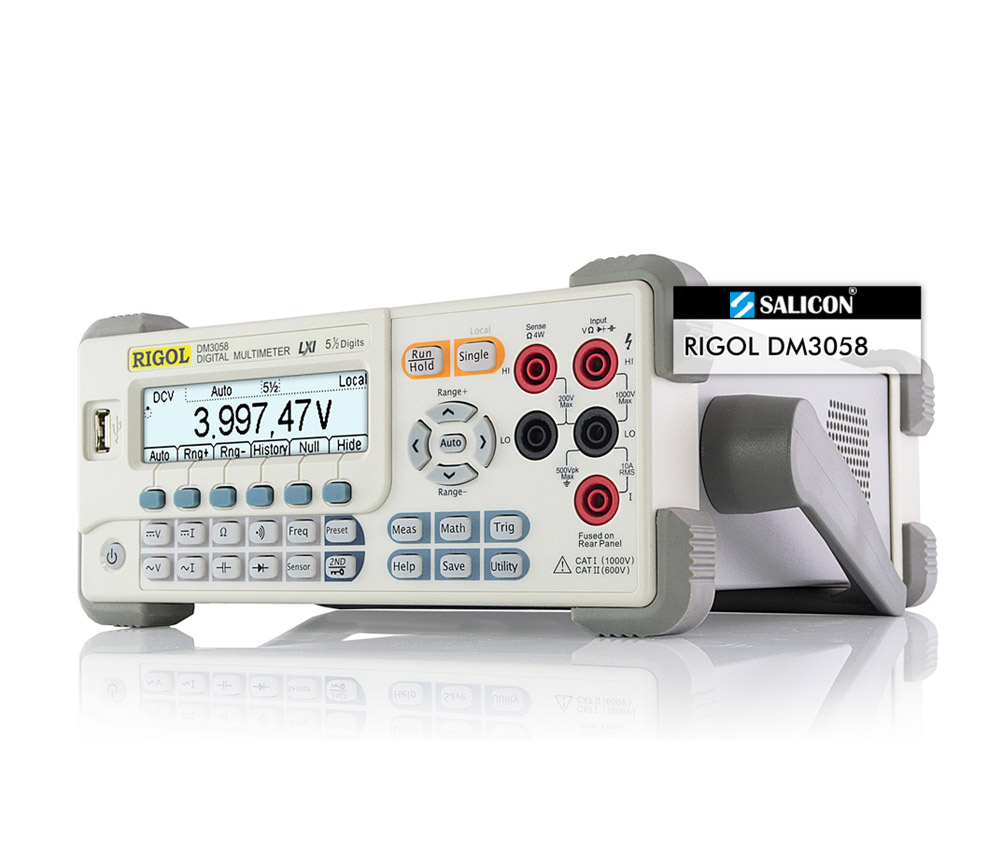

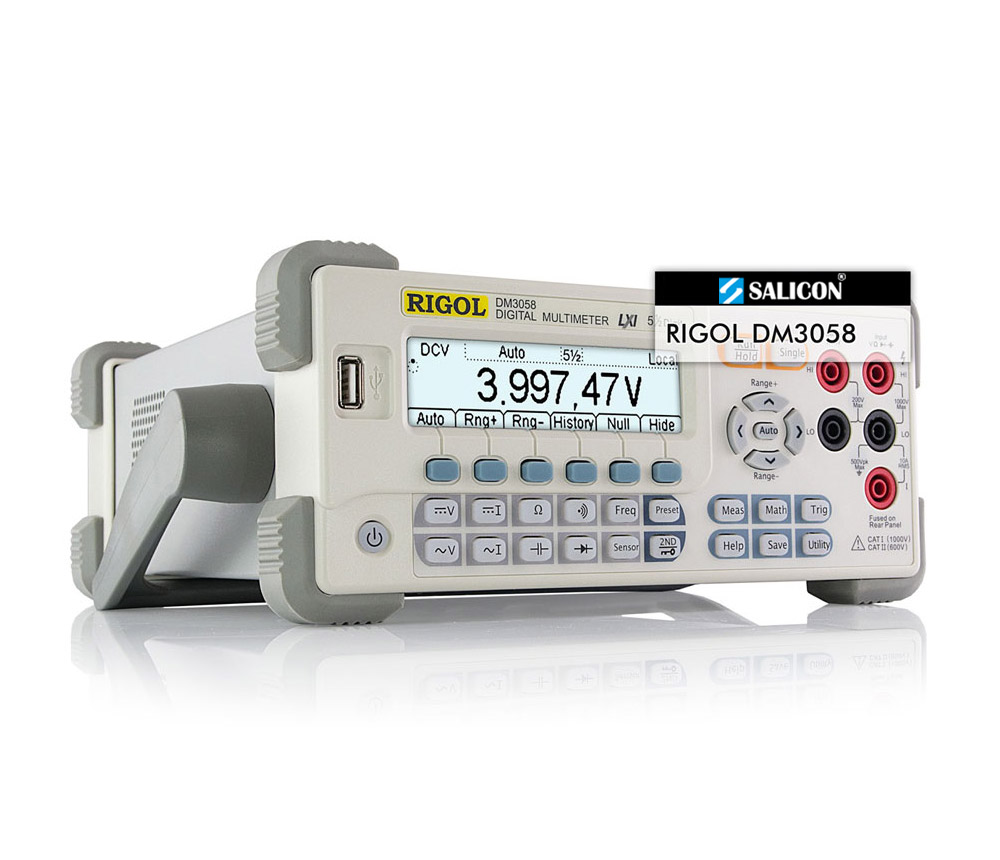

The Rigol DM3058 is a high quality digital tabletop multimeter from the DM3000 series with a sampling rate of max. 120 Sa/s.

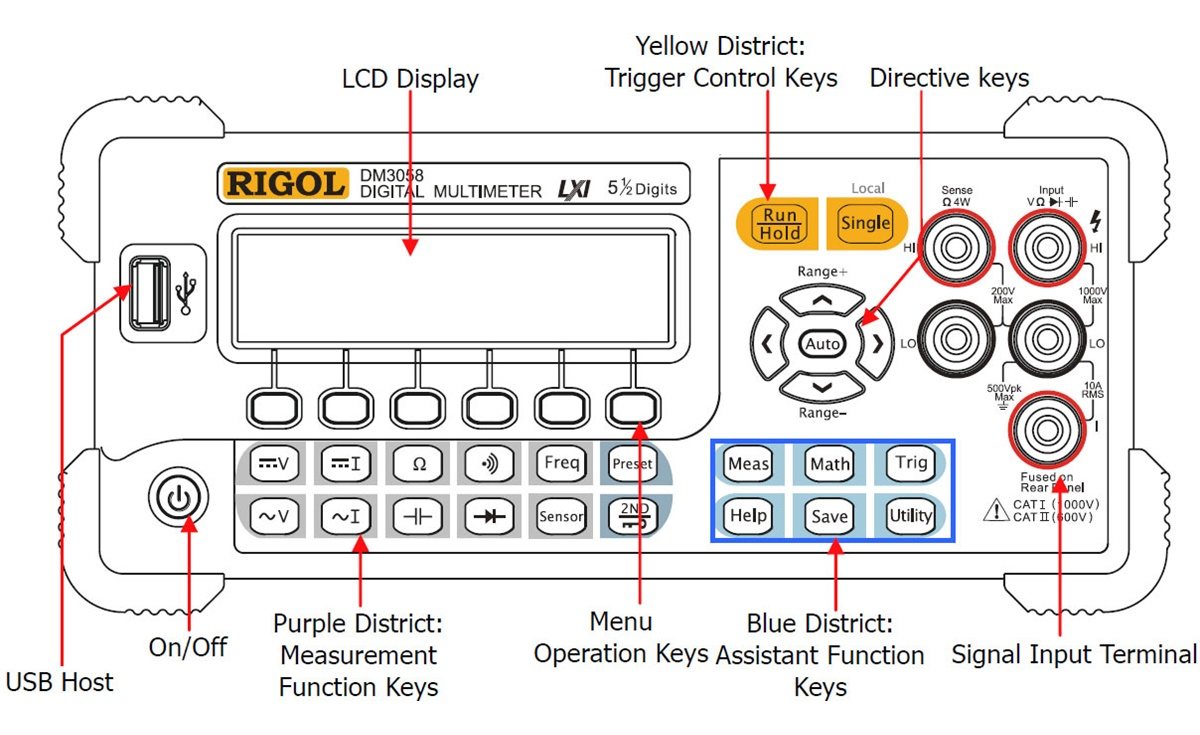

These Rigol multimeters have a very sophisticated and easy to use interface and provide plenty of functions for all measurement tasks. The use of the menu navigation is very intuitive and the devices will provide precise results in all of their many application areas. With the help of a computer, you can perform long running monitoring tasks, too.

The LC-Display with its 256×64 pixels is easy to read and provides a very good overview of all features. The display has a resolution of 5½ digits (max. count 240.000).





Model DM3058E DM3058 DM3068
max. Display 5½ Digits 5½ Digits 6½ Digits
max. Reading 240.000 240.000 2.400.000
max. Sampling Rate 120 Sa/s 120 Sa/s 10 kSa/s
Memory Depth 10 groups of 2000 readings 10 groups of 2000 readings 10 groups of 5000 readings
LAN (LXI) / GPIB Interface X standard standard

Special Features

Filesystem and USB Stick Support

With the built-in USB Host-Port you can save test readings and settings on an USB-Stick. Settings can also be saved in 10 internal storage locations.

High Resolution

This model has a maximum count of 240.000.

Online Help
Every function and every button has a short description in the built-in online help feature. Simply press and hold a button to see its description.

Sensor System

The DM3000 converts the sensors physical properties into electrical voltage, resistance, current for measurement and shows measured and corresponding values.

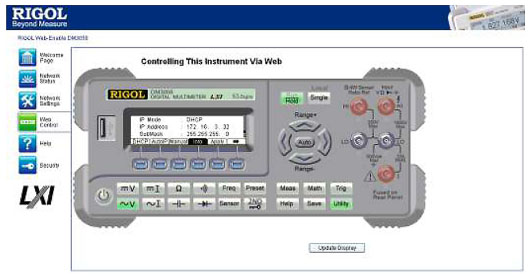

Web Interface

As the only device of this class, the Rigol DM3058 has a built- in Web iInterface, allowing to control all of its features and settings externally. A very easy configuration of the network settings (using DHCP Server or fixed IP setting) makes this device available in any network very quickly.

The Web-Interface provides an easy access to all settings and the remote control of the device. In the Web Control mode, the frontend of the device is visible in the browser. These functions can easily be accessed using the mouse and clicking on the displayed buttons.

All measurement values are shown on the virtual display.

Specifications

Measurement Range Accuracy Resolution
DC Voltage (DCV) 200.000 mV
2.00000 V
20.0000 V
200.000 V
1000.00 V		 0.015%+8 dig.
0.015%+6 dig.
0.015%+8 dig.
0.015%+6 dig.
0.015%+6 dig.		 1 µV
10 µV
100 µV
1 mV
10 mV
AC Voltage (ACV)
20 Hz – 45 Hz
45 Hz – 20 kHz
20 kHz – 50 kHz
50 kHz – 100 kHz		 200.000 mV 1.5%+200 dig.
0.2%+100 dig.
1.0%+100 dig.
3.0%+100 dig.		 1 µV
20 Hz – 45 Hz
45 Hz – 20 kHz
20 kHz – 50 kHz
50 kHz – 100 kHz		 2.00000 V 1.5%+200 dig.
0.2%+100 dig.
1.0%+100 dig.
3.0%+100 dig.		 10 µV
20 Hz – 45 Hz
45 Hz – 20 kHz
20 kHz – 50 kHz
50 kHz – 100 kHz		 20.0000 V 1.5%+200 dig.
0.2%+100 dig.
1.0%+100 dig.
3.0%+100 dig.		 100 µV
20 Hz – 45 Hz
45 Hz – 20 kHz
20 kHz – 50 kHz
50 kHz – 100 kHz		 200.000 V 1.5%+200 dig.
0.2%+100 dig.
1.0%+100 dig.
3.0%+100 dig.		 1 mV
20 Hz – 45 Hz
45 Hz – 20 kHz
20 kHz – 50 kHz
50 kHz – 100 kHz		 750.000 V 1.5%+750 dig.
0.2%+750 dig.
1.0%+750 dig.
3.0%+375 dig.		 10 mV
DC Current (DCA) 200.000 µA
2.00000 mA
20.0000 mA
200.000 mA
2.00000 A
10.0000 A		 0.055%+10dig
0.055%+10dig
0.095%+40dig
0.070%+16dig
0.170%+40dig
0.250%+10dig		 0.001 µA
0.01 µA
0.1 µA
1 µA
10 µA
100 µA
AC Current (ACA)
20 Hz – 45 Hz
45 Hz – 2 kHz
2 kHz – 10 kHz		 20.0000 mA 1.5%+200 dig.
0.5%+200 dig.
2.5%+400 dig.		 0.1 µA
20 Hz – 45 Hz
45 Hz – 2 kHz
2 kHz – 10 kHz		 200.000 mA 1.5%+200 dig.
0.3%+200 dig.
2.5%+400 dig.		 1 µA
20 Hz – 45 Hz
45 Hz – 2 kHz
2 kHz – 10 kHz		 2.00000 A 1.5%+400 dig.
0.5%+400 dig.
2.5%+400 dig.		 10 µA
20 Hz – 45 Hz
45 Hz – 2 kHz
2 kHz – 5 kHz		 10.0000 A 1.5%+150 dig.
0.5%+150 dig.
2.5%+200 dig.		 100 µA
Resistance 200.000 Ω
2.00000 kΩ
20.0000 kΩ
200.000 kΩ
2.00000 MΩ
100.000 MΩ		 0.030%+10 dig.
0.020%+6 dig.
0.020%+6 dig
0.020%+6 dig.
0.040%+8 dig.
0.250%+3 dig.		 0.001 Ω
0.01 Ω
0.1 Ω
1 Ω
10 Ω
1 kΩ
Capacitance 2.000 nF
20.00 nF
200.0 nF
2.000 µF
200.0 µF
10000 µF		 3.0%+20 dig
1.0%+10 dig.
1.0%+10 dig.
1.0%+10 dig.
1.0%+10 dig.
2.0%+5 dig.		 1 pF
10 pF
100 pF
1 nF
100 nF
1 µF
Frequencies 20 Hz – 2 kHz
2 kHz – 20 kHz
20 kHz – 200 kHz
200 kHz – 1 MHz		 0.01%
0.01%
0.01%
0.01%		 0.001 Hz
Function Rigol DM3058 Digital Multimeter
Auto Range
Manual Range
True RMS (TRMS)
Diode test √
Transistor test
Continuity test  (fast reaction time with 123 Sa/s)
Battery test
Low battery indication n/a (mains connection only)
Relatively measuring
Data hold
Auto power-off
Overload protection
Shockproof Protection
Backlight
Max. Reading 240.000 (5½ digits)
LCD 90 mm × 25 mm (256x64Pixel)
Sampling rate up to 120 reading/sec.
Memory Depth 10 groups of 2000 readings

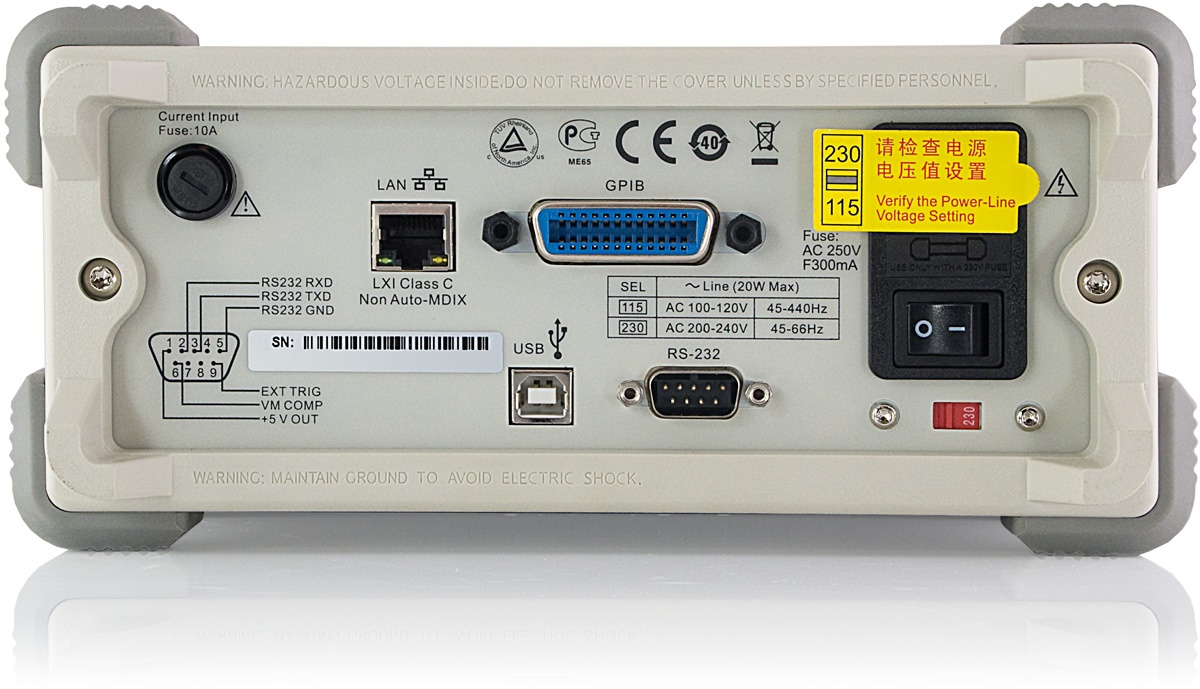

Connections RS-232, USB Device, USB Host, Ext.Trig.,
VM Comp., 10/100MBit LAN, GPIB
Details Rigol DM3058 Digital Multimeter
Power supply 230 V / 50 Hz / 110 V / 60 Hz mains connection
Safety standard CAT II/600 V
Dimensions 290.5 mm × 231.6 mm × 107.0 mm
(11.44″ × 9.12″ × 4.21″)
Weight without accessories / packaging 2500 g
(5.512 lbs)
Weight with accessories / packaging 4465 g
(9.844 lbs)
Warranty 3 Years

Accessories

  • ACCESSORIES

    Multimeter leads

    Red and black lead, 90 cm (35″), max. 1500 V

    Red and black lead, 90 cm (35″), max. 1500 V

    ...
    (0 reviews)
    ₹610.00 ₹520.00 Add to cart

Downloads

Datasheet

Rigol DM3058(E) Datasheet

Language: English
File Size: 251.94 KiB
Release Date: 05.11.2015

Manual

Rigol DM3058(E) Manual

Language: English
Version: UGC03121-1110
File Size: 5.23 MiB
Release Date: 01.11.2015

Rigol DM3058(E) Quick Guide

Language: English
Version: QGA03109-1110
File Size: 4.35 MiB
Release Date: 01.02.2014

Rigol DM3058(E) SCPI Programming Guide

Language: English
File Size: 1.29 MiB
Release Date: 01.01.2015

Rigol How To: Instrument Communication VISA / USB

Language: English
File Size: 435.80 KiB
Release Date: 04.08.2010

Rigol Software Installation and Use

Language: English
File Size: 551.36 KiB
Release Date: 10.04.2014

Software

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit),
8 (64/32 Bit), 7 (64/32 Bit)

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit),
8 (64/32 Bit), 7 (64/32 Bit)

Rigol Ultra Sigma Software Download

Language: English
Version: 00.01.06.01
File Size: 521.91 MiB
Release Date: 30.10.2015
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit),
7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

UltraLogger Download

File Size: 9.96 MiB
Release Date: 12.06.2010

UltraSensor Download

Version: 00.04.00.00
File Size: 17.71 MiB
Release Date: 01.11.2010
