Rigol DG822

Code: DG822

High quality two channel function / arbitrary waveform generator with 25 MHz bandwidth, 125 MSa/s and 2 Mpts memory (up to 8Mpts as option).

3 years warranty

35,990.00 30,390.00

3 in stock (can be backordered)

3 in stock (can be backordered)

Description

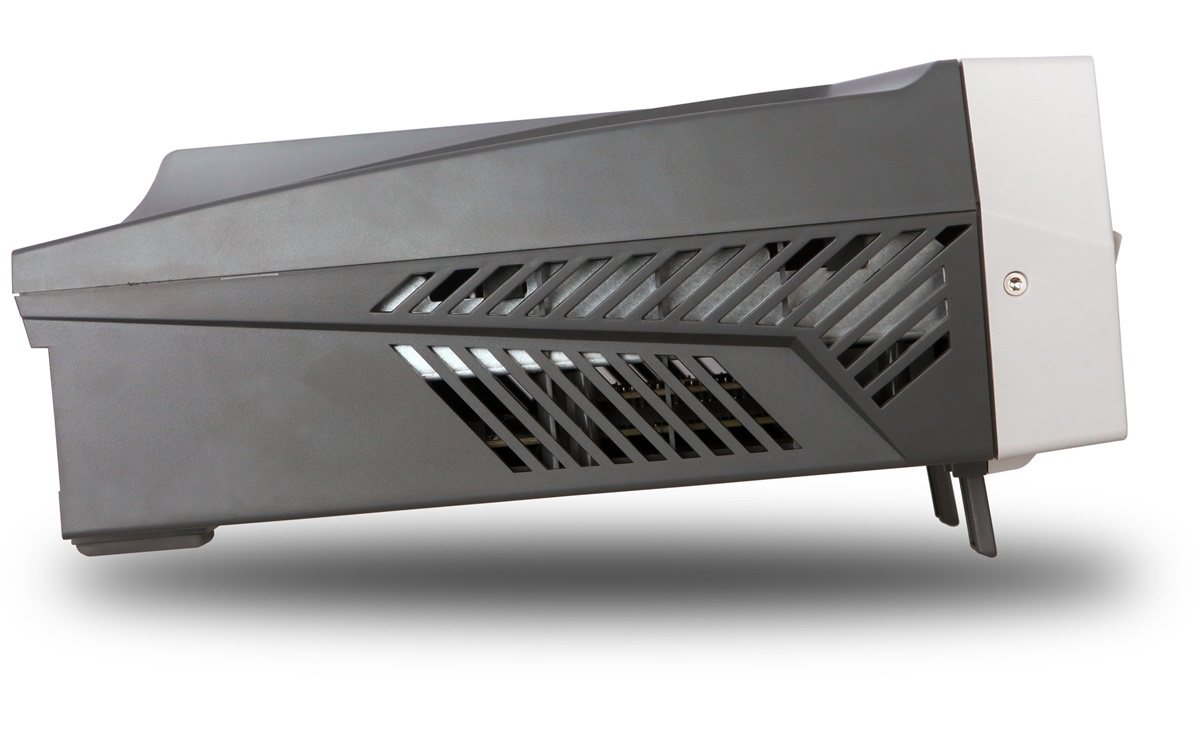

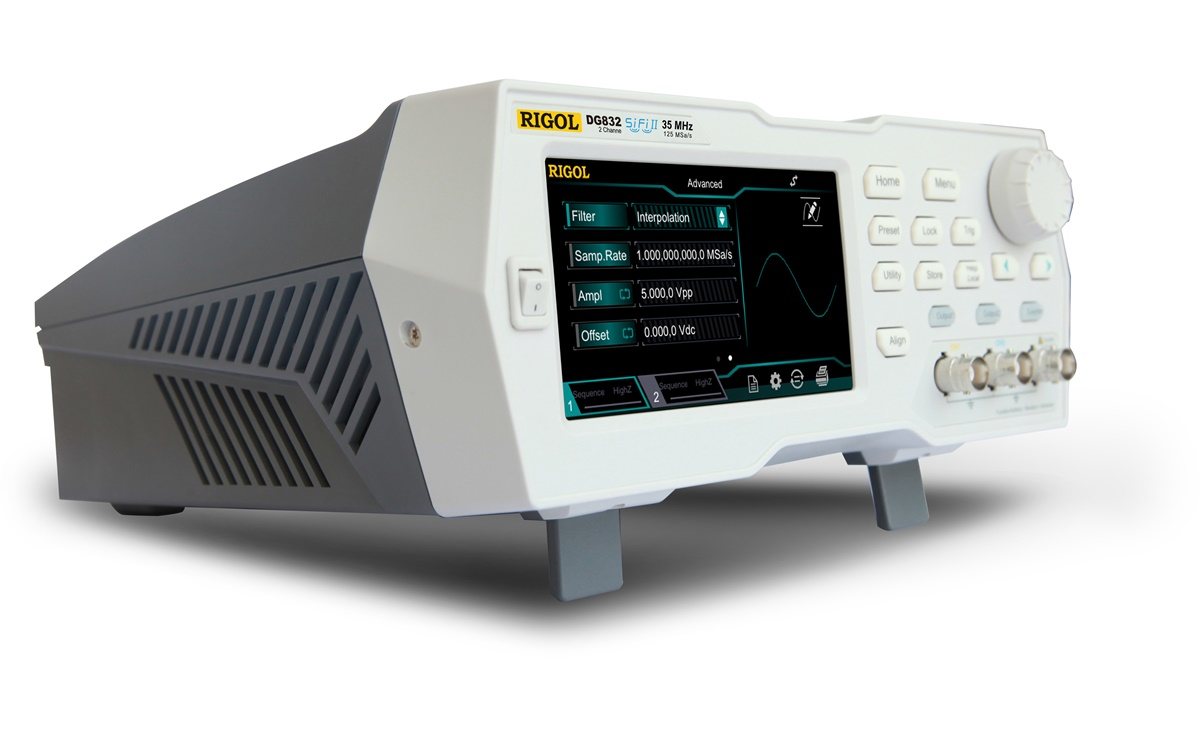

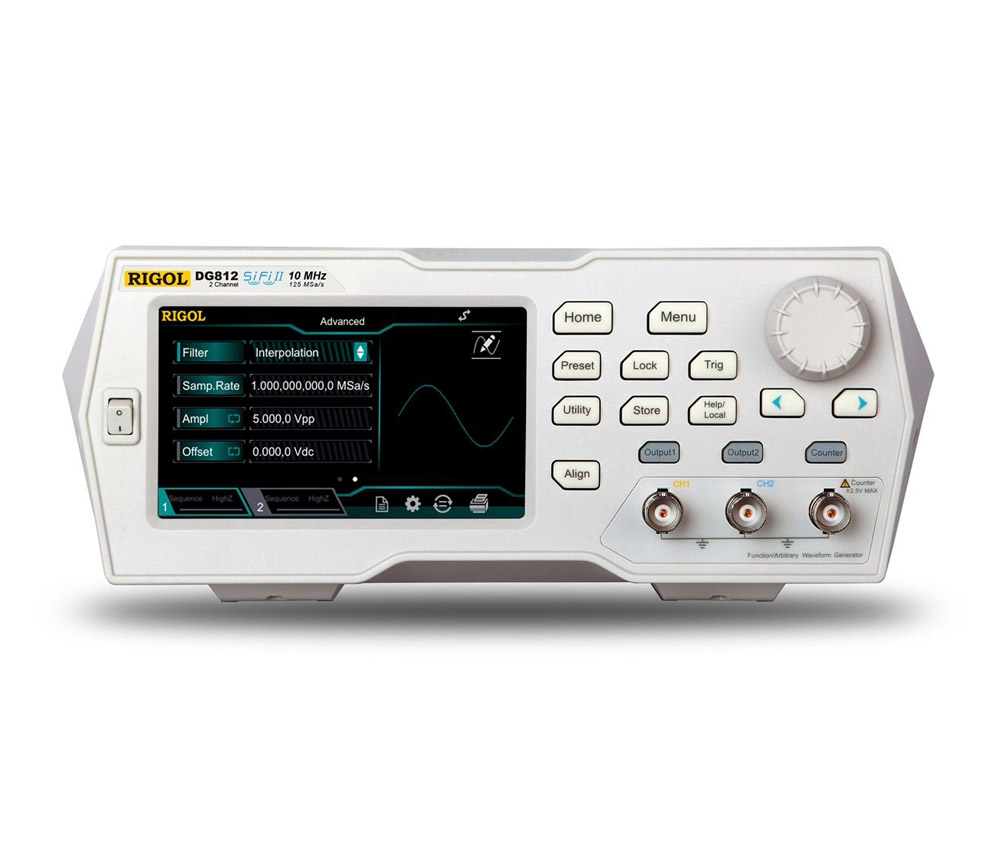

The DG800 redefines the entry level waveform generator by bringing advanced capabilities like 16 bit high resolution, intuitive touch screen control, and a quiet fanless design to our most affordable line of generators. Add SiFi II point-to-point sampling technology and 2 MPts of standard arb memory and the DG800 Series delivers a powerful low cost generator for students and engineers alike.

Model DG811 DG812 DG821 DG822 DG831 DG832
Max. Frequency 10 MHz 10 MHz 25 MHz 25 MHz 35 MHz 35 MHz
Resolution 1 µHz 1 µHz 1 µHz 1 µHz 1 µHz 1 µHz
Sample rate 125 MSa/s 125 MSa/s 125 MSa/s 125 MSa/s 125 MSa/s 125 MSa/s
vertical resolution 16 bits 16 bits 16 bits 16 bits 16 bits 16 bits
Max Amplitude 10 Vpp < 10 MHz 10 Vpp < 10 MHz 10 Vpp < 10 MHz 10 Vpp < 10 MHz 10 Vpp < 10 MHz 10 Vpp < 10 MHz
Frequency Counter up to 240 MHz up to 240 MHz up to 240 MHz up to 240 MHz up to 240 MHz up to 240 MHz
Channels 1 2 1 2 1 2

Accessories

  • ACCESSORIES

    Rigol DG800-ARB8M Memory Option

    Optional 8 Mpts memory option for the DG800 series devices. Simple activation via software code (memory is already build-in).

    Optional 8 Mpts memory option for the DG800 series devices. Simple activation via software code (mem

    ...
    (0 reviews)
    7,390.00 6,190.00 Add to cart

Downloads

Datasheet


DG800 Data sheet

Language: English
File Size: 3.53 MiB
Release Date: 27.12.2018

Manual


DG800 Manual

Language: English
File Size: 1.67 MiB
Release Date: 27.12.2018

DG800 Quick Guide

Language: English
File Size: 2.23 MiB
Release Date: 27.12.2018
