Rigol DG4102

Code: DG4102

High quality two channel function / arbitrary waveform generator with 100 MHz bandwidth, 500 MSa/s and 16 kpts memory.

3 years warranty

123,664.00 115,935.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

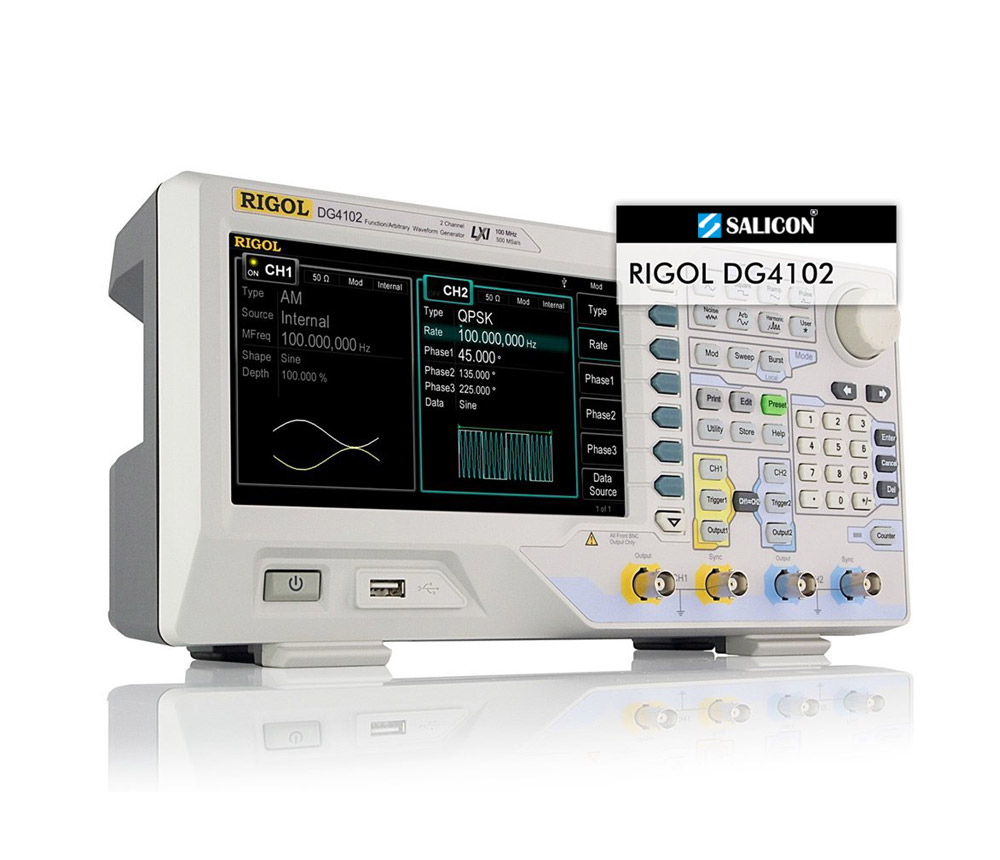

The Rigol DG4102 is two channel function / arbitary waveform generator to create high quality signals up to 100 MHz (Sine). Beside the analog output, the device includes an USB-Host- and an USB-device and a LAN interface.

The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model DG4062 DG4102 DG4162 DG4202
Max. Frequency 60 MHz 100 MHz 160 MHz 200 MHz
Max. Sample rate 500 MSa/s 500 MSa/s 500 MSa/s 500 MSa/s
Resolution 1 µHz 1 µHz 1 µHz 1 µHz
Channels 2 2 2 2

Special Features

2 Channels

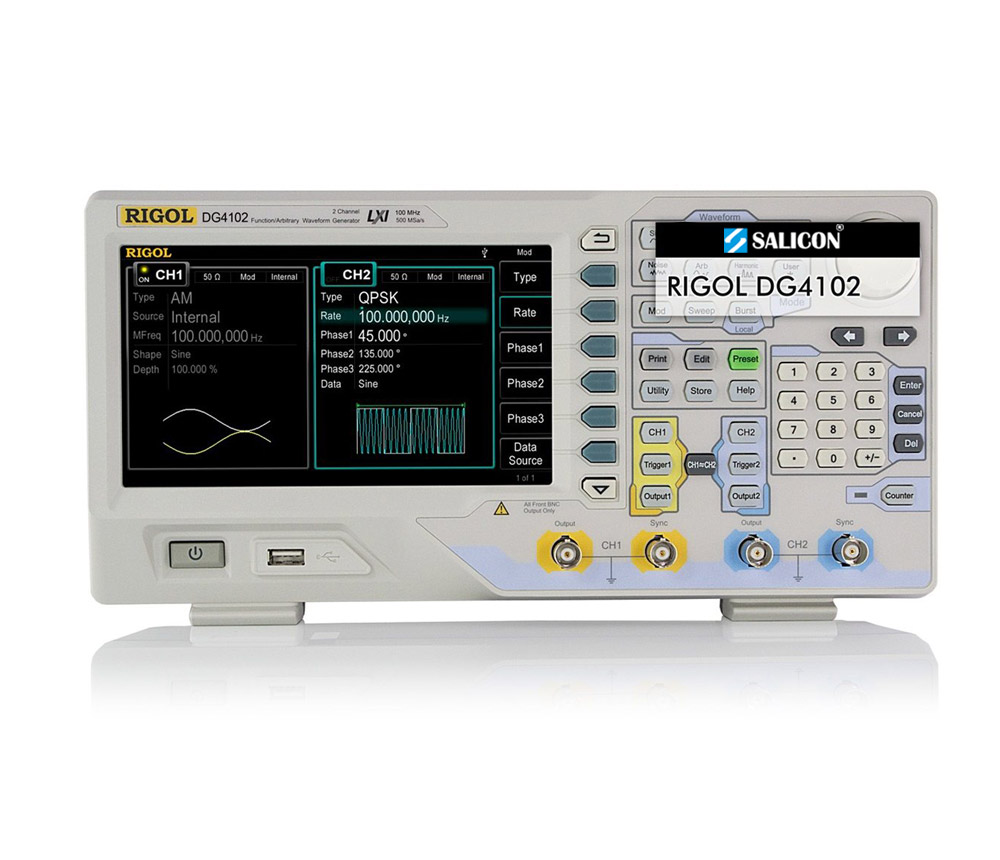

The extra large display with a diagonal size of 17.18 cm (7″) and a resolution of 800 x 480 pixels can easily display the details from both channels of the device. Both channels feature the full range of functions and can be synchronized phase-dependently. This function turns the device into a true dual-channel generator.

Arbitrary signal generation

Almost any waveform can be reproduced by using the arbitrary signal generator. Operation of the device is simplified enormously by the 150 pre-defined waveforms.

Independent analogue and digital modulation

Since the DG4000 series function generators feature two independent channels which can be synchronized, it is also possible to output analogue and digital waveforms simultaneously.

Various sweep functions

The DG4000 signal generators can cycle through defined frequency ranges at a constant amplitude and output various basic waveforms at the same time, such as sine, square, ramp, and arbitrary signals.

Harmonic signalsThe function generators are able to generate harmonic overtone signals up to the 16th order, with adjustable parameters such as frequency, amplitude, and phase for all frequencies. Even, odd, all, or user-defined harmonics can be generated.

High resolution frequency counter

These devices feature a standard high resolution frequency counter. It is able to measure the frequency, period, positive and negative pulse length, and the duty cycle, all at frequencies ranging from 1 µHz to 200 MHz.

Frequency counter with Statistics

The frequency counter features a history and statistics function with which signal changes over time can be detected and visualized.

Accessories

Downloads

Datasheet


Rigol DG4000 Datasheet

File Size: 2.46 MiB

Rigol DG4000 Manual

Language: English
Version: UGB04112-1110
File Size: 3.08 MiB

Rigol DG4000 Programming Guide

Language: English
File Size: 881.41 KiB

Rigol DG4000 Quick Guide

Language: English
Version: QGB04106-1110
File Size: 2.31 MiB

Rigol How To: Instrument Communication VISA / USB

Language: English
File Size: 435.80 KiB

Rigol Software Installation and Use

Language: English
File Size: 551.36 KiB

Software


NI-VISA Runtime Engine 15.0

Version: 15.0
File Size: 83.96 MiB
O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)

Rigol Ultra Sigma Software Download

Language: English
Version: 00.01.06.01
File Size: 521.91 MiB
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit),
7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Ultrastation Download

Version: 00.01.03.01
File Size: 12.82 MiB
O/S: Windows 10 (64 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Specifications

Generator Function / Waveform Generator Rigol DG4102
Display 17,78 cm (7″) TFT with 16M colors
Resolution 800 × 480 Pixel

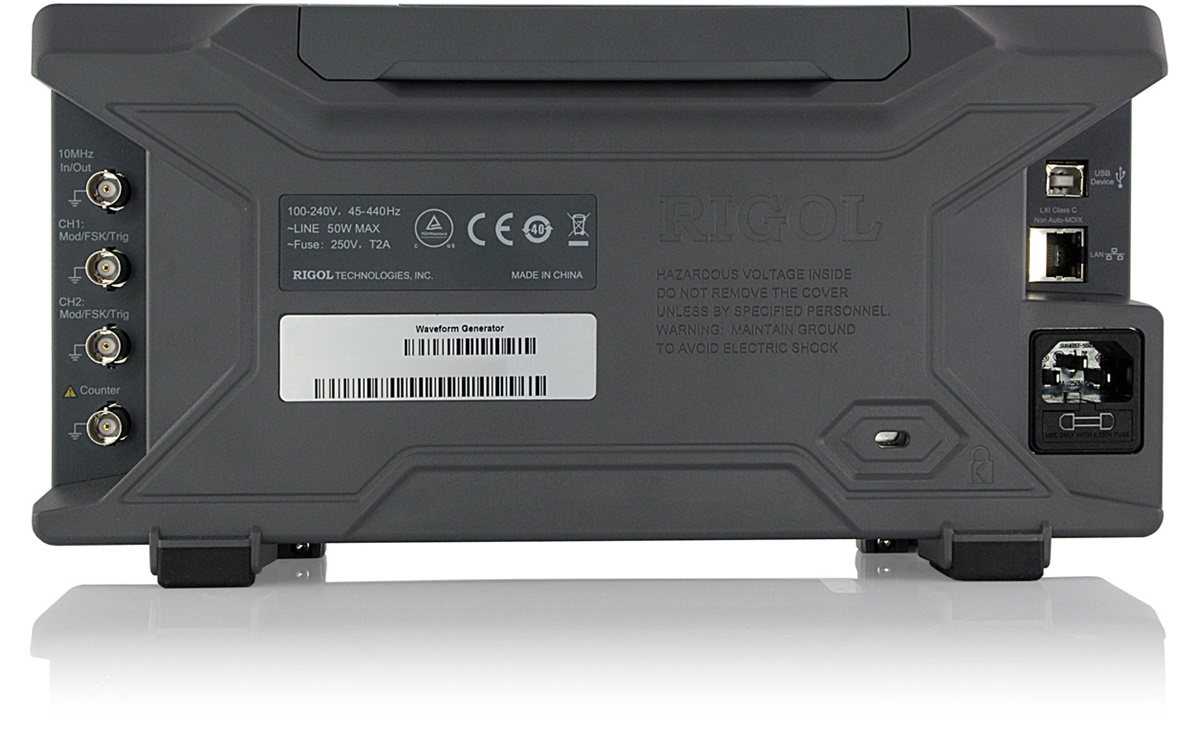

Interfaces
  • USB-Host (for USB stick i.e. to save/load waveforms)
  • USB-Device for a PC connection
  • LAN
Dimensions 313 mm × 160,7 mm × 116,7 mm

(12.32″ × 6.33″ × 4.59″)

Weight 3.2 kg (7.055 lbs)
Supported operation systems Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)

The complete list of technical specifications can be found in the chapter “Specifications” of the Datasheet.

Function Function / Waveform Generator Rigol DG4102
Channels
2
Signal Output Sine, Rectangle, Pulse, Ramp, Noise, Harmonics, 150 predefined arbitrary Waveforms, free definineable arbitrary Waveforms
Vertical Resolution 14 bit
Amplitudes 1 mVpp ~ 10 Vpp (50 Ω)
DC Offset ±5 V (50 Ω)
Sample Rate 500 MSa/s
Frequency Range Sine 1 µHz – 100 MHz
Frequency Range Rectangle 1 µHz – 40 MHz
Frequency Range Pulse 1 µHz – 25 MHz
Frequency Range Ramp 1 µHz – 3 MHz
Frequency Range Harmonics 1 µHz – 50 MHz
Frequency Range Arbitrary 1 µHz – 25 MHz
Frequency Range Noise 80 MHz (-3db)
Resolution 1 µHz
