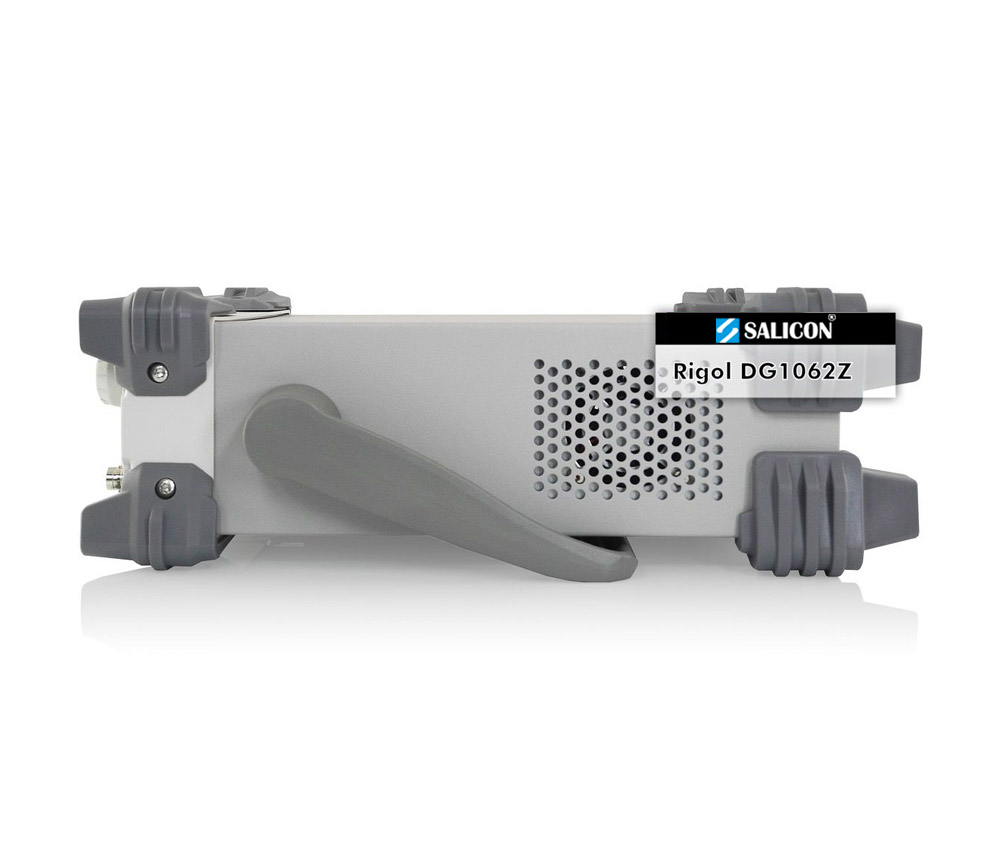

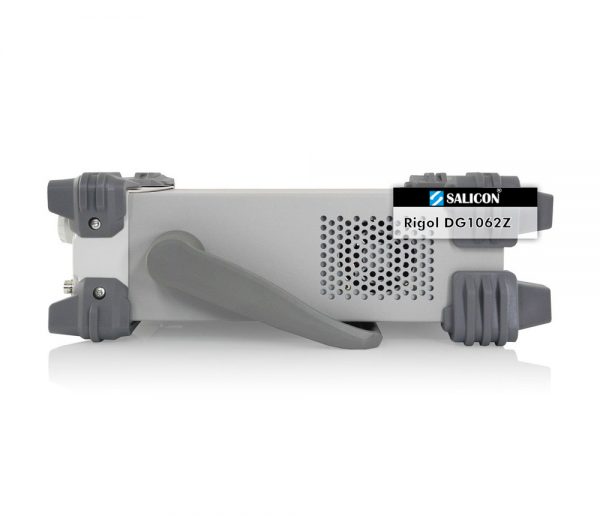

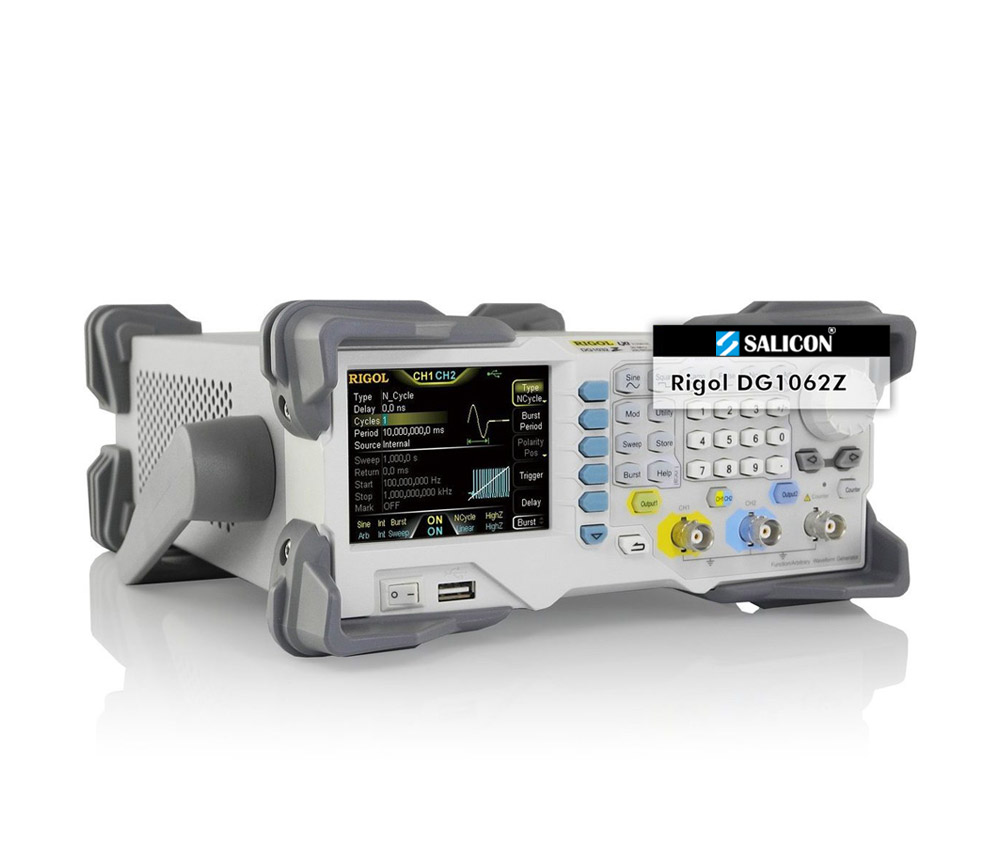

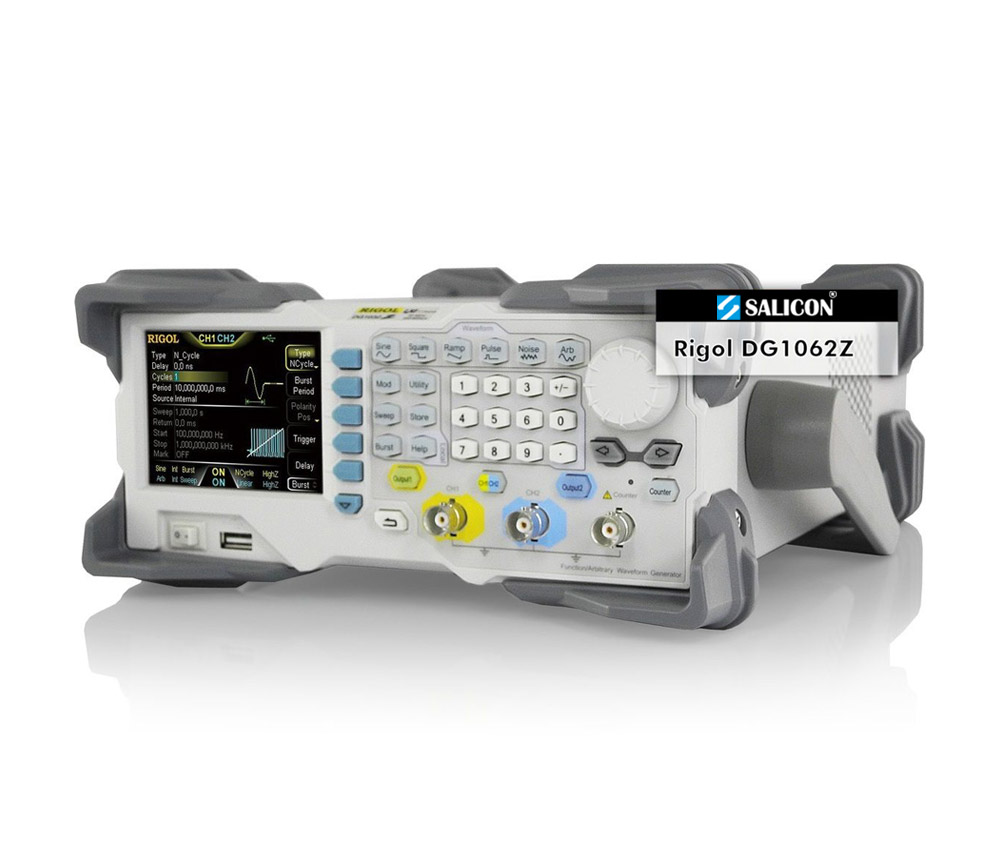

Rigol DG1062Z

Code: DG1062Z

High quality two channel function / arbitrary waveform generator with 60 MHz bandwidth, 200 MSa/s and 8 Mpts memory (up to 16Mpts as option).

Now includes NABL Calibration Certificate.

3 years warranty

176,150.00 165,141.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

The Rigol DG1062Z is a two channel Function / Arbitrary Waveform Generator to create high quality signals up to 60 MHz (Sine) with very low jitter (200 ps) and the new SiFi (SIgnal FIdelity) technology. Beside the two analog outputs, the device includes an USB-Host- and an USB-device interface.

The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model DG1022Z DG1032Z DG1062Z
Max. Frequency 25 MHz 30 MHz 60 MHz
Memory 2 MPts (16 MPts optional) 8 MPts (16 MPts optional) 8 MPts (16 MPts optional)
Max. Sample rate 200 MSa/s 200 MSa/s 200 MSa/s
Resolution 1 µHz 1 µHz 1 µHz
Channels 2 2 2

Special Features

2 Channels

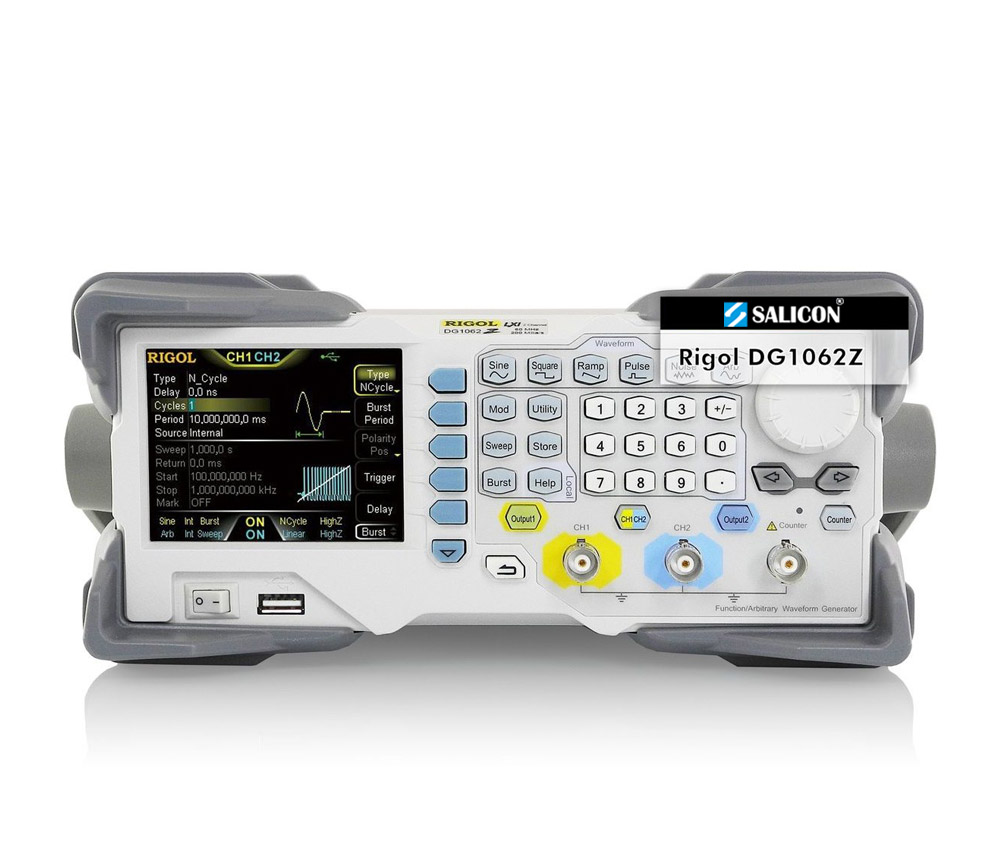

The display with a diagonal size of 8.9 cm (3.5″) and a resolution of 320 x 240 pixels can easily display the details from both channels of the device. Both channels feature the full range of functions and can be synchronized phase-dependently. This function turns the device into a true dual-channel generator.

Arbitrary signal generation

Almost any waveform can be reproduced by using the arbitrary signal generator. Operation of the device is simplified enormously by the 160 pre-defined waveforms.

Independent analogue and digital modulation

Since the DG1000Z series function generators feature two independent channels which can be synchronized, it is also possible to output analogue and digital waveforms simultaneously.

Various sweep functions

The DG1000Z signal generators can cycle through defined frequency ranges at a constant amplitude and output various basic waveforms at the same time, such as sine, square, ramp, and arbitrary signals.

Harmonic signalsThe function generators are able to generate harmonic overtone signals up to the 8th order, with adjustable parameters such as frequency, amplitude, and phase for all frequencies. Even, odd, all, or user-defined harmonics can be generated.

High resolution frequency counter

These devices feature a standard high resolution frequency counter. It is able to measure the frequency, period, positive and negative pulse length, and the duty cycle, all at frequencies ranging from 1 µHz to 200 MHz.

Waveform Summing

To generate a wide spectrum of waveforms the DG1000Z devices are capable of summing basic waveforms with different signal forms, amplitude ratios and frequencies.

Accessories

Downloads

Datasheet


Rigol DG1000Z Datasheet

Language: English
File Size: 3.02 MiB
Release Date: 27.12.2018

Manual


Rigol DG1000Z Manual

Language: English
Version: UGB09109-1110
File Size: 2.09 MiB
Release Date: 01.10.2016

Rigol DG1000Z Manual

Language: German
Version: UGB09105-1112
File Size: 2.67 MiB
Release Date: 01.10.2014

Rigol DG1000Z Quickguide

Language: English
Version: QGB09104-1110
File Size: 1.07 MiB
Release Date: 01.08.2016

Rigol DG1000Z SCPI Programming Guide

Language: English
Version: PGB09106-1110
File Size: 2.50 MiB
Release Date: 01.10.2016

Rigol How To: Instrument Communication VISA / USB

Language: English
File Size: 435.80 KiB
Release Date: 04.08.2010

Rigol Software Installation and Use

Language: English
File Size: 551.36 KiB
Release Date: 10.04.2014

Software


NI-VISA Runtime Engine 15.0

Version: 15.0
File Size: 83.96 MiB
Release Date: 08.03.2015
O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)

Rigol DG1022Z Software

Release Date: 27.12.2018

Rigol DG1032Z Software

Release Date: 27.12.2018

Rigol Ultra Sigma Software Download

Language: English
Version: 00.01.06.01
File Size: 521.91 MiB
Release Date: 30.10.2015
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit),
7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Ultrastation Download

Version: 00.01.03.01
File Size: 12.82 MiB
Release Date: 29.11.2013
O/S: Windows 10 (64 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Specifications

Generator Function / Waveform Generator Rigol DG1062Z
Display 8,9 cm (3.5″) TFT with 16M colors
Resolution 320 × 240 Pixel

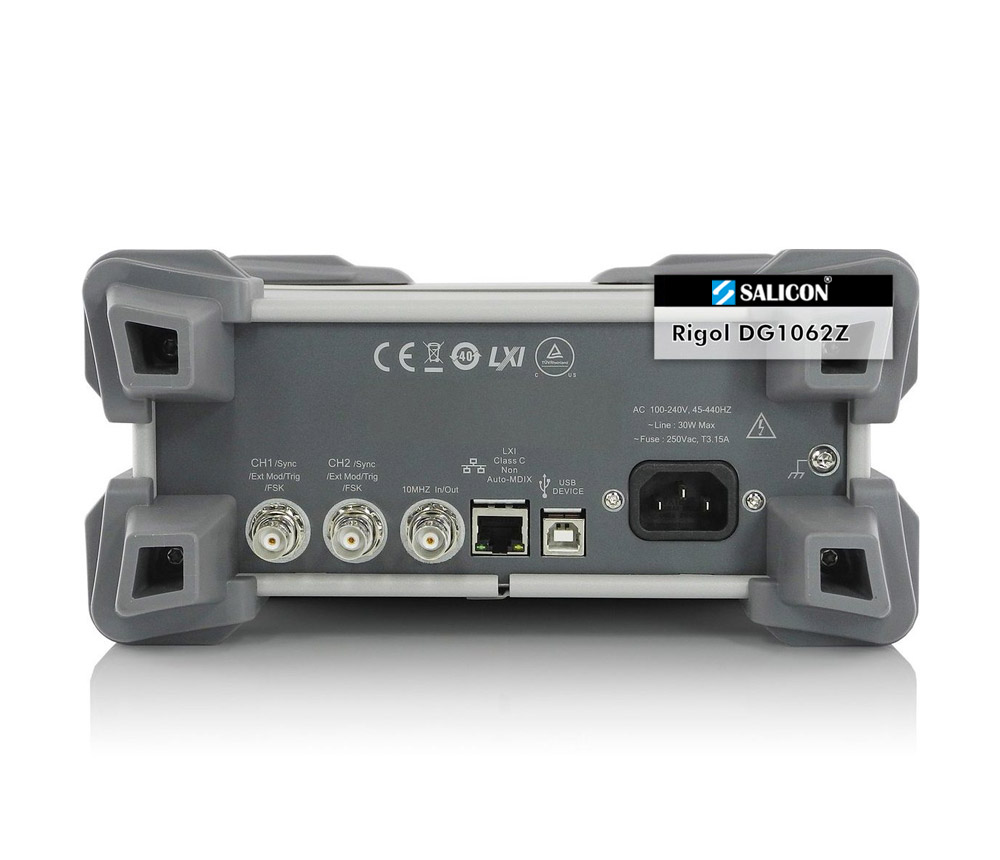

Interfaces
  • USB-Host (for USB stick i.e. to save/load waveforms)
  • USB-Device for a PC connection
  • LAN für die Verwendung im Netzwerk
Dimensions 318,4 mm × 261,5 mm × 112 mm

(12.54″ × 10.3″ × 4.41″)

Weight 3.2 kg (7.055 lbs)
Supported operation systems Windows XP, Vista (32/64Bit), Windows 7 (32/64Bit), Windows 8 (32/64Bit)

The complete list of technical specifications can be found in the chapter “Specifications” of the Datasheet.

Function Function / Waveform Generator Rigol DG1062Z
Channels
2
Signal Output Sine, Rectangle, Pulse, Ramp, Noise, Harmonics, 160 predefined arbitrary Waveforms, free definineable arbitrary Waveforms
Vertical Resolution 14 bit
Amplitudes ≤10 MHz: 2,5 mVpp to 10 Vpp

≤30 MHz: 2,5 mVpp to 5.0 Vpp

≤60 MHz: 2,5 mVpp to 2.5 Vpp

DC Offset ±5 V (50 Ω)
Sample Rate 200 MSa/s
Frequency Range Sine 1 µHz – 60 MHz
Frequency Range Rectangle 1 µHz – 25 MHz
Frequency Range Pulse 1 µHz – 25 MHz
Frequency Range Ramp 1 µHz – 1 MHz
Frequency Range Harmonics 1 µHz – 20 MHz
Frequency Range Arbitrary 1 µHz – 20 MHz
Frequency Range Noise 60 MHz (-3db)
Resolution 1 µHz
