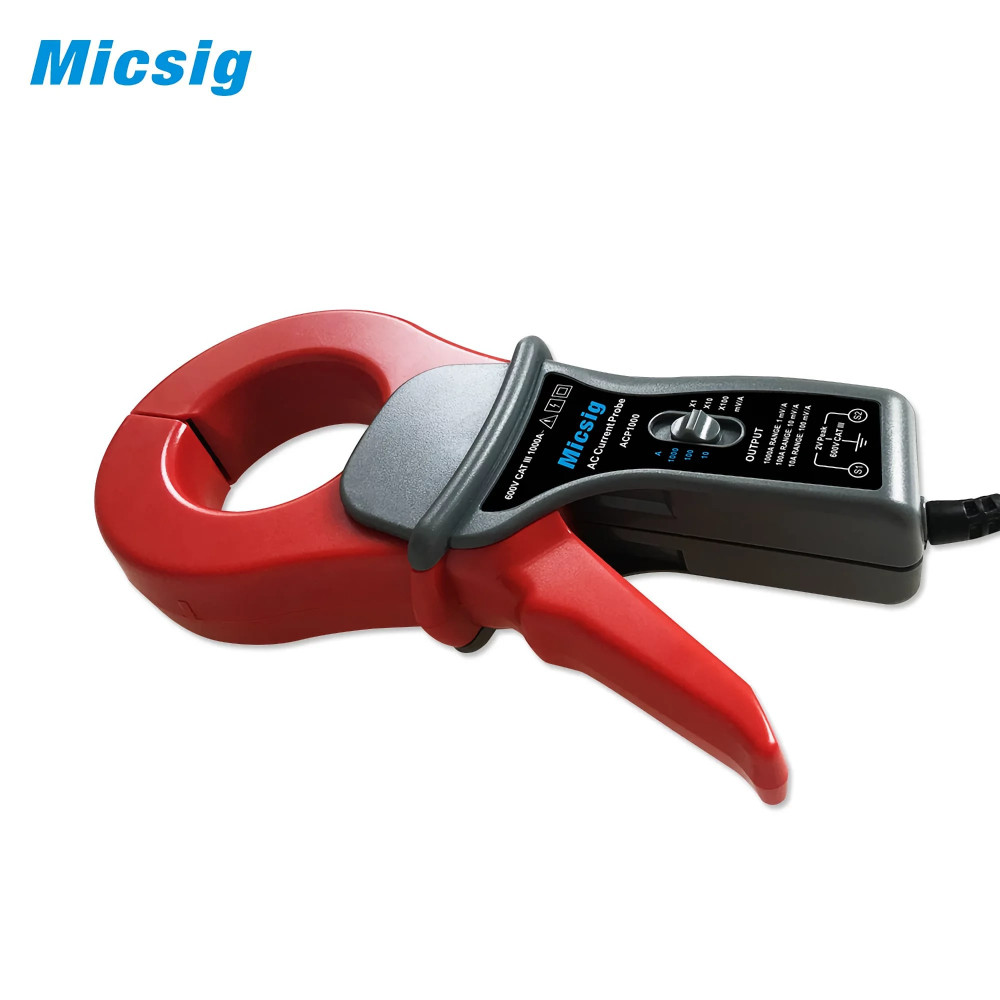

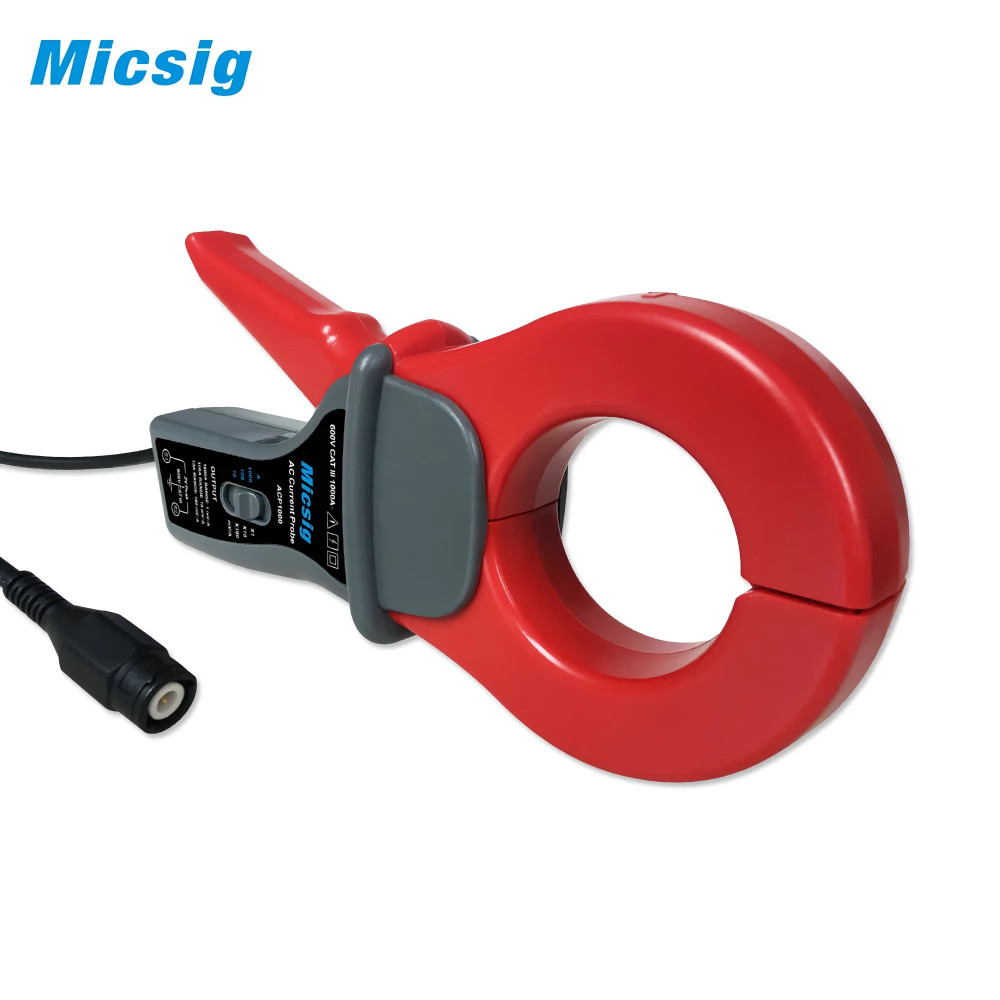

Description
Features:
– Test Current Range: 0.1A-1000A
– Operating Frequency: 10Hz – 100kHz
– Maximum Primary Current: 2000A (2s)
– Output Signal: mV/A
– Highest Precision: 1%
– Operating Temperature: -15°℃ to 75°C
– Safety Class: CAT III 600V
– Maximum conductor size: 52 mm (2.05 inches)
– Wire Length: 1550mm
– Dimensions: 111mm x 216mm x 45mm (37in x 8.50in x 1.77in)

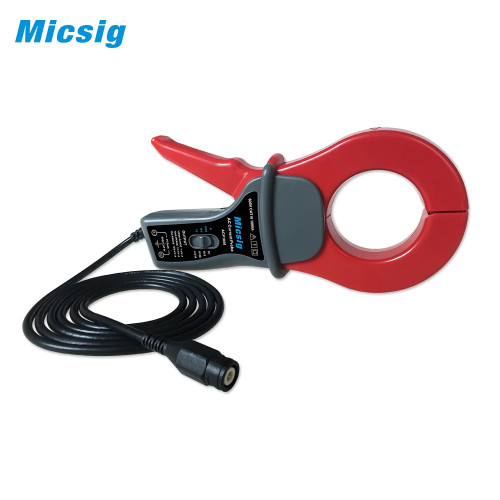

– Output Cable: 1.5m BNC insulated coaxial output cable can connect directly to an oscilloscope, and can be used with Multimeters with optional BNC/Banana adapter
| Model | Input | Rated Output | Frequency (Hz) | Rated Burden | Accuracy Grade |
| ACP1000 | 0.1 – 10A | 100 mV/A | 10 – 100k | ≥100KOhms | 3% ± 10mV |
| 0.1 – 100A | 10 mV/A | 2% ± 5mV | |||
| 1 – 1000A | 1 mV/A | 1% ± 1mV |
