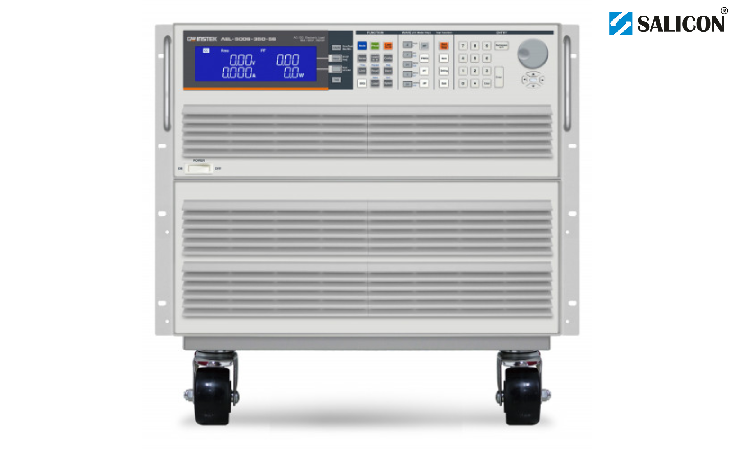

GW Instek AEL-5006-350-56 AC/DC Load 5600W, 350V, 56A

Description

GW Instek AEL-5006-350-56 AC/DC Load 5600W, 350V, 56A.

GW Instek launches 20 models of the AEL-5000 series AC/DC electronic loads depending on the power range. The power range of a single unit is from 1875W to 22500W, and up to 8 units can be connected in parallel. The maximum power of single-phase parallel connection can reach 180kW, and the total power of 3-phase can reach 540kW, which are suitable for UPS, Inverter/Breaker, AC Power Source, Battery, Fuse/Breaker, DC Power Source and other applications.

Features:

• CC, Linear CC, CR, CV, CP and AC Rectifier Load Mode
• Frequency Range: DC, 40~440Hz
• Turbo Mode for 2 Times the Current and Power of Electronic Load within 1 Second
• Three Units Parallel up to 90kW and Three-phase △ or Y Load Connection Can be Synchronized Control by One Master Unit
• Loading and Unloading Angle Control; 0~359 Degree is Settable
• Positive Half-cycle or Negative Half-cycle Loading
• Supports SCR/TRIAC Current Phase Modulation Waveforms,90 Degree Trailing Edge and Leading Edge
• Optional Interface: GPIB, RS232, USB, LAN

Standard Accessories

• HD-DSUB 15PIN Parallel wire

Optional Accessories

• PEL-022 GPIB Card
• PEL-023 RS-232 Card
• PEL-024 LAN Card
• PEL-025 USB Card
• PEL-028 U-Shaped handle (fixed to the bracket) (for AEL-5006/5008/5012/5015)
• PEL-029 Handles Rack accessories (for AEL-5002/5003/5004)
• PEL-030 GPIB + RS-232 Card
• GTL-248 GPIB Cable, 2m
• GTL-250 GPIB Cable, 0.6m
• GTL-246 USB Cable, 1.2m
