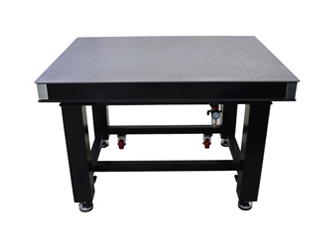

| Table Top Compact Vibration Isolation Table | |
|---|---|
| Size | 24in × 24in (W × D) |

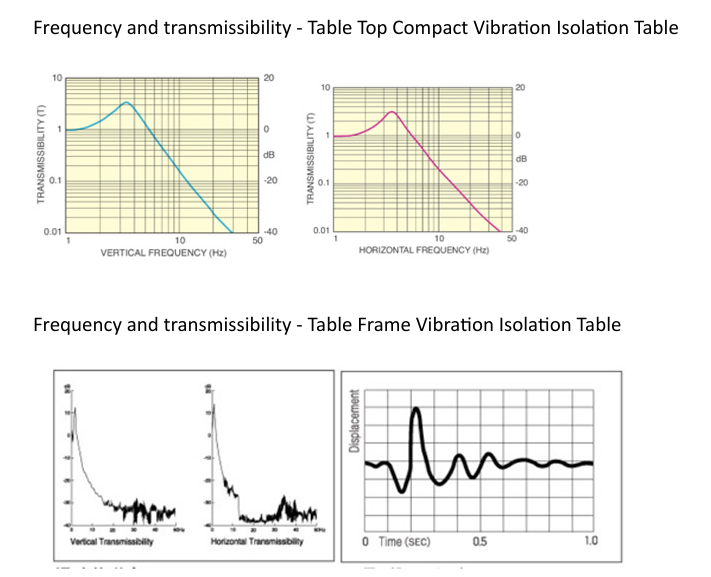

| Natural Frequency | Horizontal 3.6Hz, Vertical 3.2Hz |
| Damping | Pneumatic |
| Maximum Load | 80kg |
| Compressed Air | Yes |
| Auto Leveling | Yes |
| Height | 2in |
| Weight | 20kg |

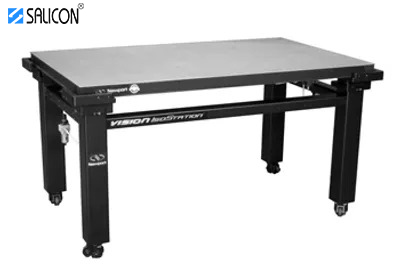

| Table Frame Vibration Isolation Table | |
|---|---|
| Size | 80cm × 80cm × 10cm (W × D × H) |
| Natural Frequency | Horizontal 1.5~1.7Hz, Vertical 1.2~1.5Hz |
| Damping | Pneumatic |
| Maximum Load | 300kg |
| Compressed Air | Yes |
| Auto Leveling | Yes |
| Height | 80cm |
| Weight | 180kg |
A wide variety of probing accessories for I-V/C-V measurements, pulsed I-V measurements, optimized C-V and LCR measurement, high voltage/high current measurement, high impedance active signal measurement RF/mmw tests, etc.
A wide variety of probing accessories for I-V/C-V measurements, pulsed I-V measurements, optimized C
...
Application: Light tight and EMI shielding.
Application: Light tight and EMI shielding.
...
DC Cable Assemblies
BNC, TRX, SMA, SSMC, Banana, Alligator clip coaxial/triaxial cable assemlies for I-V/C-V, pulsed I-V measeurement.
High Power Tests
SHV, MHV, coaxial/triaxial cable assemblies for high power tests and measurements.
RF, mmW
Coaxail RF cable assemblies and waveguides.
DC Cable Assemblies
BNC, TRX, SMA, SSMC, Banana, Alligator clip coaxial/triaxial
