Tekbox TBESDMP1 ESD-Target Mounting Panel

Code: TBESDMP1

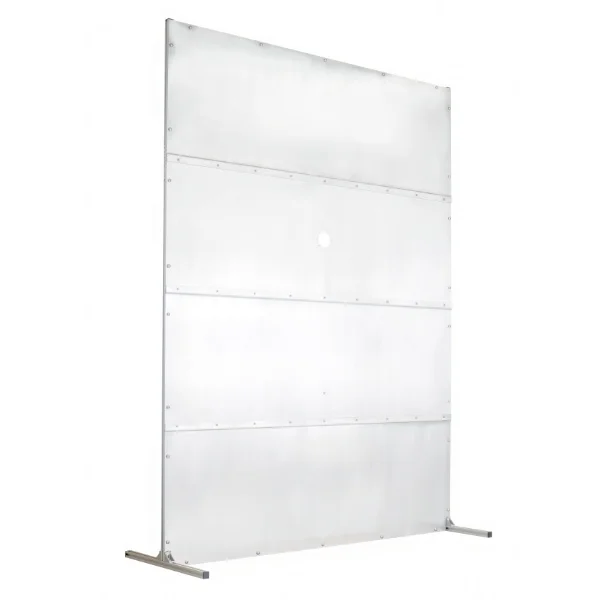

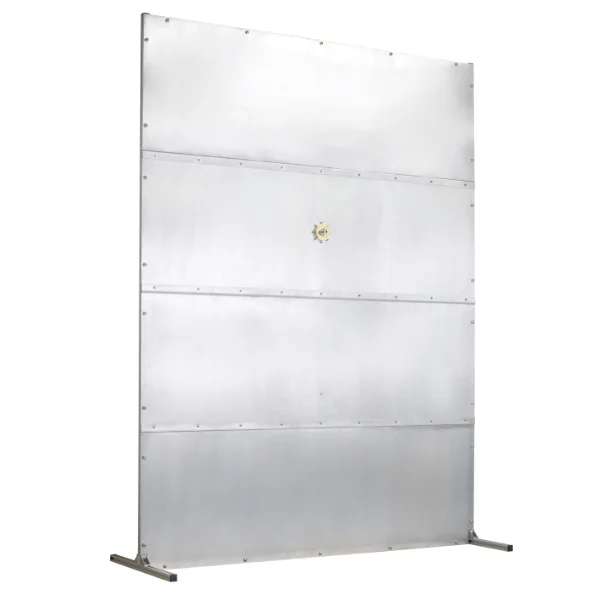

The TBESDMP1 ESD-Target mounting panel dimensions adress the changes introduced in the new Edition 3 of IEC 61000-4-2, published in 2025, which replaces Edition 2 from 2008. The dimensions of the vertical calibration plane changed from 120 cm x 120 cm to 120cm x 160 cm and the position of the ESD target moved from the center of the panel to 100cm above ground.

₹158,990.00 ₹99,790.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The TBESDMP1 ESD-Target mounting panel dimensions adress the changes introduced in the new Edition 3 of IEC 61000-4-2, published in 2025, which replaces Edition 2 from 2008. The dimensions of the vertical calibration plane changed from 120 cm x 120 cm to 120cm x 160 cm and the position of the ESD target moved from the center of the panel to 100cm above ground.

SPECIFICATIONS

  • Compliance: IEC 61000-4-2 Edition 3
  • Dimensions: 120 cm x 60 cm
  • ESD Target Position: 100 cm above ground
  • Panel Material: Aluminium A5052, 2mm thickness
  • Support Frame: 2020 extruded aluminium profiles; 120cm x 160 cm x 50 cm
  • Weight: 15.8 kg

Downloads

TBESDMP1 Datasheet/ Manual
