Description

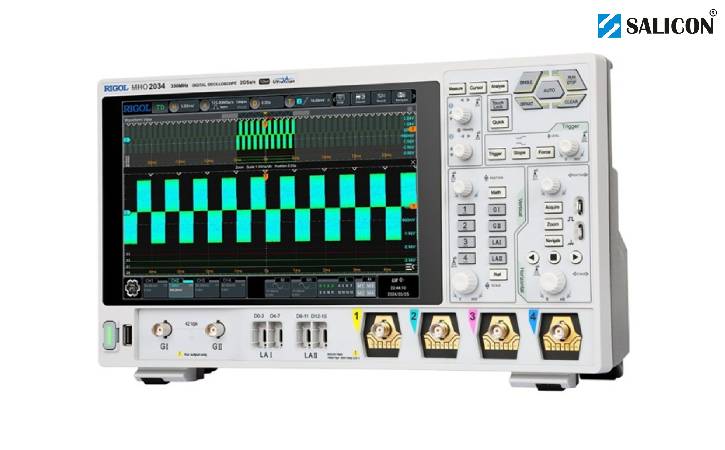

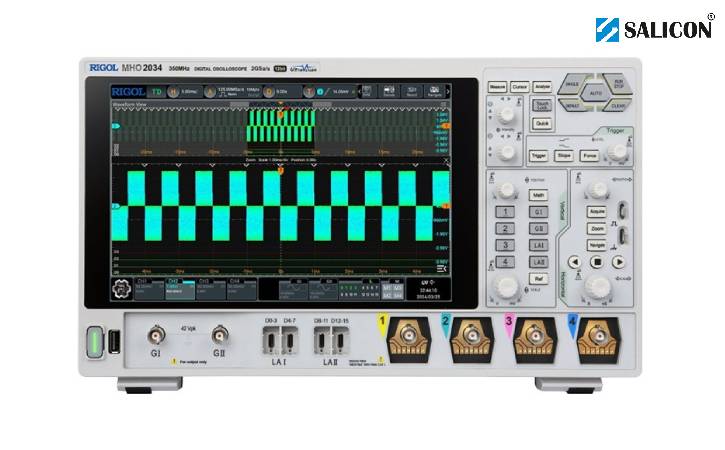

The MHO2000 Series is a high-resolution 4-Channel Digital Oscilloscope designed for the vast mainstream digital oscilloscope market to meet design, debug and test requirements. It is based on RIGOL’s brand new Centaurus technical platform. Its 1,000,000 wfms/s waveform capture rate (in fast capture mode), 500 Mpts memory depth, 12-bit resolution, excellent noise floor and vertical measurement accuracy can meet the test requirements for for higher accuracy.
The Rigol MHO2024 has several models supporting AFG, digital signal analysis, bode plot and other functions. It is easy to operate and control, and can be used for various complex test scenarios.
Features
- 12-bit Vertical Resolution: With 12-bit vertical resolution and up to 4096 levels of quantization bits – 16 times that of an 8-bit oscilloscope – measurement accuracy is greatly improved, enabling the capture of the smallest details of a waveform
- Low Noise: Make the most of 12 bit analog to digital converters with a significantly lower noise floor
- 500 Mpts Memory Depth: With up to 500 Million points in a single capture, use the deep memory to record events, navigate long continuous captures, or even further reduce the noise with high resolution mode
- Multi-Instrument Capability: Arbitrary Waveform/Function Generator (opt), digital signal analysis, and Bode plot analysis
The Rigol MHO2024 is equipped with a clear 10.1″ touch display with 1280*800 pixels.
| Features | MHO2000 |
|---|---|
| Channel | 4 |
| Bandwidth | 200 MHz – 350 MHz |
| Sample Rate | 2 channels with each 4 GSa/s |
| Waveform Capture Rate | 200,000 wfms/s – 1,000,000 wfms/s (UltraAcquire Mode) |
| Memory Depth (Standard) | 1 channel with 500 Mpts 2 channels with each 250 Mpts |
| Model | Bandwidth | Channel | Dual‑channel Waveform Generator Option | 16‑channel Logic Analyzer Option |
|---|---|---|---|---|
| MHO2024 | 200 MHz | 4 | ✔ | ✔ |
| MHO2034 | 350 MHz | 4 | ✔ | ✔ |
