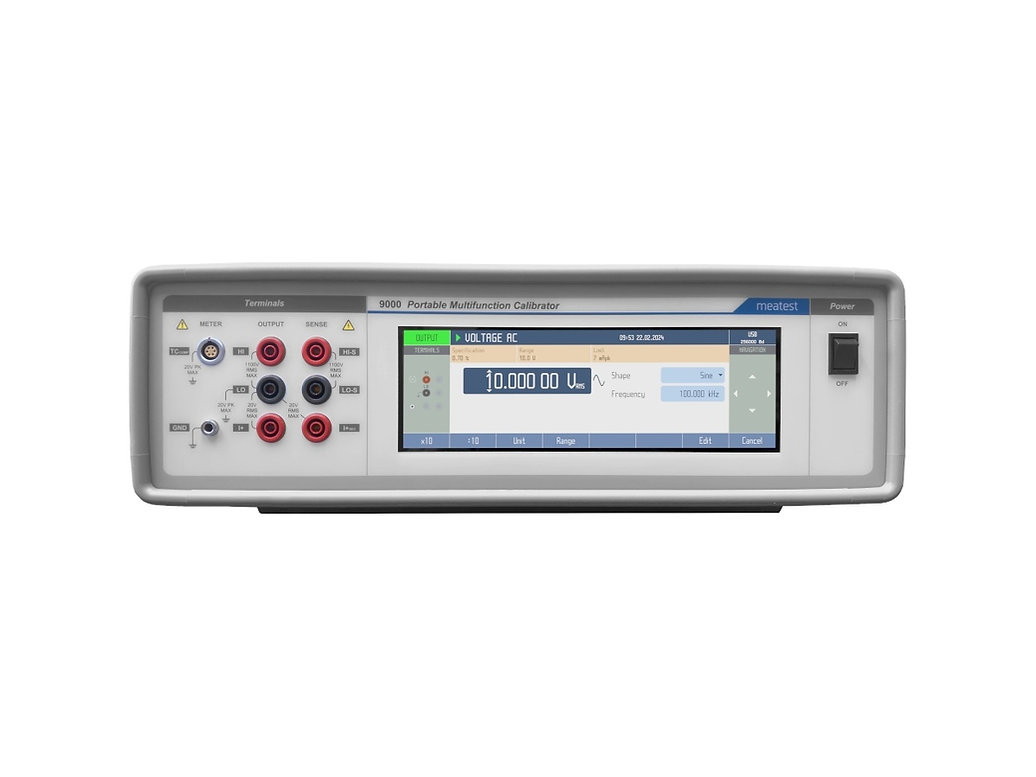

Meatest 9000 Portable Multifunction Calibrator 1050V 20.5A 60ppm

Code: 9000

65 ppm AC/DC multifunction calibrator designed specifically for calibration of 3½ and 4½ digit multimeters. 1050 V, 20.5 A, resistance, capacitance and temperature packed inside ultra portable, 11 kg body.



In Stock 2-3 Weeks
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

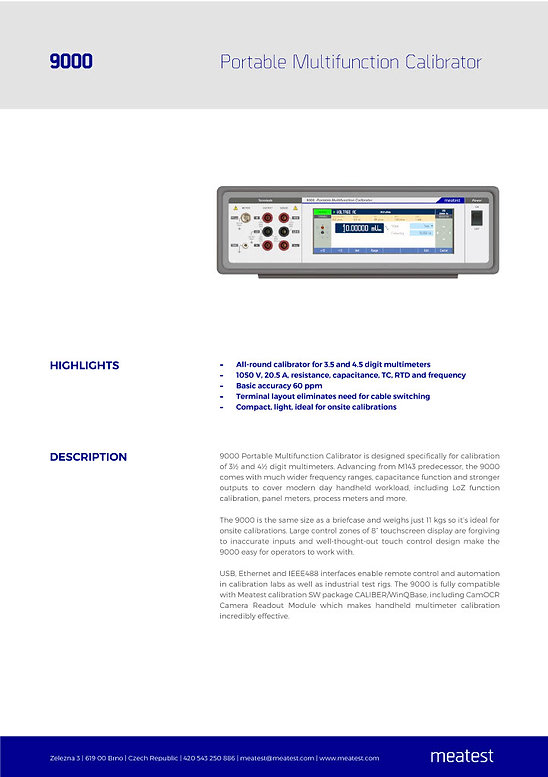

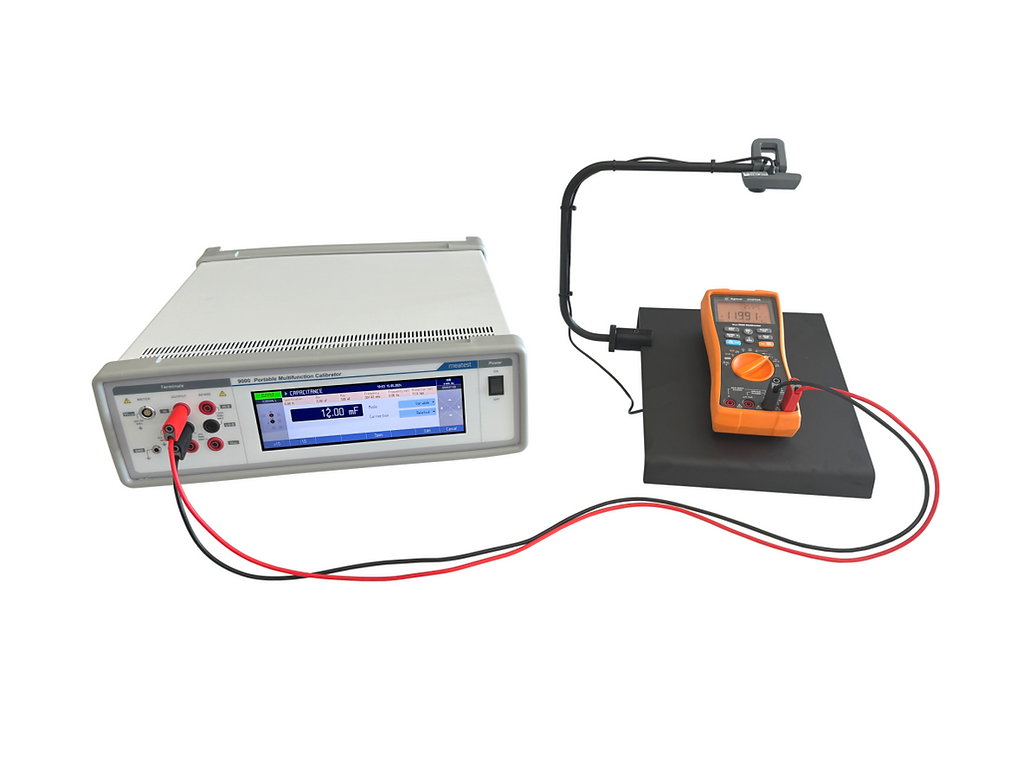

The Meatest 9000 Portable Multifunction Calibrator is designed specifically for calibration of 3½ and 4½ digit multimeters. Advancing from M143 predecessor, the 9000 comes with much wider frequency ranges, capacitance function and stronger outputs to cover modern day handheld workload, including LoZ function calibration, panel meters, process meters and more.

65 ppm AC/DC multifunction calibrator designed specifically for calibration of 3½ and 4½ digit multimeters. 1050 V, 20.5 A, resistance, capacitance and temperature packed inside ultra portable, 11 kg body.

  • Compact, light, ideal for onsite calibrations
  • 1050 V, 20.5 A, resistance, capacitance, TC, RTD and frequency
  • Basic accuracy 60 ppm
  • All-round calibrator for 3.5 and 4.5 digit multimeters

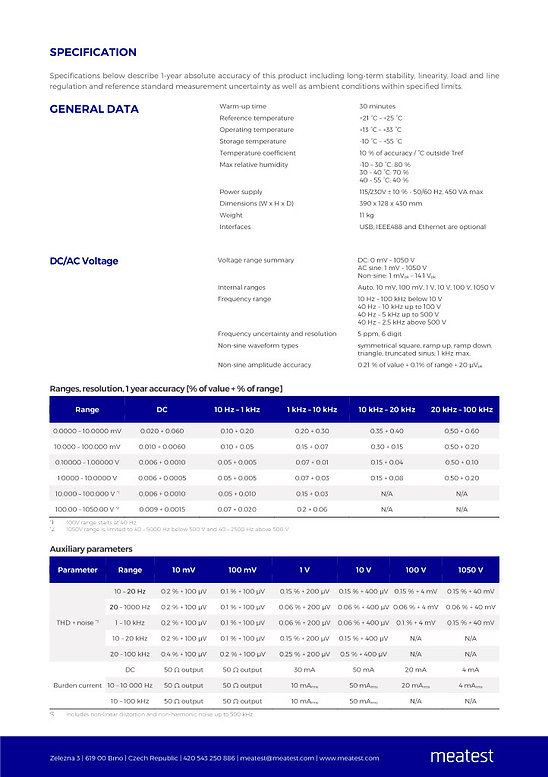

Specifications

DC voltage 0 – 1050 V
± 60 ppm / year
AC voltage 1 mV – 1050 V, 10 Hz – 100 kHz

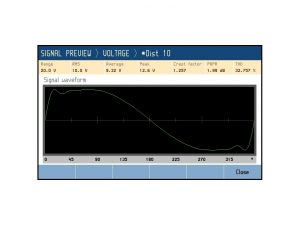

sinusoidal & non-sinusoidal waveforms
± 500 ppm / year

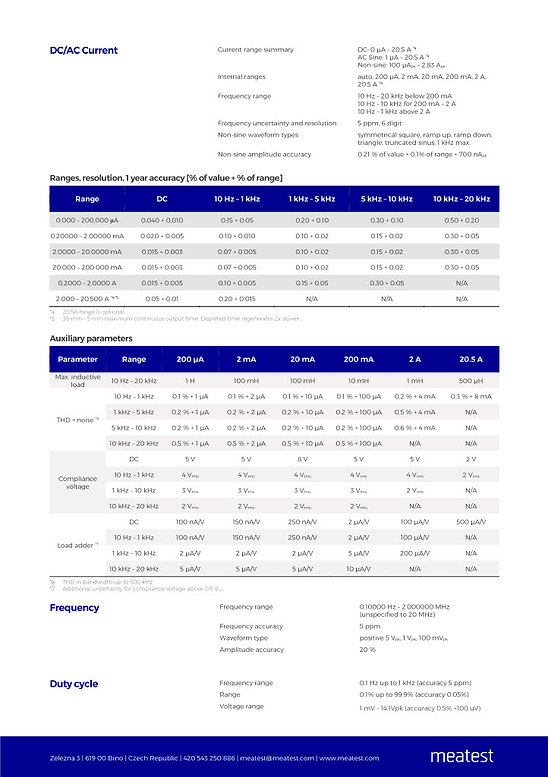

DC current 0 – 20.5 A
± 150 ppm / year
AC current 0 uA – 20.5 A, 10 Hz – 20 kHz
sinusoidal & non-sinusoidal waveforms
± 700 ppm / year

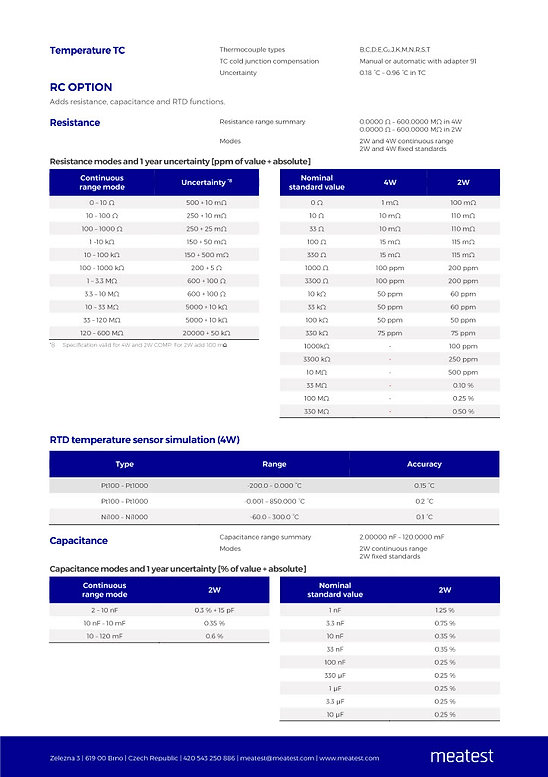

Resistance 0 Ω – 600 MΩ
± 50 ppm / year
Capacitance 1 nF – 120 mF
± 0.25 % / year
Temperature TC BCDEG2JKMNRST with cold junction compensation
RTD ± 0.1°C / year
Frequency 0.1 Hz – 20 MHz
± 5 ppm / year

Features

  • Compact, light, ideal for onsite calibrations
  • 1050 V, 20.5 A, resistance, capacitance, TC, RTD and frequency
  • Basic accuracy 60 ppm
  • All-round calibrator for 3.5 and 4.5 digit multimeters

Downloads

Datasheet

9000 Datasheet

Language: English
File Size: 2.61 KB

Manual

9000 Manual

Language: English
File Size: 3.00 MB

SCPI

9000 SCPI

Language: English
File Size: 3.00 MB

Videos

Reviews

There are no reviews yet.

Be the first to review “Meatest 9000 Portable Multifunction Calibrator 1050V 20.5A 60ppm”

Your email address will not be published. Required fields are marked *

Related products

    Multi-Product Calibrators

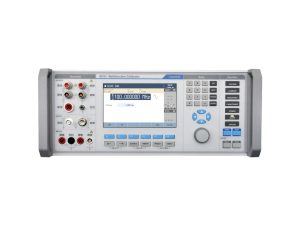

    Meatest 9010+ Multifunction Calibrator 1050V 30A AC/DC 10ppm Meter Calibration
