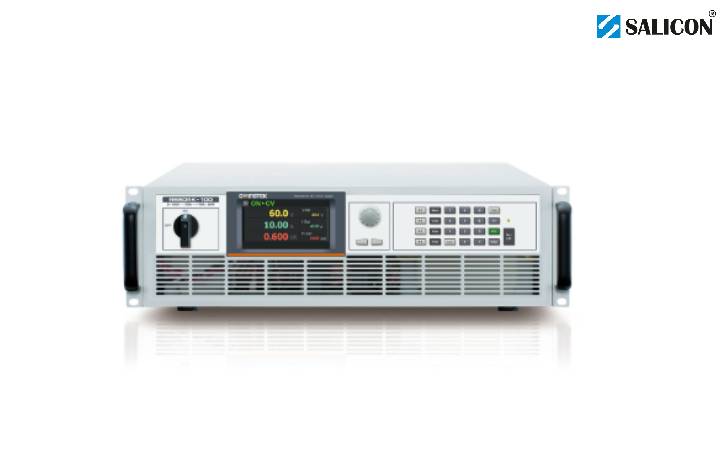

GW INSTEK RBS10K-500 Regenerative Bidirectional DC Source (10kW, 500 V, -80A ~ +80A)

Description

Category	Specification
Output Rating
Rated Power	± 10,000 W
Rated Voltage (Source)	0 V to 500 V
Operating Voltage (Sink)	10 V to 500 V
Rated Current	± 80 A
Output Voltage
Maximum Settable Voltage	500 V
Load Regulation CV	0.03 % FS
Line Regulation CV	0.015 % FS
Temperature Coefficient CV	100 ppm
Remote Sensing Compensation Voltage	25 V
Output Current
Settable Max Source Current	80 A
Settable Max Sink Current	-80 A
Load Regulation CC	0.1 % FS
Line Regulation CC	0.05 % FS
Ripple & Noise (rms)	0.1 % FS
Temperature Coefficient CC	200 ppm
Output Power
Settable Max Source Power	10,000 W
Settable Max Sink Power	-10,000 W
DC Output Resistor Range	0 Ω to 500 Ω
Protective Functions
OVP	0 % FS to 110 % FS
OCP	0 % FS to 110 % FS
Other Protections	OTP, Vsense reverse protection, Input voltage protection (OVP, UVP)
400 V Three‑phase Three‑wire Input
Nominal Input Rating	380 Vac to 460 Vac
Input Voltage Range	342 Vac to 510 Vac
Input Frequency Range	47 Hz to 63 Hz
Output Power	10,000 W
Input Current (Max) at 342 Vac	18.4 A
Input Power (Max)	11 kVA
General Specifications
Operating Temperature	0 °C to 40 °C
Operating Humidity	20 % to 90 % RH
Storage Temperature	-10 °C to 70 °C
Storage Humidity	20 % to 90 % RH
Altitude	1000 m
Dimensions (W × H × D)	482 × 133.3 × 790 mm
Weight	32 kg
