Description

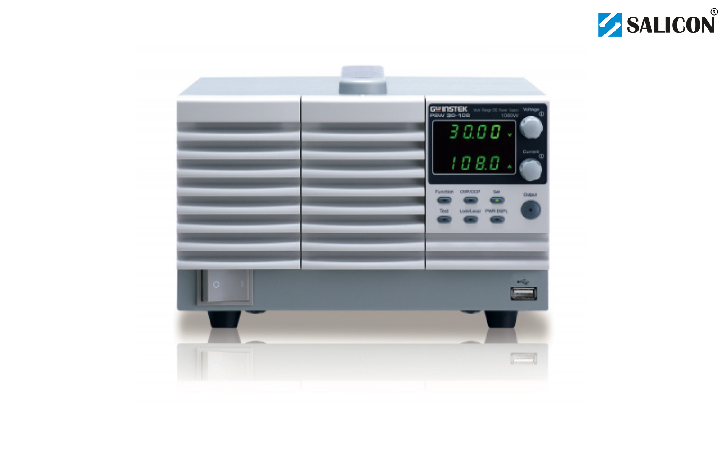

GW Instek PSW 30-108 Multi Range DC Power Supply voltage 30V, current 108A, power 1080W.
The PSW-Series is a single-output multi-range programmable switching DC Power Supply covering a power range up to 1080W. This series of products include eighteen models with the combination of 30V, 40V, 80V, 160V, 250V, and 800V rated voltages and 360W, 720W and 1080W maximum output powers. The multi-range feature allows the flexible and efficient configuration of voltage and current within the rated power range.
As the PSW-Series can be connected in series for maximum 2 units or in parallel for maximum 3 units, the capability of connecting multiple PSW units for higher voltage or higher current output provides a broad coverage of applications. With the flexibility of multi-range power utilization and series/parallel connection, the PSW Series significantly reduces the user’s investment for various power supply products to accommodate the projects with different power requirements.
The CV/CC priority selection of the PSW-Series is a very useful feature for DUT protection. The conventional power supply normally operates under CV mode when the power output is turned on. This could bring a high inrush current to the capacitive load or current-intensive load at the power output-on stage. Taking the I-V curve verification of LED as an example, it becomes a very challenging task to perform this measurement using a conventional power supply. With LED connected to a power supply under CV mode as the initial setting, when the power output is turned on and the voltage rises to the LED forward voltage, the current will suddenly peak up and exceed the preset value of current limit. Upon detecting this high current, the power supply starts the transition from CV mode to CC mode.
Though the current becomes stable after the CC mode is activated, the current spike occurred at the CV and CC crossover point may possibly damage the DUT. At the power output-on stage, the PSW-Series is able to run under CC priority to limit the current spike occurred at the threshold voltage and therefore protect DUT from the inrush current damage.
Main Features of GW Instek PSW Series:
- Voltage Rating: 30V/80V/160V/250V/800V
- Output Power Rating: 360W ~ 1080W
- Constant Power Output for Multiple Range (V&I) Operation
- CV/CC Priority; Particularly Suitable for the Battery and LED Industry
- Adjustable Slew Rate
- Series Operation: Up to 2 units (30V, 80V, 160V models only)
- Parallel Operation: Up to 3 units
- High Efficiency and High Power Density
- 1/2, 1/3, 1/6 Rack Mount Size Design (EIA/JIS Standard) for 360W/720W/1080W
- Standard Interface: LAN,USB,Analog Control Interface
- Optional Interface: GPIB-USB Adaptor, RS232-USB Cable
- LabView Driver
Standard Accessories
- x1 CD-ROM (Programming Manual, User Manual)
- x1 Power Cord (Region dependent)
- x1 GTL-123 Test Lead
- x1 GTL-240 USB Cable”L” Type
- x1 PSW-004 Basic Accessories Kit
- x1 PSW-009 Output terminal cover
Optional Accessories
- PSW-001 Accessory Kit
- PSW-002 Simple IDC Tool
- PSW-003 Contact Removal Tool
- PSW-005 Cable for 2 Units of PSW-Series in series mode connection
- PSW-006 Cable for 2 Units of PSW-Series in parallel mode connection
- PSW-007 Cable for 3 Units of PSW-Series in parallel mode connection
- PSW-010 Large filter (for PSW 720W/1080W models)
- GUG-001 GPIB to USB Adaptor
- GRA-410-J Rack Mount Kit (JIS)
- GRA-410-E Rack Mount Kit (KIA)
- GET-001 Extended Terminal with max. 30A
- GET-005 Extended European Terminal with maximum 20A
- GTL-248 GPIB Cable, 2000mm
- GTL-250 GPIB Cable, 600mm
- GUR-001A USB TO RS-232 Cable, 3000mm
| Model Name | Voltage | Current | Power |
|---|---|---|---|
| PSW 30-36 | 0 – 30 V | 0 – 3.6 A | 360 W |
| PSW 30-72 | 0 – 30 V | 0 – 7.2 A | 720 W |
| PSW 30-108 | 0 – 30 V | 0 – 10.8 A | 1080 W |
| PSW 40-27 | 0 – 40 V | 0 – 2.7 A | 108 W |
| PSW 40-54 | 0 – 40 V | 0 – 5.4 A | 216 W |
| PSW 40-81 | 0 – 40 V | 0 – 8.1 A | 324 W |
| PSW 80-13.5 | 0 – 80 V | 0 – 1.35 A | 108 W |
| PSW 80-27 | 0 – 80 V | 0 – 2.7 A | 216 W |
| PSW 80-40.5 | 0 – 80 V | 0 – 4.05 A | 324 W |
| PSW 160-6.75 | 0 – 160 V | 0 – 0.675 A | 108 W |
| PSW 160-13.5 | 0 – 160 V | 0 – 1.35 A | 216 W |
| PSW 160-20.25 | 0 – 160 V | 0 – 2.025 A | 324 W |
| PSW 250-4.5 | 0 – 250 V | 0 – 0.45 A | 108 W |
| PSW 250-9 | 0 – 250 V | 0 – 0.9 A | 216 W |
| PSW 250-13.5 | 0 – 250 V | 0 – 1.35 A | 324 W |
| PSW 800-1.44 | 0 – 800 V | 0 – 0.144 A | 108 W |
| PSW 800-2.88 | 0 – 800 V | 0 – 0.288 A | 216 W |
| PSW 800-4.32 | 0 – 800 V | 0 – 0.432 A | 324 W |
