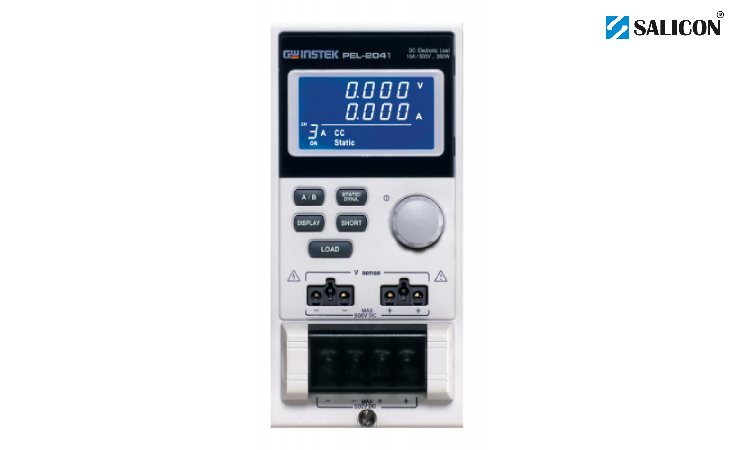

GW Instek PEL-2041A DC Electronic Load Module, Single Channel 350W/500V/10A.
The PEL-2000A Series is designed to meet the continuing shift toward high speed operation in today’s semiconductor market. As the power supply units, DC-DC converters, and batteries that drive semiconductor circuits to follow this shift, power supply design, quality inspection, and characteristic certification using high-speed performance loads have become necessary.
Features:
- Sequence function to do high Efficient load simulations
- Flexible configuration with mainframes and plug-in modules
- Multiple independent load inputs up to 8 channels in a mainframe
- Parallel connection of inputs for increased load capacity
- Parallel connection of inputs for static and dynamic tests
- OPP/OCP/OVP/OTP protections
- External channel control/monitoring via an analog control connector
- Multi-Interface USB Device/Host, RS-232C, and LAN (Optional)
Standard Accessories
- 1x Power Cord
- 1x CD ROM Contains PEL-2000A Series Electronic DC Load User Manual
- 1x Programming Manual and USB Driver
- GTL-120 Load cables 2x red, 2x black (per load module)
- GTL-121 Remote sense cables , 1x red, 1x black (per load module)
Optional Accessories
- PEL-002 PEL-2000A Rack Mount kit (handle only)
- PEL-003 Panel Cover
- PEL-016 LAN Card
- GTL-249 Frame Link Cable
- GTL-246 USB Cable, USB 2.0 A-B TYPE Cable, 4P
- GTL-232 RS-232C Cable, 9-pin, F-F Type, null modern, 2m
| PEL-2000A/B Series Specifications | |||
|---|---|---|---|
| Model | Maximum Power | Maximum Current | Maximum Voltage |
| PEL-2020A | 100 W | 20 A | 80 V |
| PEL-2030A | 250 W | 40 A | 80 V |
| PEL-2040A | 350 W | 70 A | 80 V |
| PEL-2041A | 350 W | 10 A | 500 V |
| PEL-2020B | 100 W | 20 A | 80 V |
| PEL-2030B | 250 W | 40 A | 80 V |
| PEL-2040B | 350 W | 70 A | 80 V |
| PEL-2041B | 350 W | 10 A | 500 V |
