Description

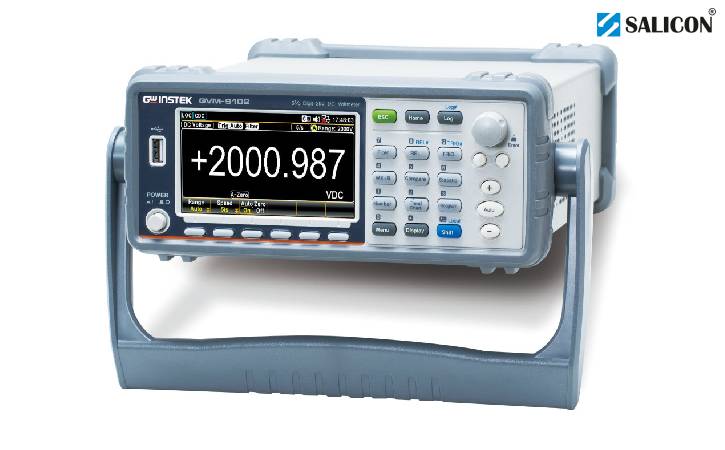

GW Instek GVM-9102 is a 6 ½ Digit 2 kV DC Voltmeter
Main Features:
- 4.3-inch TFT graphical display with numerical and graphical modes (histogram, bar meter, trend chart).
- DC voltage basic accuracy: 0.01%.
- Sampling rate up to 10k readings per second.
- Mathematical functions: dB, dBm, Compare, MX+B, Percent, and 1/X.
- Internal memory capacity of 100k for statistical analysis and trend visualization.

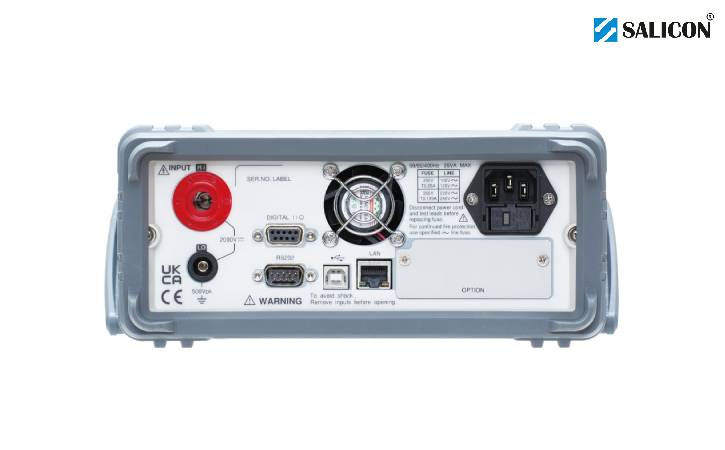

- Standard communication interfaces: USB host/device, RS-232C, LAN; optional GPIB interface.
- Direct measurement up to 2400 V DC without attenuators.
Operational Advantages:
The GVM-9102 simplifies operations with numeric soft keys for input settings and upper/lower limit adjustments. It supports multiple languages (English, Traditional Chinese, Simplified Chinese, Japanese, and Korean) and is compatible with LabVIEW software for system integrations.
Technical Specifications:
| Feature | Detail |
|---|---|
| Display | 4.3-inch TFT graphical display |
| DCV Accuracy | 0.01% |
| Sampling Rate | 10k/sec |
| Internal Memory | 100k |
| Mathematical Functions | dB, dBm, Compare, MX+B, Percent, 1/X |
| Communication Interfaces | USB host/device, RS‑232C, LAN; optional GPIB |
Included Accessories:
- Safety Instructions x1.
- Power Cord x1.
- USB Cable GTL-246 x1.
- Test Leads GHT-116R x1 and GHT-116B x1.
Optional Accessories:
- RS-232C Cable (GTL-234).
- GPIB Cable (GTL-248).
- Rack Mount Kit (GRA-422/GRA-454).
