Description

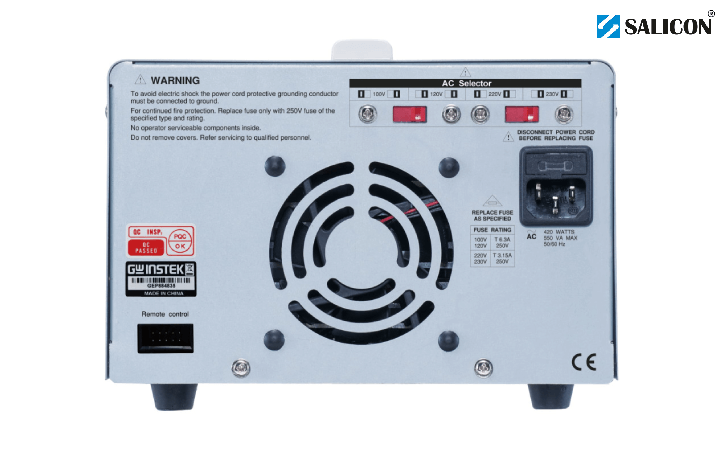

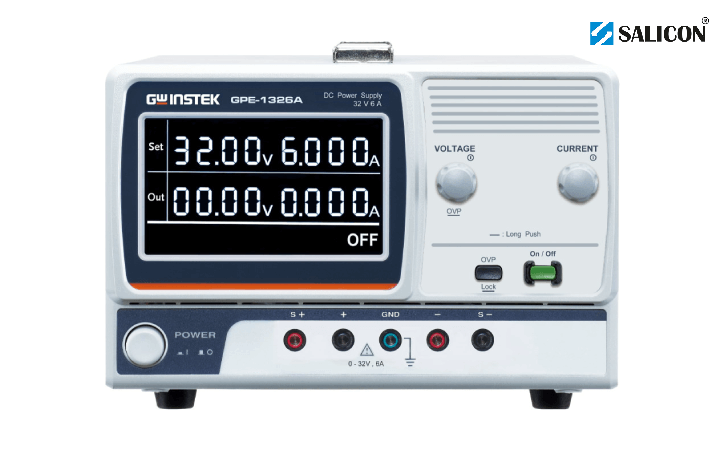

GW Instek GPE-1326A is a single-channel linear DC power supply with 192W output power, designed for laboratory, research, development, and production applications requiring high stability and precision. Features a 4.3″ color LCD display, encoder control for precise settings, and advanced protection functions to ensure safety and reliability.
Main features:
- Output voltage: 0-32V
- Output current: 0-6A
- Maximum power: 192W
- Setting/readback resolution: 10mV/1mA
- Readback resolution: 0.1mV/10μA
- Ripple & noise: ≤1mVrms (5Hz-1MHz)
- 4.3″ color LCD display
- Remote Sense function for voltage drop compensation
- Automatic CV/CC mode
- Protections: OVP, OCP, OTP, reverse polarity
- Digital control with encoder switch
- Panel lock function for safety
- Output On/Off control
- Analog remote On/Off control
Included accessories:
- Power cord
- Test leads GTL-204A (European type)
- Test leads GTL-203A (European type)
- Documentation
Ideal for scientific research, electronic component testing, applications requiring low noise and voltage stability, 3C products.
| Model | CH1 | CH2 | CH3 | CH4 | Total Power |
|---|---|---|---|---|---|
| GPE-1326A | 32V / 6A | – | – | – | 192 W |
| GPE-2323A | 32V / 3A | 32V / 3A | – | – | 192 W |
| GPE-3323A | 32V / 3A | 32V / 3A | 5V / 5A | – | 217 W |
| GPE-4323A | 32V / 3A | 32V / 3A | 5V / 1A | 15V / 1A | 212 W |
