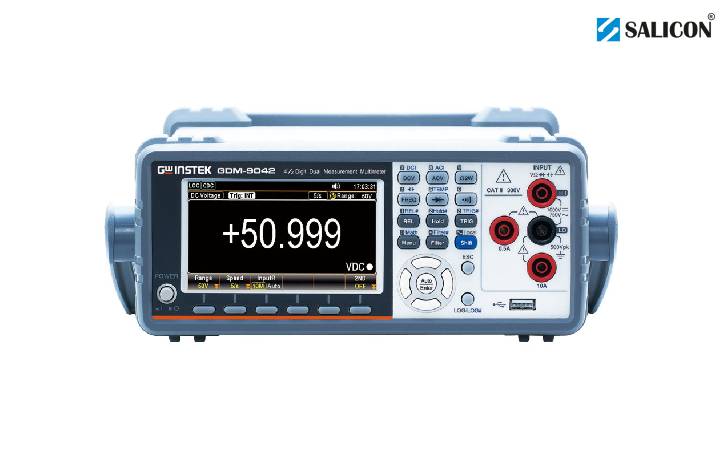

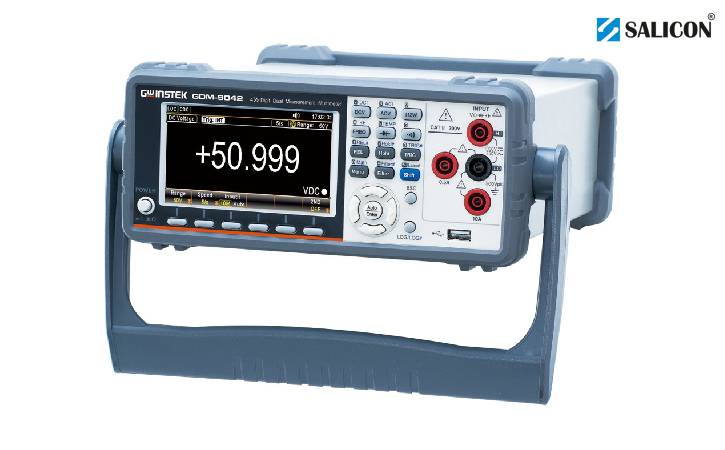

GW Instek GDM-9042 4½ Digit (50,000 Counts) DMM with USB Storage/Device

Description

GW Instek GDM-9042 is a 4½ digits (50,000 counts) dual measurement multimeter with USB device and A.I. (Automatic Identification) measurement.

Included accessories:

• 1 x Safety Instruction Sheet
• 1 x Power Cord
• 1 x GTL-207A Test Lead

Optional:

• GDM-90G1 GPIB Interface
  Note: Optional GPIB interface is only for GDM-9042 and it must be installed in factory.

Key features:

• 50,000 Counts
• 4.3″ TFT Graphic LCD
• DCV Basic Accuracy: 0.02%
• A. I. Measurement offers automatic identification and measurement for Voltage, Resistance, Diode, or Continuity tests without the need for manual selection
• 11 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire Resistance, Frequency, Period, Diode, Continuity, Capacitance and Temperature
• True RMS (AC, AC+DC) measurements
• Dual Measurement Function to Providing Two Selected Measurement Simultaneously
• Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm
• Standard Interfaces: USB Device (support USBCDC and USBTMC)
• Optional Interface: GPIB (factory install)
• Temperature measurement function
• USB storage for Data collection

Automatic Identification (A.I.) Measurement

The GDM-904x series is equipped with the first Automatic Identification (A.I.) measurement function implemented in a desktop meter. Once activated, this function can automatically identify the measurement signal, including AC/DC voltage, diode, resistance and continuity test, without the need for users to manually switch the required measurement function. The GDM-904x series will automatically switch the measurement items and perform the measurements, allowing users to perform measurements more smoothly and save operation time.
