Description

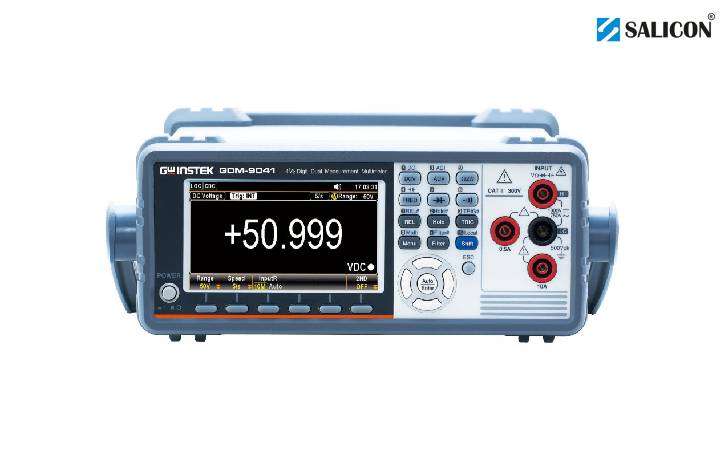

GW Instek GDM-9041 is a 4½ digits (50,000 counts) dual measurement multimeter with USB device and A.I. (Automatic Identification) measurement.
Included accessories:
- 1 x Safety Instruction Sheet
- 1 x Power Cord
- 1 x GTL-207A Test Lead
Key features:
- 50,000 Counts
- 4.3″ TFT Graphic LCD
- DCV Basic Accuracy: 0.02%
- A. I. Measurement offers automatic identification and measurement for Voltage, Resistance, Diode, or Continuity tests without the need for manual selection
- 11 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire Resistance, Frequency, Period, Diode, Continuity, Capacitance and Temperature
- True RMS (AC, AC+DC) measurements
- Dual Measurement Function to Providing Two Selected Measurement Simultaneously
- Max./Min., REL, MX+B, 1/X, Ref%, Compare, Hold, dB, dBm
- Standard Interfaces: USB Device (support USBCDC and USBTMC)
- Optional Interface: GPIB (factory install for GDM-9042 only)
- Temperature measurement function (GDM-9042 only)
- USB storage for Data collection (GDM-9042 only)
Automatic Identification (A.I.) Measurement
The GDM-904x series is equipped with the first Automatic Identification (A.I.) measurement function implemented in a desktop meter. Once activated, this function can automatically identify the measurement signal, including AC/DC voltage, diode, resistance and continuity test, without the need for users to manually switch the required measurement function. The GDM-904x series will automatically switch the measurement items and perform the measurements, allowing users to perform measurements more smoothly and save operation time.
| Model | GDM‑9041 | GDM‑9042 | GDM‑9042 with GPIB |
|---|---|---|---|
| Maximum Counts | 51,000 | 51,000 | 51,000 |
| Temperature Measurement Function | – | ✔ | ✔ |
| USB Storage for Data Collection | – | ✔ | ✔ |
| GPIB Interface (factory installed) | – | – | ✔ |
