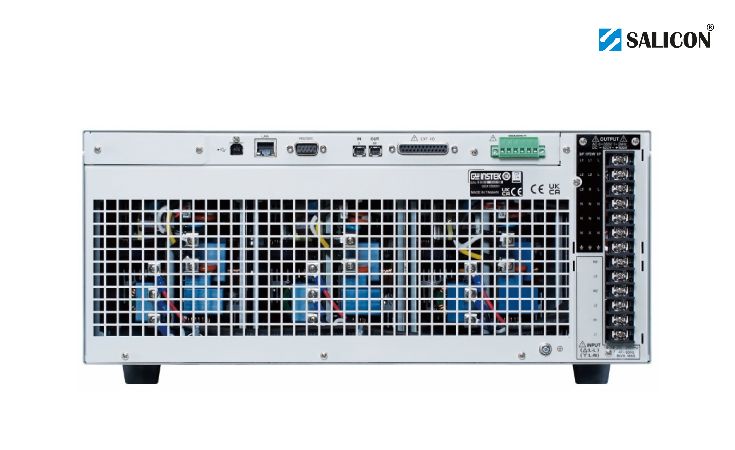

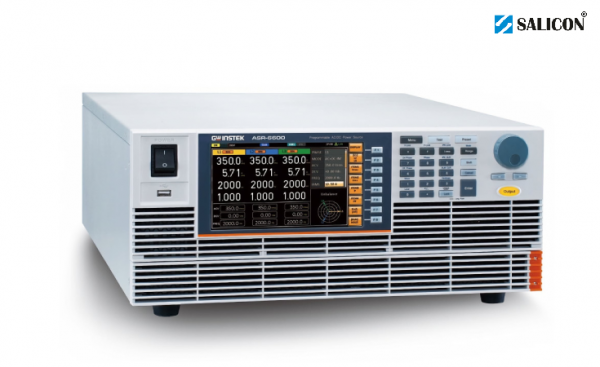

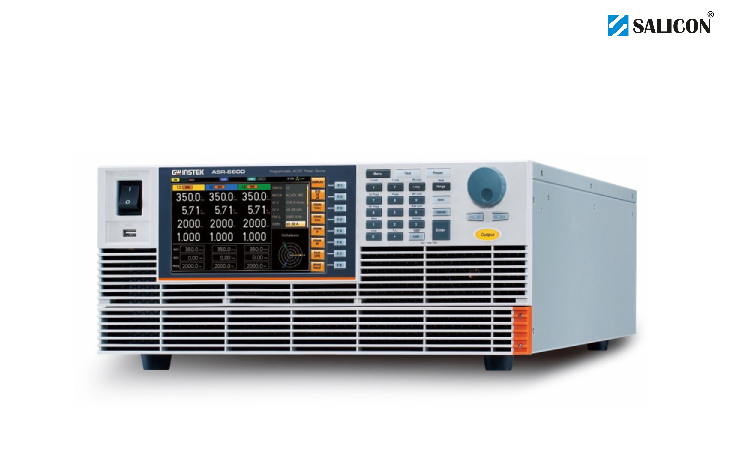

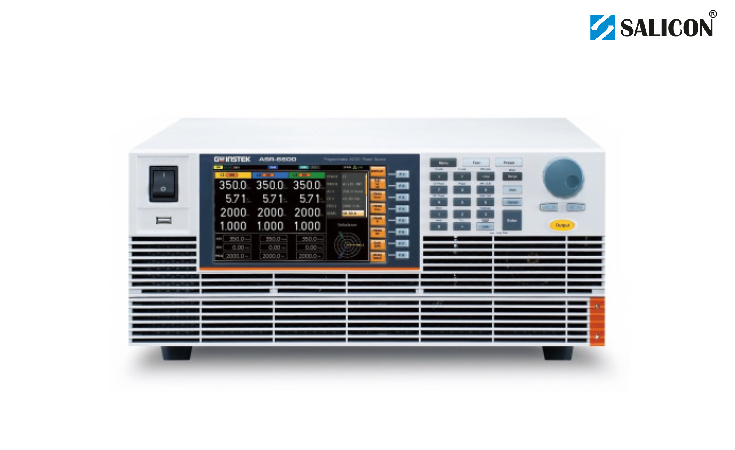

GW Instek ASR-6600 6kVA AC/DC Programming Source

Description

GW Instek ASR-6450 is a high-performance AC/DC power source with 4.5 kVA AC output capacity.

Included accessories:

• 1 x Quick Start Guide
• 1 x Safety guide
• 1 x Input terminal cover
• 1 x Output terminal cover
• 1 x Copper plate for delta connection input (Mark 1)
• 1 x Copper plate for single phase and Y connection input (Mark 2)
• 1 x Copper plate for delta connection input (Mark 3)
• 1 x Copper plate for 1P output (Mark 4)
• 1 x GRA-451-E Rack mount adapter (EIA)
• 1 x GTL-246 USB cable (USB 2.0 Type A – Type B cable, approx. 1.2m)

GW Instek ASR-6000 Series features:

• Adopts third-generation semiconductor silicon carbide (SiC) technology to create a 4U 6kVA high-performance AC/DC power source with high power density.
• AC input supports single-phase and three-phase, phase voltage from 200V to 240V ±10% (Delta or Y connection)
• 10 output modes: including external input signal frequency and mains synchronization (SYNC), external voltage controlled internal amplifier output (VCA).
• Multi-channel output function
• Supports 1P2W, 1P3W, 3P4W output
• AC maximum output phase voltage: 350Vrms line voltage: 700Vrms
• AC balanced and unbalanced three-phase, phase loss output functions
• Programmable output impedance adjustment
• Dual-channel voltage/current output monitoring function
• Voltage output rise time can be adjusted in three ranges
• Supports sequence editing and emulation output mode
• Powerful arbitrary waveform editing and output function, capable of editing and outputting tens of thousands of waveforms.
• Advanced web server control to support data acquisition function
• 100th order harmonic measurement function
• Support Parallel Connection Type Up to 18kVA / 18kW Maximum
• Standard interfaces: RS-232C, USB, LAN
• Optional interfaces: CAN Bus, DeviceNet, GPIB

ASR-6000 main application:

1. Server/communication power supply manufacturer
2. 6kVA On-board charger
3. Uninterruptible power supply system (UPS)
4. AC inverter
5. AC three-phase motor control, and protection device
6. Military industry, scientific research, education
