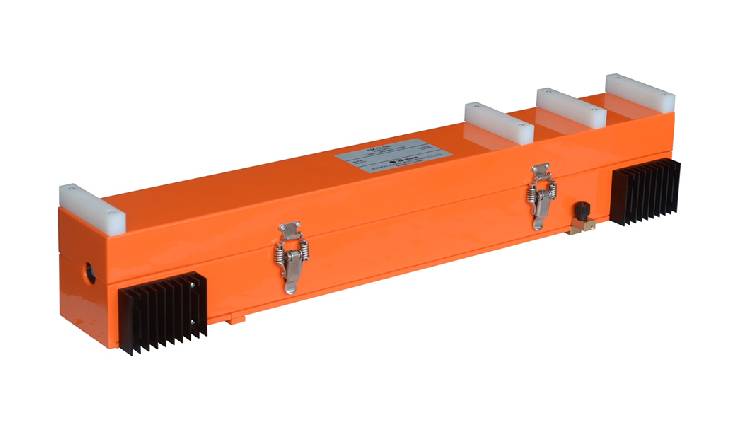

EM CL100 is designed for the conducted immunity tests of cables for radio-frequency magnetic field disturbances as per IEC 61000-4-6. The calibration accessories are provided together with the electromagnetic clamp.

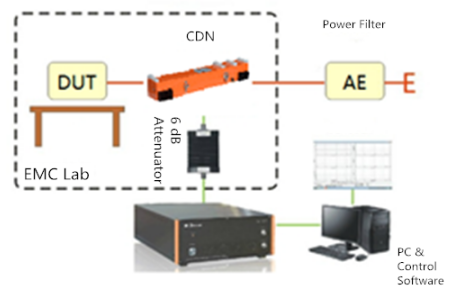

Equipment Connection Diagram:
| Technical Parameters | |
|---|---|
| Frequency Range | 0.1 MHz – 1,000 MHz |
| Nominal Impedance | 50Ω |
| Connector Type | N (f) |
| Max Input Electric Level | 0.15 Hz – 100 MHz, 100 W, 15 min; 100 MHz – 230 MHz, 100 W, 5 min; 230 MHz – 1,000 MHz, 50 W, 3 min |
| Max Cable Size | 18 min |
| Dimension | 664 x 130 x 128 mm |
| Weight | 7 kg |
Model：CMAD 200M
The CMAD 200M common-mode disturbances absorption clamp is designed in accordance with CISPR 16-1-4:2019.
Model：CMAD 200M
The CMAD 200M common-mode disturbances absorption clamp is des
...
Model：EMID 150K
EMID 150K electromagnetic interference decoupling clamp is used for the decoupling of RF signals at the auxiliary equipment end in the immunity test of conducted disturbances induced by RF fields.
Model：EMID 150K
EMID 150K electromagnetic interference decoupling clamp is use
...
