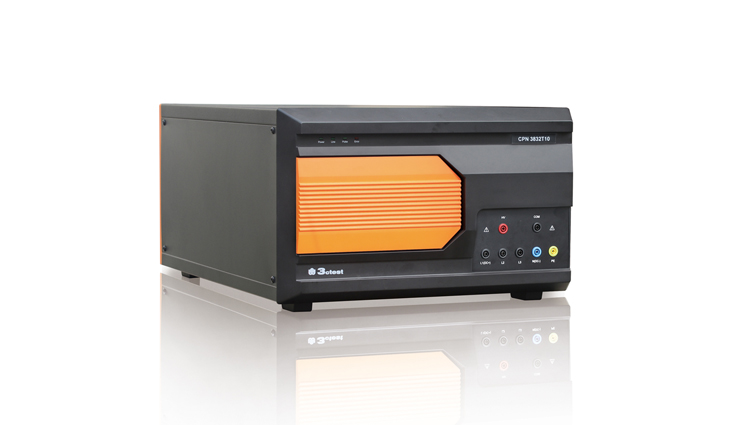

CPN 3832T10 Current wave coupled decoupling network，With the host S6C1000 for 8/20μs current waveform test, the coupled pulse current up to 10 kA. EUT maximum load capacity AC 380V 32A three-phase five-wire, DC 380V 32A, the equipment is simple and fast operation, high reliability.
| Comply with IEC 61643-11 pulse current immunity test technical parameters | |
|---|---|
| Three-phase Fully automatic coupling/decoupling
network |
Conform to the EN/IEC 61643-11, GB/T 18802.11 coupling pulse current wave test
Current up to: 10kA (8/20 μs) Note: The actual output pulse voltage value of the coupling/decoupling network depends on the set value of the pulse generator |
| Output Current | Up to 10kA(8/20us) |
| Coupled Network Port | L1、L2、L3、N、PE |
| Coupling Path | L1、L2、L3、N、arbitrary combination |
| Coupled Switching Mode | Automatic switching |
| Coupled Apparatus | Direct coupling |
| EUT Load Capacity | Max AC 380V（Lx – Lx）、32A
Max DC 380V 32A |
| General parameters | |
| Working Power supply | AC 110V/220V ±10%，50/60Hz ±5% |
| Fuse | 6A |
| Maximum Power Consumption | 200 W |
| Auxiliary Interface | D-sub 25p |
| Grounding Connection Mode | Use flat grounding line |
| Dimension | 6U |
| Weight | Approx 47Kg |
| Ambient Temperature | 15-35℃ |
| Relative Humidity | 45% – 75% |
| Atmospheric Pressure | 86kPa – 106kPa |
Model：S16C4000
The impulse current simulator S16C4000 is designed as per IEC 61643-11 and GB/T 18802.11, which is capable of generating 8/20 μs short-circuit current waveform with maximum current 40 kA.
