Description
The CMAD 200M common-mode disturbances absorption clamp is designed in accordance with CISPR 16-1-4:2019, it can be used for suppression of common-mode disturbances on transmission cable (coaxial cables, unshielded cables etc.)

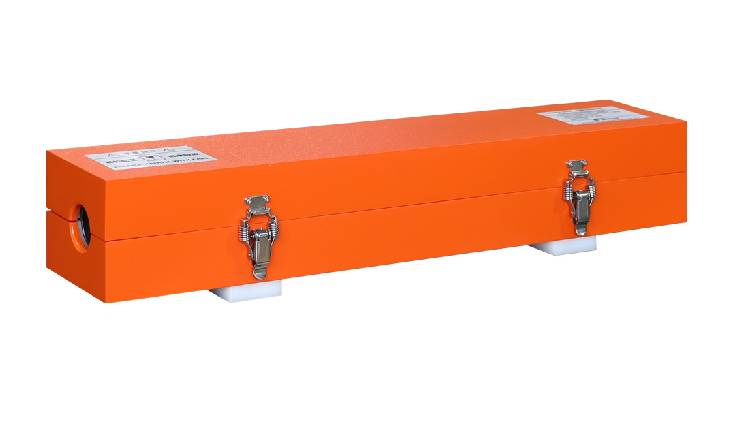

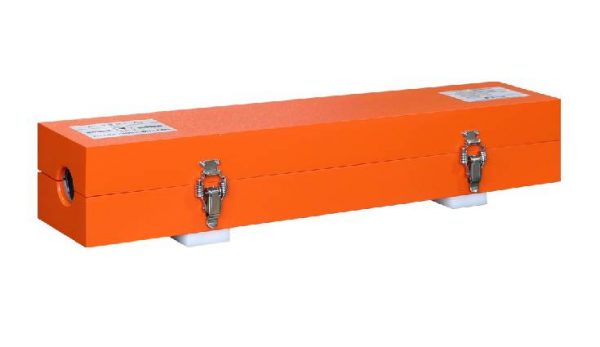

Common-mode Disturbances Absorption Clamp CMAD 200M
Standard
- CISPR 16-1-4:2019
Specifications
| Parameters | |
|---|---|
| Frequency | 300 MHz ~ 200 MHz |
| Usable Frequency | 10 MHz ~ 1 GHz |
| S11 (30 MHz) | 0.6 ~ 0.75 |
| S11 (200 MHz) | 0.4 ~ 0.55 |
| S21 | < 0.25 |
| Max. Cable Diameter | 38 mm |
| Dimension | 617 mm (L) * 140 mm (W) * 115 mm (H) |
| Weight | 12 kg |
