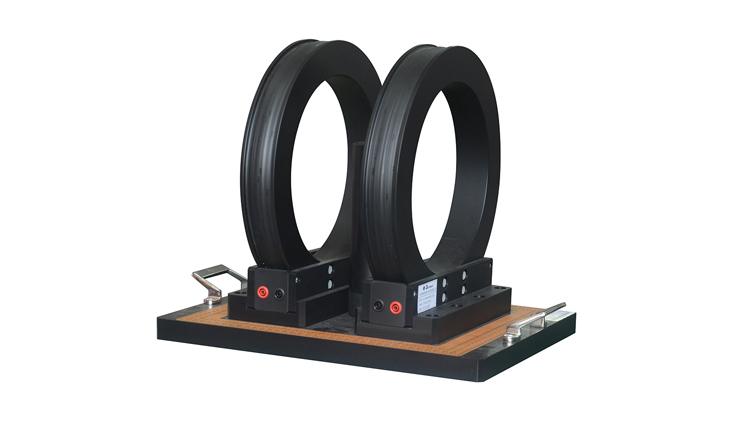

AC Helmholtz Coil TYXH 03100

Model：TYXH 03100

The Helmholtz Coil TYXH 03100 is designed as per MIL-STD-461E\F\G RS101 and ISO 11452-8.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The Helmholtz Coil TYXH 03100 is designed as per MIL-STD-461E\F\G RS101 and ISO 11452-8, it is used for generating AC magnetic field in magnetic field immunity test.

Features:

  • Wide testing frequency range
  • Wide magnetic strength dynamic range
  • Good magnetic strength distribution and homogeneity

Standard

  • ISO 11452-8
  • MIL-STD-461E/F/G
  • GJB151A/B RS101

Specifications

Technical Parameters
Frequency DC-150 kHz
Magnetic Field Strength ≤1000 A/m@1 kHz
≤10 A/m@150 kHz
Coil Diameter 300 mm
Max. Current (RMS) 20 Amperes
Dimension 470×360×320 mm
Weight 15 kg

Downloads

Adobe PDF

AC Helmholtz Coil TYXH 03100 Datasheet

Language: English
