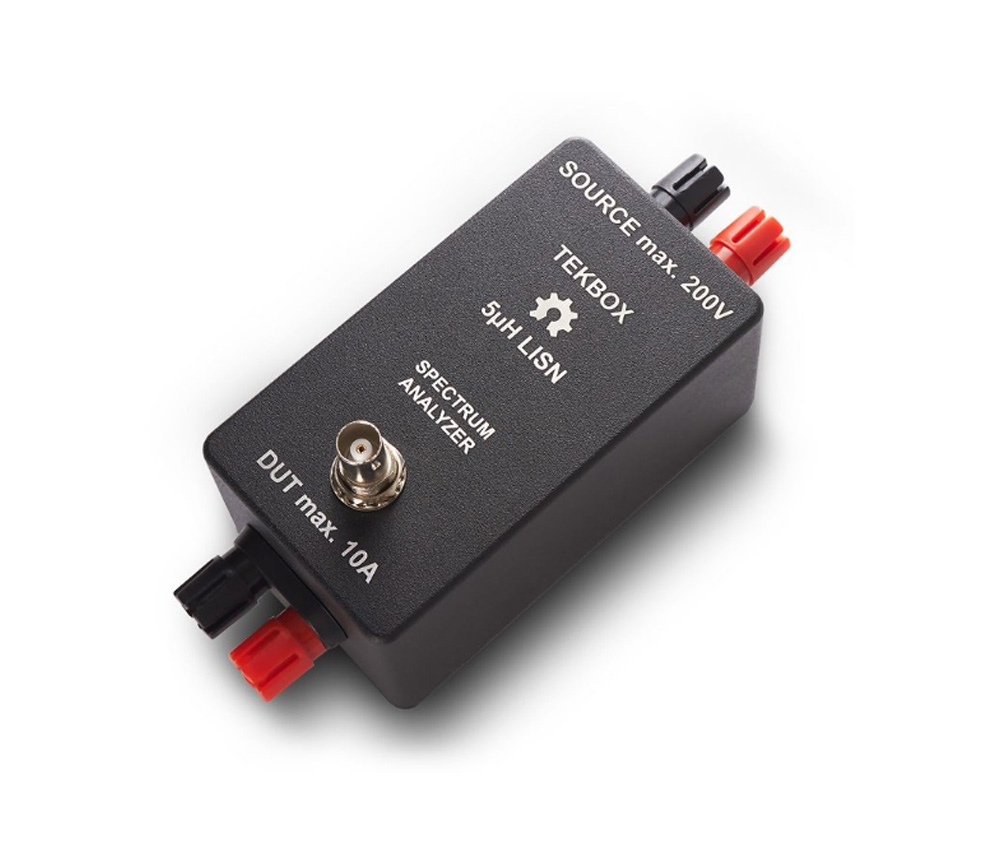

LISN TekBox TBOH01

Code: TBOH01

5 μH network simulation (LISN) for DC devices up to 10 A.

2 years warranty

40,990.00 34,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

The 5μH Line Impedance Stabilization Network (LISN) type TBOH01 is needed to measure line noise from DC powered devices. The device has been designed for EMC precompliance tests according to CISPR 25 in the frequency range 150 kHz to 110 MHz developed according to CISPR 25, ISO 7637-2, ISO11452-2 / 4/5 and with restrictions DO-160 / ED-14G. The LISN is looped into the supply line of the DUT (Device-Under-Test). Conducted disturbances that can be found on the supply of the DUT, can be measured via the BNC connector in conjunction with a spectrum analyzer or test receiver. The TBOH01 can also be used to inject interference signals into the supply line of the DUT. Input (connection SOURCE) and output (DUT connection) of the LISN are decoupled via a 5 μH air coil.

Features:

  • Frequency range: 150 kHz – 110 MHz
  • DC-resistance: 40 mΩ
  • Max. Current: 10 A
  • Nominal operating voltage: 0 – 60 V
  • Integrated overvoltage protection

* The operating voltage range is limited to 60V DC for safety reasons. Though the component rating of the LISN is ≥ 200V, the positive supply voltage could accidentally be connected to the negative terminal of the LISN and thereby to the LISN housing. Under this circumstance, a DC voltage > 60V  could cause a lethal electric shock when touching the housing.

VIDEOS

Downloads

Tekbox TBOH01 Datasheet / Manual
