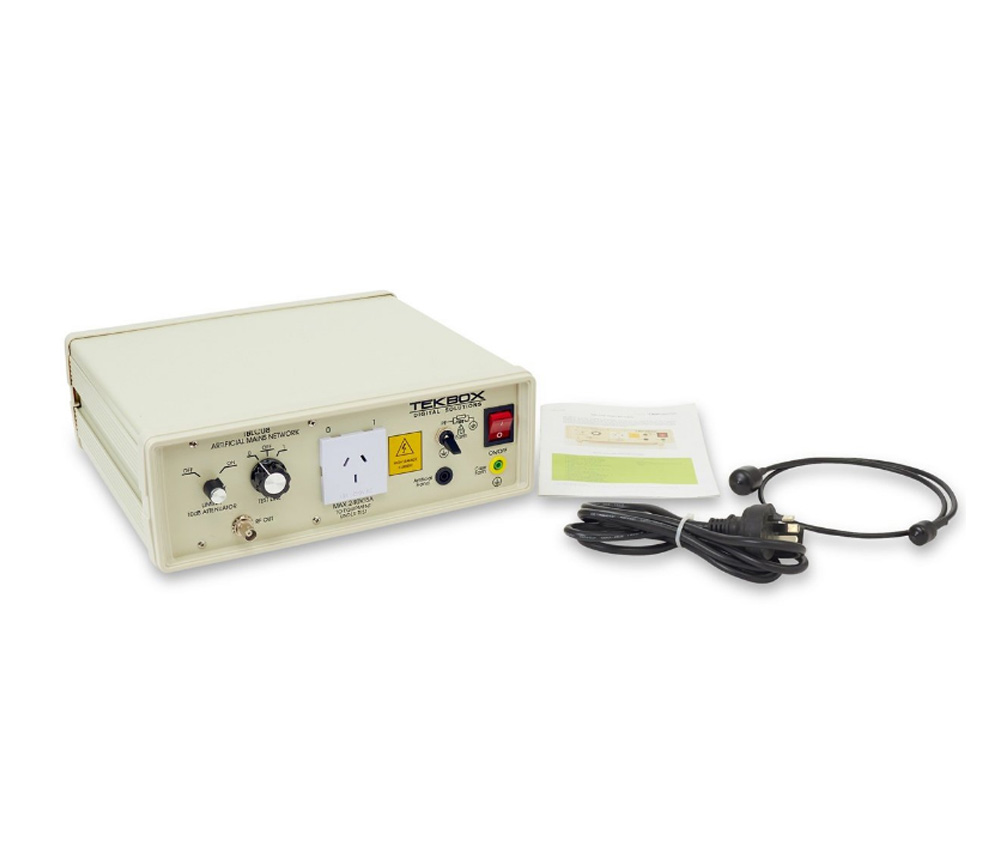

LISN TekBox TBLC08

Code: TBLC08

50 μH two-wire network simulation (V-LISN) for AC voltage devices up to 240 V / 8 A.

2 years warranty

109,890.00 89,990.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

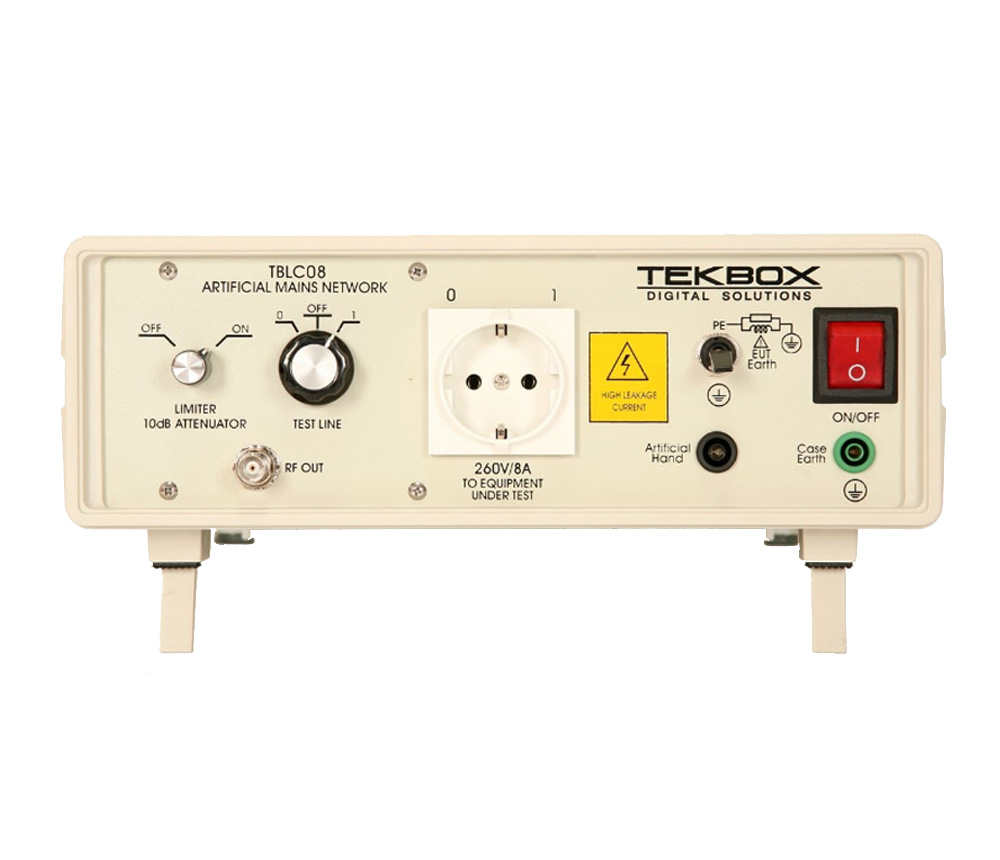

The TBLC08 50uH LISN is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR16 standard.

The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 240V. Conducted noise can be measured on the phase and on the neutral conductor.

The TBLC08 is equipped with a switchable limiter/attenuator and an artificial hand connection. The device is available with country-specific DUT connectors.

Specifications:

  • Frequency range: 9 kHz to 30 MHz
  • Impedance: 50 Ω ║ (50 µH + 5 Ω)
  • Artificial hand: 220 pF + 511 Ω
  • Switchable PE: 50 Ω ║ 50 µH
  • Limiter / attenuator: 150 kHz to 30 MHz; 10 dB
  • Air core inductors
  • Line voltage: max. 240V / 50 – 60 Hz, CAT ‖
  • Max. current: 8A @ 23°C
  • DUT socket: country specific
  • Measurement connector: 50 Ω BNC

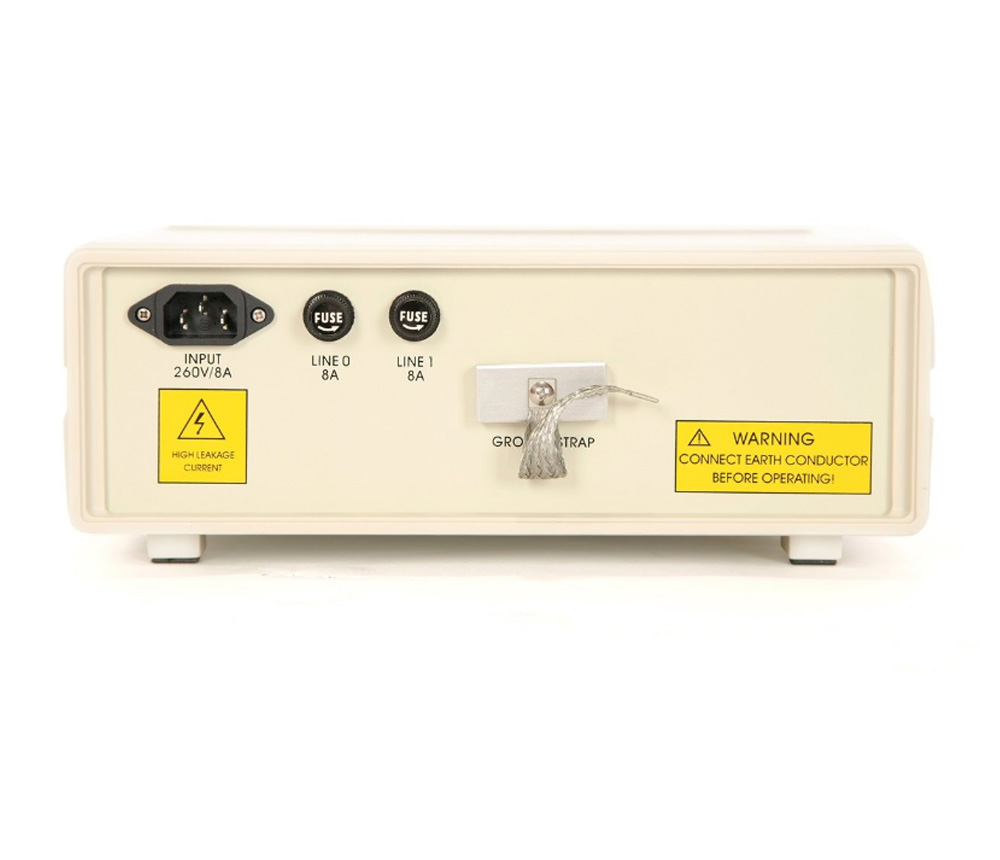

  • Power connector: IEC 60320 C13
  • Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
  • Safety: Safety Class I, IEC 1010-01

APPLICATION

  • EMC pre-compliance testing of conducted noise
