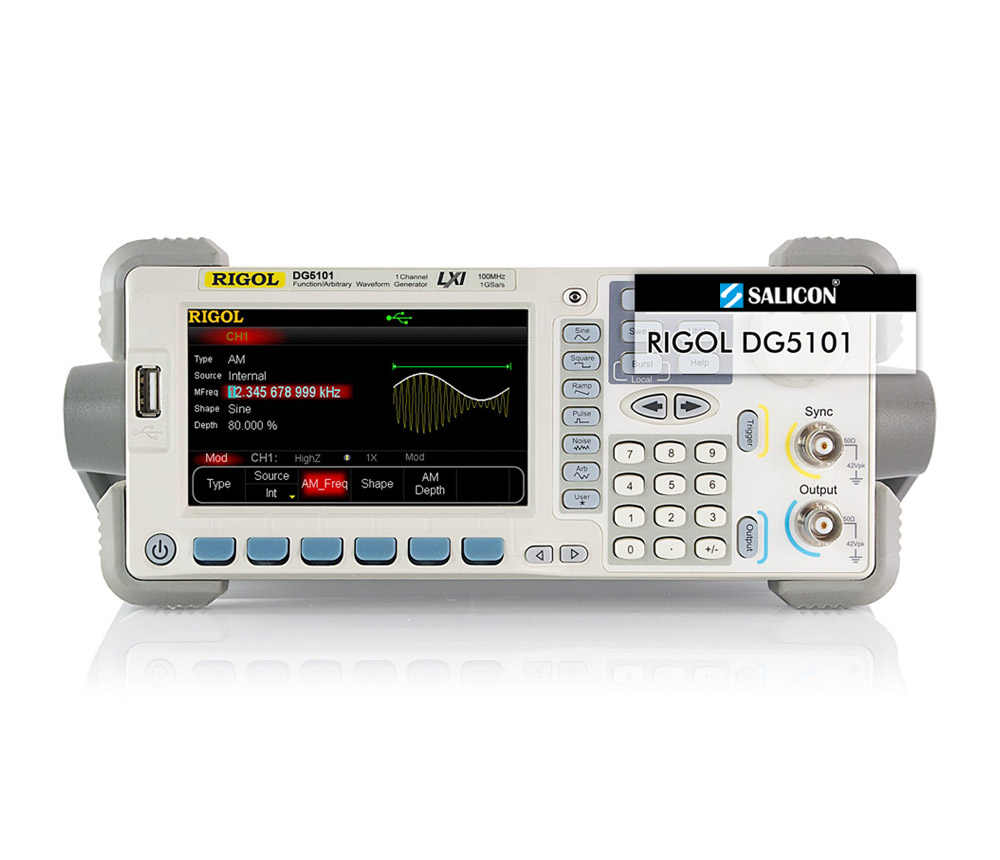

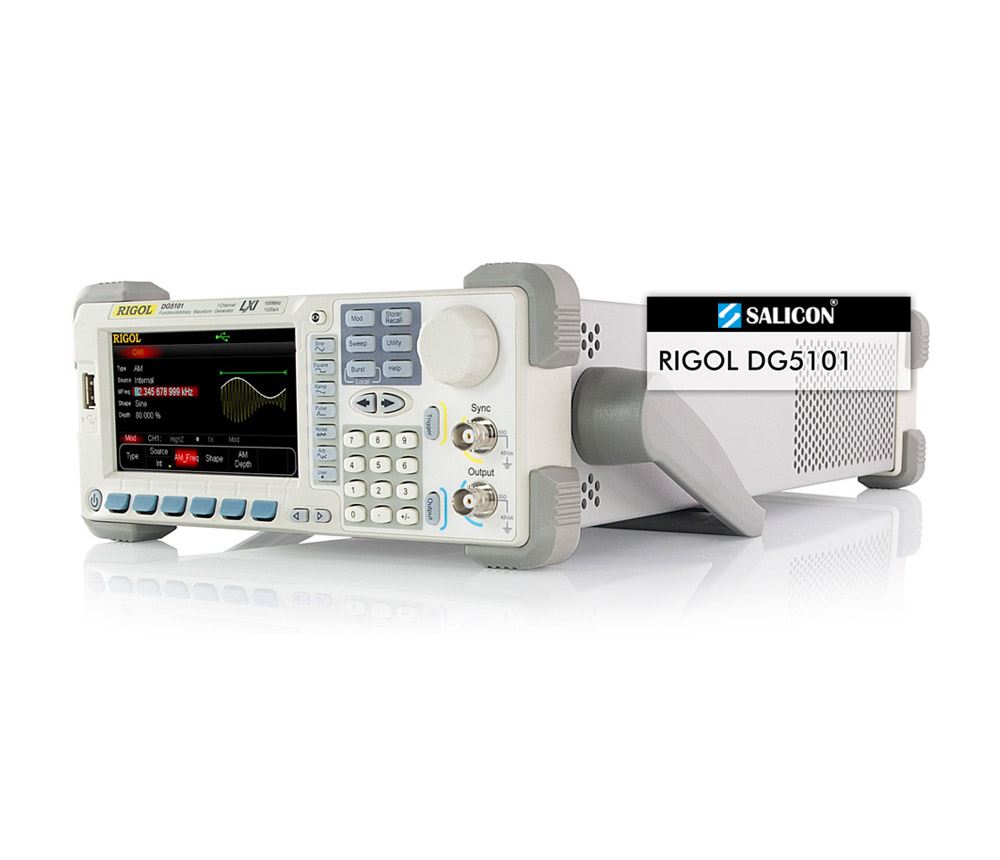

Rigol DG5101

High quality one channel function / arbitrary waveform generator with 100 MHz bandwidth, 1 GSa/s and 128 Mpts memory.

3 years warranty

554,883.00 520,203.00

In Stock 2-3 Weeks

In Stock 2-3 Weeks

Description

The Rigol DG5101 is a Function / Arbitrary Waveform Generator to create high quality signals up to 100 MHz (Sine). Beside the analog output, the device includes an USB-Host- and an USB-device, a RS-232, LAN and a GPIB interface.

The Rigol Function-generators have a sophisticated and easy to use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

Model DG5071 DG5072 DG5101 DG5102 DG5251 DG5252 DG5351 DG5352
Max. Frequency 70 MHz 70 MHz 100 MHz 100 MHz 250 MHz 250 MHz 350 MHz 350 MHz
Max. Sample rate 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s 1 GSa/s
Resolution 1 µHz 1 µHz 1 µHz 1 µHz 1 µHz 1 µHz 1 µHz 1 µHz
Channels 1 2 1 2 1 2 1 2

Special Features

AM Modulation

PWM Modulation

FSK Modulation

IQ Modulation

IQ-Mapping-Editor

IQ-Mapping-Selection

Burst Funktion

Sweep Funktion

Frequency Hopping Software option

Accessories

Downloads

Datasheet


Rigol DG5000 Datasheet

File Size: 1.68 MiB
Release Date: 27.12.2018

Rigol DG5072 Datasheet

File Size: 1.18 MiB
Release Date: 27.12.2018

Manual


Rigol DG5000 Manual

Language: English
Version: UGB07109-1110
File Size: 3.90 MiB
Release Date: 01.02.2014

Rigol DG5000 Programming Guide

Language: English
File Size: 906.61 KiB
Release Date: 27.12.2018

Rigol How To: Instrument Communication VISA / USB

Language: English
File Size: 435.80 KiB
Release Date: 04.08.2010

Software


NI-VISA Runtime Engine 15.0

Version: 15.0
File Size: 83.96 MiB
Release Date: 08.03.2015
O/S: Windows 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

NI-VISA Run-Time Engine 17.0

Version: 17.0
File Size: 123.33 MiB
Release Date: 22.05.2017
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit)

Rigol DG5072 Software

Release Date: 27.12.2018

Rigol DG5101 Software

Release Date: 27.12.2018

Rigol Ultra Sigma Software Download

Language: English
Version: 00.01.06.01
File Size: 521.91 MiB
Release Date: 30.10.2015
O/S: Windows 10 (64/32 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit),
7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Ultrastation Download

Version: 00.01.03.01
File Size: 12.82 MiB
Release Date: 29.11.2013
O/S: Windows 10 (64 Bit), 8.1 (64/32 Bit), 8 (64/32 Bit), 7 (64/32 Bit), Vista (64/32 Bit), XP (64/32 Bit)

Specifications

Generator Function / Waveform Generator Rigol DG5101
Display 4.3″ TFT LCD with 16M true color
Resolution 480 × 272 Pixel

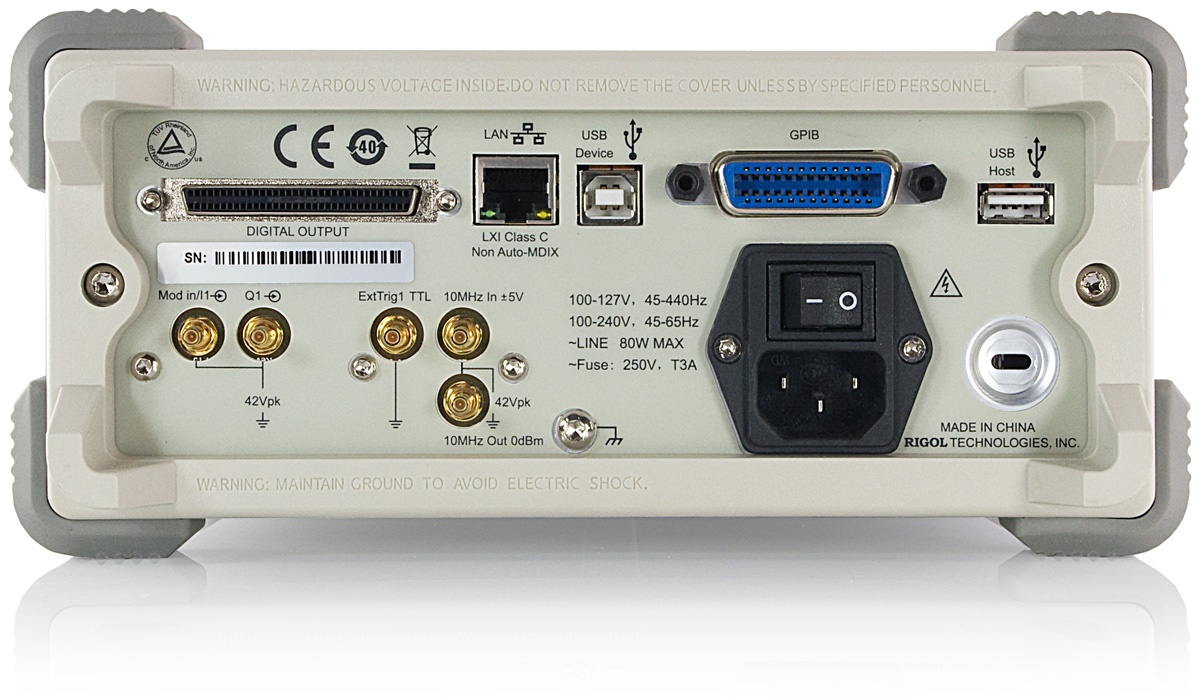

Interfaces
  • USB-Host (for USB stick i.e. to save/load waveforms)
  • USB for a PC connection
  • LAN for network connection
  • GPIB (IEE-488, General Purpose Interface Bus)

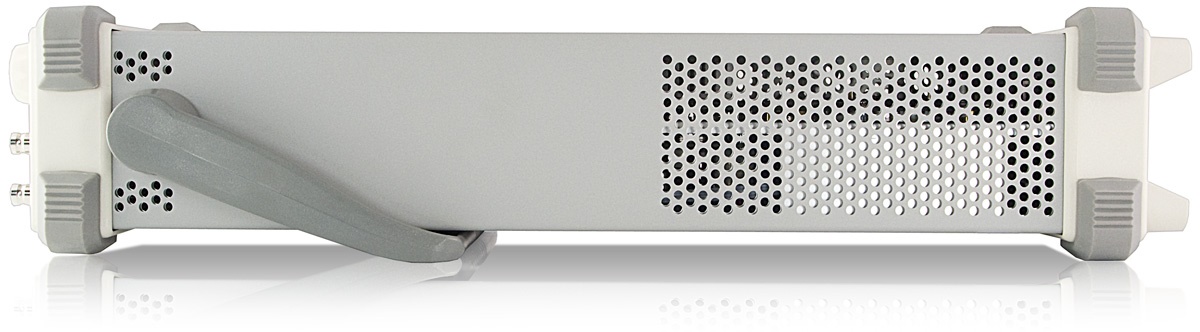

Dimensions (W × H × D) 263 mm × 107 mm × 505 mm

(10.35″ × 4.21″ × 19.88″)

Weight 4.3 kg (9.48 lbs)
Supported operation systems Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)

The complete list of technical specifications can be found in chapter “Specification” of the datasheet.

Function Function / Waveform Generator Rigol DG5101
Channels 1
Signal Output Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise
Vertical Resolution 14 bit
Amplitudes 5 mVpp ~ 10 Vpp (50 Ω)
DC Offset ±5 V (50 Ω)
Sample Rate 1 GSa/s
Frequency Range Sine 1 µHz – 100 MHz
Frequency Range Rectangle 1 µHz – 100 MHz
Frequency Range Pulse 1 µHz – 50 MHz
Frequency Range Ramp 1 µHz – 3 MHz
Frequency Range Arbitrary 1 µHz – 50 MHz
Frequency Range Noise 100 MHz (-3db)
Resolution 1 µHz
